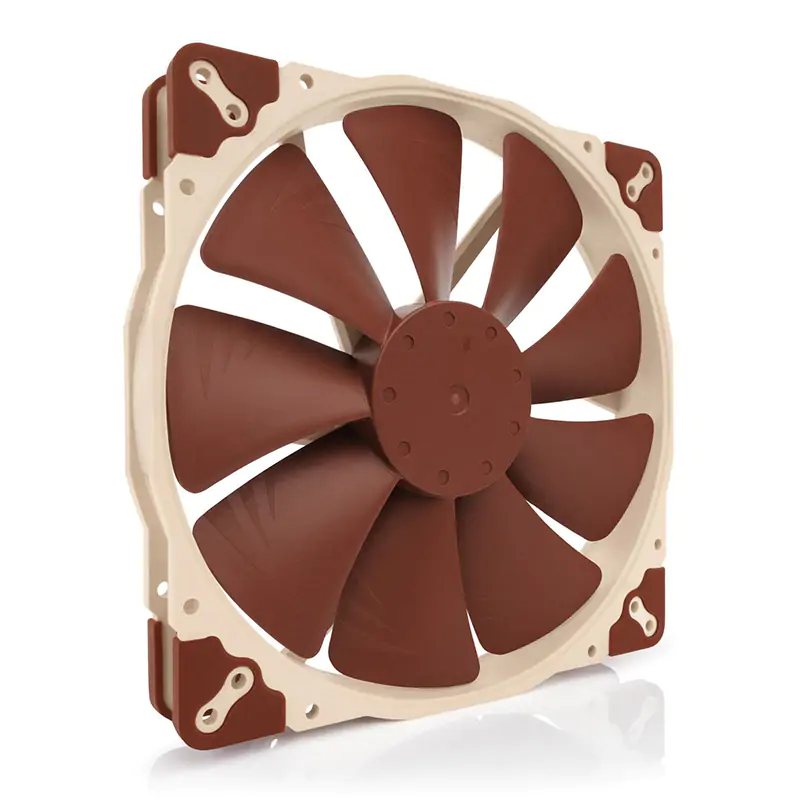

The NF-A20 is a highly optimised, premium quality quiet 200mm fan. Featuring an AAO (Advanced Acoustic Optimisation) standard frame as well as sophisticated aerodynamic design measures such as Flow Acceleration Channels, the NF-A20 brings the renowned quiet cooling performance of Noctuaâ„¢s award-winning A-series to the increasingly popular 20cm form factor. The PWM version uses Noctuaâ„¢s custom designed NE-FD1 IC for fully automatic speed control via 4-pin fan headers, which allows it to strike a perfect balance between quietness and ventilation performance in each given situation. Its superb running smoothness, reference-class SSO2 bearing and Noctuaâ„¢s trusted premium quality make the NF-A20 an elite choice for the highest demands.
Notes and warnings
Please refer to our case compatibility list for detailed compatibility information.
FAN Specification
Size 200x200x30 mm Mounting hole spacing 154x154, 110x180, 170x170 mm Connector 4-pin PWM Bearing SSO2 Blade Geometry A-Series with Flow Acceleration Channels Frame Technology AAO (Advanced Acoustic Optimisation) Rotational Speed (+/- 10%) 800 RPM Rotational Speed with L.N.A. (+/- 10%) 550 RPM Min. Rotational Speed (PWM, +/-20%) 350 RPM Airflow 146,9 m/h Airflow with L.N.A. 100,8 m/h Acoustical Noise 18,1 dB(A) Acoustical Noise with L.N.A. 10,7 dB(A) Static Pressure 1,08 mm H‚‚O Static Pressure with L.N.A. 0,51 mm H‚‚O Max. Input Power 0,96 W Max. Input Current 0,08 A Voltage 12 V Voltage PWM signal 5 V MTTF > 150.000 h
