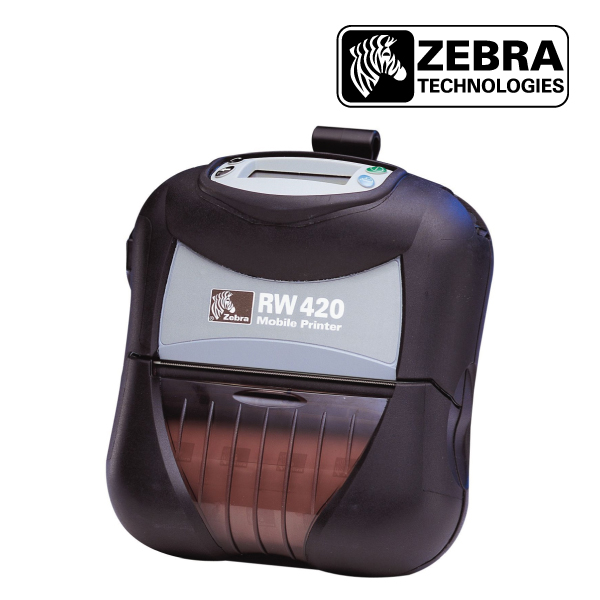

RW SERIES MOBILE PRINTERS Road Warrior! This rough and-tough receipt and limited-label printer is IP54-rated for harsh environments, and offers LCD for battery/ network status, vehicle cradles for convenient on-the-road operation, and card readers for in-the-field payment processing. RW 420 Mobile Printer Print invoices, receipts, labels and more up to 4 inches wide with durable mobile printers that meet IP54 dust and water resistance requirements. Standard Features Print method: Direct thermal Construction: Impact-modified polycarbonate with fused oil-and-abrasion-resistant rubber overmold (six-foot drop protection) Smart battery management (monitors battery for longer life and performance) More Standard Features
4 button angled LCD (standard) Resident scalable fonts Media sensors: Bar, gap Advanced 32 bit architecture for high-speed processing Standard Serial and USB interfaces Programming Language: Native CPCL, ZPL, EPL and XML support(standard) Auto-detect firmware load
|
Download RW 420 Print Station Brochure | Downlaod Link | Printer Specifications | Resolution 203 dpi (8 dots/mm) Memory 8 MB Flash 16 MB RAM Print width 4.09" (104 mm) maximum Print length Maximum print length at least 36" (914 mm) - actual length depends upon total memory usage Print speed 3" (76 mm)/sec | Optional Features | BT 802.11b/g Dual radio Card readers Fanfold slot
| Media Characteristics | Maximum label and liner width 4.12"/105 mm Minimum label and liner width 2"/51 mm Media width 2" x 4.12" Maximum roll diameter 2.25" (57 mm) Core diameter .75" (19 mm) or 1.38" (34.9 mm) Media thickness .002" (.05 mm) to .0063" (0.16 mm) Media types receipt, tag, gap, continuous receipt, continuous, linerless | Operating Characteristics | Operating temperature DT: Operating temperature -4° F (-20° C) to 131° F (55° C) Direct thermal Storage temperatures -22° F (-30° C) to 149° F (65° C) Operating humidity 10-90% non-condensing Storage humidity 10-90% non-condensing Electrical External charging options Shock mounted internal components Standard cable connection: RS-232, RJ-45 10 pin Selectable baud rate: 9600 to 115.2 Kbps Xon/Xoff or hardware flow control (RTS/CTS) USB full speed support, 12 Mbits/second Optional Bluetooth, 802.11g or 802.11b Lithium Ion 4.0 Ah 7.4 V Agency approvals FCC Part 15 Class B Canadian ICES-003 VCCI NOM/NYCE CE compliance (Class B) C-Tick CSA
| Physical Characteristics | Width 6.3" (160 mm) Height 6.9" (175 mm) Depth 3.0" (76 mm) Weight 2.0 lbs (0.907 kg) Orientation Center | PROGRAMMING LANGUAGES | Core programming languages CPCL-native, ZPL, EPL, EPL2, XML | Bar Codes/ Symbologies | Linear Code 39 Code 93 UCC/EAN-128 Code 128 UPC-E UPC-A EAN-8 EAN-13 EAN-14 UPC and EAN 2 or 5 digit extensions Plessey FIM Postnet Interleaved 2-of-5 MSI Codabar 2-dimensional PDF417 Data Matrix MaxiCode RSS / GS1 DataBar family (12 barcodes) QR Code Fonts and Graphics Standard Fonts: 25 bitmapped, 1 smooth, scalable (CG Triumvirate Bold Condensed); Contains UFST from Agfa Monotype Corporation Optional Fonts: downloadable bitmapped and scalable fonts International Character Sets (optional): Chinese 16x16 (trad), 16x16 (simplified), 24x24 (simplified) Japanese 16x16, 24x24 Hebrew/Arabic Supports user-defined fonts and graphics--including custom logos
|
* Specifications are subject to change without notice. * Specifications may vary. * The product picture(s) is only for your reference, it may differ from the actual product.
|
