Adaptec maxCache Plus A Caching and Tiering Solution
Adaptec by PMC's maxCache Plus solution introduces a revolutionary new tiering software for direct-attach-storage data management. Our new tiering solution is a secured (non-opened source) filter driver. The architecture establishes a presence in the management layer of the host server and can manage any underlying hardware. The solution supports any/all block-level storage devices and structures it as storage space, with enhanced granularity of fast/faster/fastest media recognition.
The Series 8 "Q" products are equipped with maxCache Plus, supporting both caching and tiering functionality. This technology allows IT managers, system integrators, and ISV's to garner the fastest performance and best overall value from their storage assets. It provides flexibility to configure any & all storage devices in server environments and allows for the fastest media to be used as storage instead of just cache, maximizing the use of the newest 12Gb/s drives.

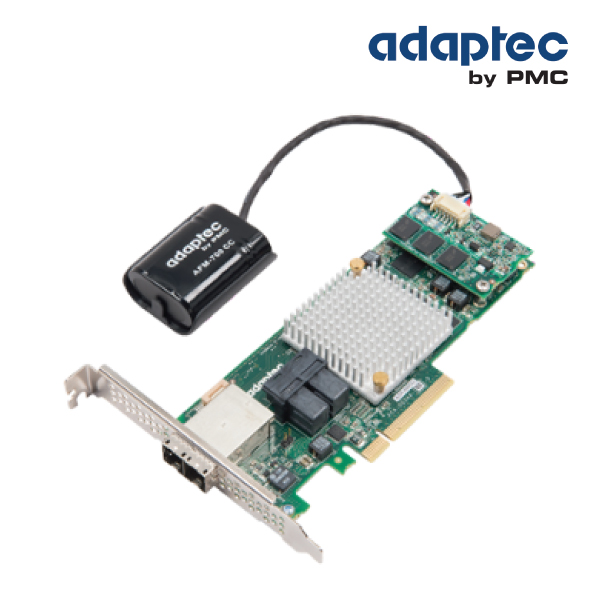

Series 8Q adapters include our third-generation AFM-700 flash-based cache protection module to enable instant battery-free cache protection. Unique for the Adaptec 81605ZQ, flash backup is embedded on the board, eliminating the need for a daughterboard.
All of the "Q" adapters utilize our Zero-Maintenance Cache Protection (ZMCP), which provides full protection to cached data with no monitoring, maintenance, disposal, or replacement costs. ZMCP features SLC based NAND flash memory with super capacitor technology. During a system power loss, the flash memory-based cache protection can preserve data for years.
Advanced Data Protection
Adaptec RAID Code (ARC) delivers maximum reliability with RAID levels 0, 1, 1E, 5, 6, 10, 50 and 60. ARC also offers RAID Level Migration (the ability to easily migrate RAID levels), Online Capacity Expansion (expand capacity without powering down the server), and Copyback Hot Spare (when a failed drive has been replaced, data is automatically copied from the hot spare back to the restored drive).
Adaptec maxView Storage Manager
Adaptec maxView Storage Manager provides the powerful features of Adaptec Storage Manager in an HTML5 web interface that can be viewed in standard desktop or mobile browsers without the need for separate software installation.
|
| Product Data Sheet | Download Link | | Specifications | 'Ports: 12Gb/sec - 8 internal, 8 external
PCIe connector and speed: x8 Gen3
Memory: 1GB, cache protection module (ZMCP): supplied
RAID levels: 0, 1, 10, 1E, 5, 6, 50, 60, hybrid, simple volume, flexconfig
Size: low profile, half length (MD2)
Maximum RAIDs: 64, maximum drives: 256, maximum RAID size: 512TB
IOPs: 800K, MB/sec: 6000+
SSD Caching: yes (maxCache and maxCachePlus) - SSD caching and tiering Uses: high performance RAID, with maxCache and maxCachePlus
Ideal for pure SSD or HDD in large arrays
Add additional performance to HDD arrays by creating large Hybrid Drives and/or adding SSD caching
Add additional drives externally via JBOD
| | All Series 8Q: | 12 Gb/s throughput at each port 16 native SAS/SATA ports in an LP/MD2 form factor PMC 12Gb/s ROC SAS 3.0 interface and PCIe Gen 3 Host Connection Maximum performance for up to 16 SSDs (No expander needed) Preinstalled flash backup ” Adaptec Flash Module (AFM-700) with 2GB NAND flash Flexible Configuration: Auto configuration of Simple Volume and HBA modes ” "set it and forget it" Mini SAS HD connectors and SAS HD cables ” for fit and function in dense server con figurations Support for up to 256 SAS and SATA devices Support for SSD, HDD, Autoloader, RBOD, Tape | | Cables (may need multiples per card) | 'Internal cables to connect ...
directly to sata drives: 2279800-R, 2280000-R, 2279900-R
directly to SAS drives: 2280100-R, 2279600-R
backplane using 8087: 2281200-R, 2279700-R, 2281300-R, 2280200-R
backplane using 8643: 2282200-R, 2282100-R, 2282500-R, 2282800-R
external: 2282600-R, 2280300-R |
* Specifications are subject to change without notice.
* Specifications may vary.
* The product picture(s) is only for your reference, it may differ from the actual product.
 |
