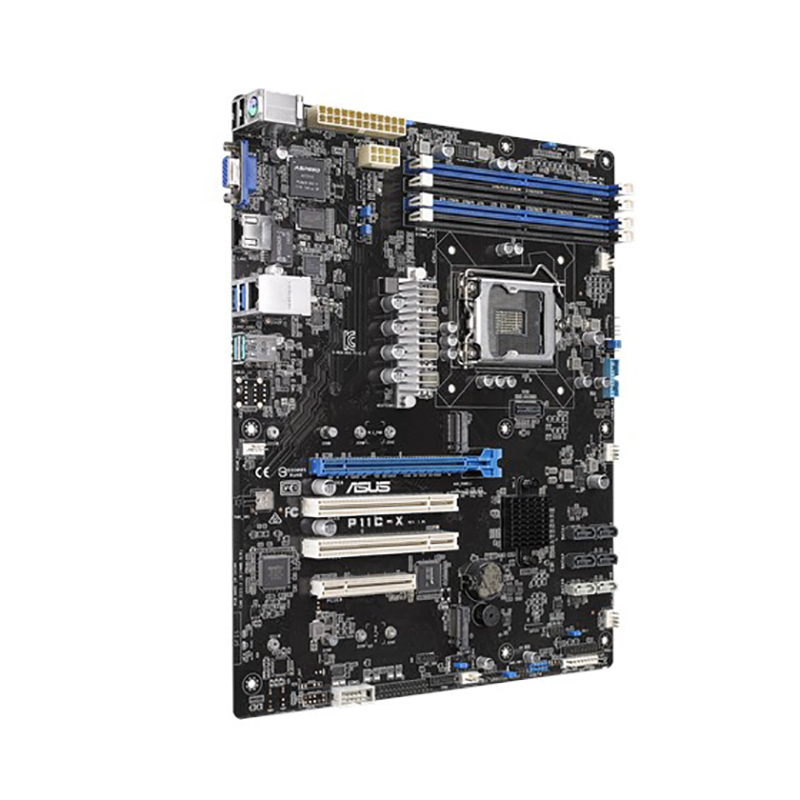

Asus P11C-X Xeon E ATX Server MotherboardSPECIFICATIONS:
PROCESSOR
1 x Socket LGA1151
Intel® Xeon® processor E-2100 family(95W)
Intel® Xeon® processor E-2200 family(95W)
The 8th/9th generation Intel® Core™ i3/Pentium®/Celeron® Processor
*Refer to support page for more information
CORE LOGIC
Intel® C242 Chipset
MEMORY
Total Slots : 4 (2-channel)
Capacity : Maximum up to 128GB UDIMM
Memory Type :
DDR4 2666/2400 UDIMM non ECC and with ECC
Memory Size :
32GB, 16GB, 8GB, 4GB
* Refer to support page for more information
EXPANSION SLOTS
Total Slot : 4
Slot Location 3 : PCI-E x8 (Gen3 X4 Link)
Slot Location 4 : PCI 32bit/33MHz
Slot Location 5 : PCI 32bit/33MHz
Slot Location 6 : PCI-E x16 (Gen3 X16 Link)
Follow SSI Location#
FORM FACTOR
ATX (12"x9.6", 305mm x 244mm)
ASUS FEATURES
STORAGE
SATA Controller :
6 x SATA 6Gb/s ports + 2 x M.2 connector *1
Intel® Rapid Storage Technology Enterprise(RSTe) (For Linux/Windows)
(Support Software RAID 0, 1, 5, 10 )
SAS Controller :
ASUS PIKE II 3008-8i 8-port SAS 12G RAID card
ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card
NETWORKING
1 x Intel® I210AT
1 x i219-LM
GRAPHIC
Aspeed AST2510 with 64MB VRAM
ON BOARD I/O
1 x TPM header
1 x PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector)
1 x USB 3.0 pin header , Up to 2 Devices
2 x USB 2.0 pin header , Up to 3 Devices
6 x Fan Header , 4pin
1 x Chassis Intruder
2 x Front LAN LED
1 x Serial Port Header
1 x LPT
2 x M.2 Connector , NGFF Type : 22110/2280/2260/2242
BACK I/O PORTS
1 x PS/2 Keyboard/ Mouse Port
2 x USB 3.1
2 x USB 3.0
2 x USB 2.0
1 x VGA Port (onboard Aspeed AST2510)
2 x RJ45 LAN Ports
ENVIRONMENT
WEIGHT
ACCESSORIES
Gift Box (1-in-1)
1 x Support DVD
1 x I/O shield
6 x SATA 6G cables
1 x Plate for LGA1151
1 x ASUS Control Center Quick Guide
Bulk Pack (10-in-1)
