Aten 4 Port USB 2.0 DVI KVMP Switch (CS1764AC-AT-U)
Superior video quality – 1920 x 1200
Computer selection via front panel pushbuttons, hotkeys, and mouse
DVI digital and analog monitor support – fully compliant with the DVI specifications
Multiplatform support – Windows, Linux, Mac, and Sun
Specifications
Computer Connections
4
Port Selection
Hotkey, Pushbutton, Mouse

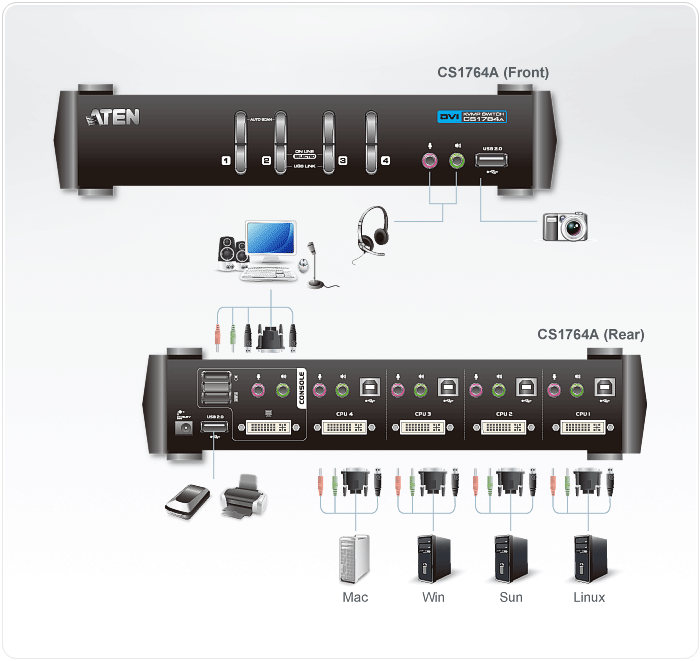

Connectors
Console Ports
2 x USB Type A Female (White; front panel) 1 x DVI-I Female (White) 2 x Mini Stereo Jack Female (Green; 1 x front panel; 1 x rear panel) 2 x Mini Stereo Jack Female (Pink; 1 x front panel; 1 x rear panel)
KVM Ports
4 x USB Type B Female (White) 4 x DVI-I Female (White) 4 x Mini Stereo Jack Female (Green) 4 x Mini Stereo Jack Female (Pink)
Power
1 x DC Jack
USB Hub
USB Hub
Switches
Selected
4 x Pushbutton
LEDs
USB Link
4 (Green)
On Line /Selected
4 (Orange)
Emulation
Keyboard / Mouse
USB
Video
1920 x 1200@ 60Hz; DDC2B
Scan Interval
1–99 Seconds (Default: 5 sec.)
Power Consumption
DC5.3V:4.8W:38BTU
Environmental
Operating Temperature
0 - 50°C
Storage Temperature
-20 - 60°C
Humidity
0-80% RH, Non-condensing
Physical Properties
Housing
Metal
Weight
0.94 kg ( 2.07 lb )
Dimensions (L x W x H)
27.00 x 8.80 x 5.55 cm (10.63 x 3.46 x 2.19 in.)
Note
For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
