Low power consumption in idle mode and low traffic conditions
No external power adapter required
Supports Windows 2000/XP/Vista/7/8/8.1, Linux and Mac OS X 10.x

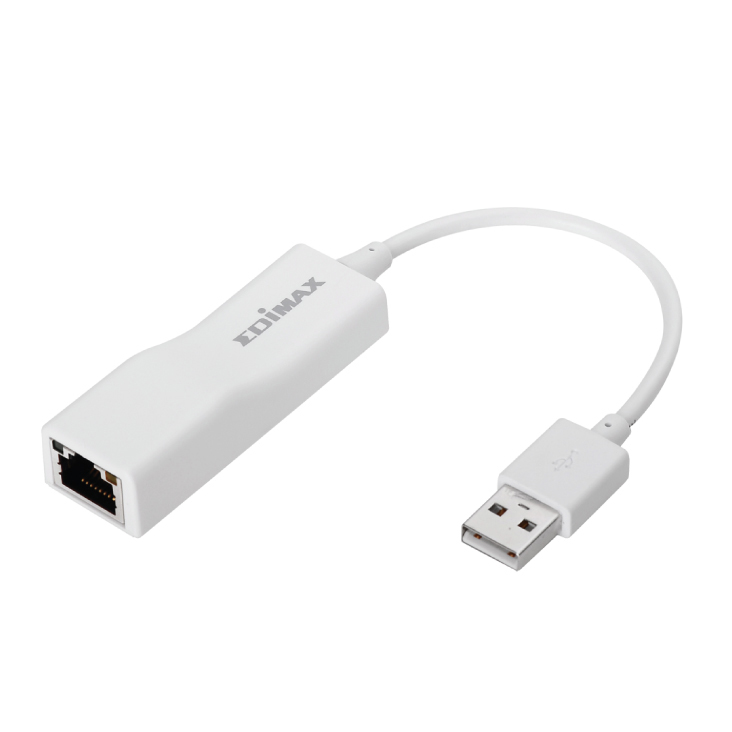

The Edimax EU-4208 is a compact USB Fast Ethernet adapter for an Ultrabook or Macbook Air with no Ethernet ports, or for desktop and notebooks that need an additional Fast Ethernet port. It™s an ideal portable accessory or replacement network adapter, and with full 10/100Mbps Fast Ethernet USB 2.0 performance, it™s faster than most wireless connections. Connect to a 10/100Mbps network from a USB enabled desktop or notebook, save costs and replace an old or broken internal network card, or use it as an additional network interface for high-speed peer-to-peer file sharing. No external power adapter is required and the green, energy-saving design minimizes power usage when the device is idle.

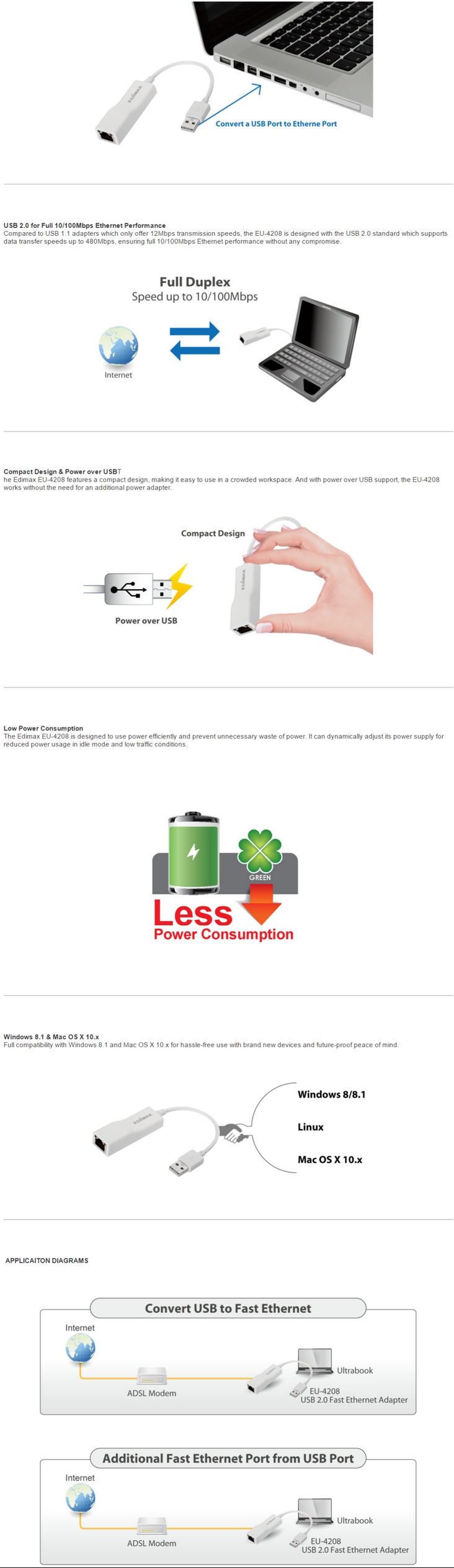

Ideal for Ultrabooks Designed to give Fast Ethernet connectivity to your Ultrabook, Macbook Air or any computer without an Ethernet port. Simply plug the adapter into a USB 2.0 port and instantly utilize a stable 10/100Mbps Ethernet connection. The EU-4208 is also a quick and convenient way to add Ethernet connectivity to a desktop computer without the hassle of internal installation. It™s backward compatible with USB 1.1 and works with Microsoft Windows 2000/XP/Vista/7/8/8.1, Linux and Mac OS X 10.x.
Hardware
1 x USB 2.0 (USB 1.1 backward compatible)
1 x RJ-45 10/100Mbps LAN port
Power and link LED indicators
Standards
IEEE 802.3
IEEE 802.3u
RAM
Embedded 20KB SRAM for RX and 20KB SRAM for TX packet buffering
Power Consumption
600mW (full loading)
46.1mW (idle with remote wake up)
0.7mW (idle without remote wake up)
Power Management
Idle mode (remote wake up enabled)
Idle mode (remote wake up disabled)
Operating Temperature
0-70 degrees Celsius
Operating System
Windows 2000, XP, Vista, 7, 8, 8.1
Linux
Mac OS X 10.x
Dimensions & Weight
66 x 22 x 15 mm (L x W x H)
23.5g
Certification
FCC, CE
PACKAGE CONTENTS
USB 2.0 Fast Ethernet Adapter x 1
Quick installation guide x 1
CD with setup wizard, user manual & multilanguage QIG x 1
* Specifications are subject to change without notice. * Specifications may vary. * The product picture(s) is only for your reference, it may differ from the actual product.
