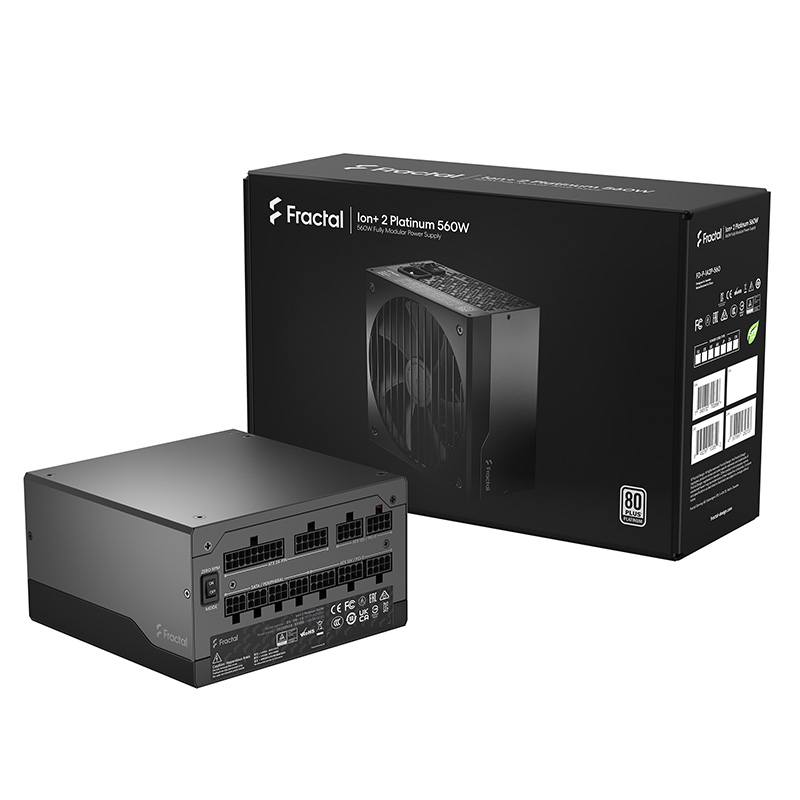

Fractal Design Ion+ 2 Platinum 560W 80+ Platinum Fully Modular ATX Power Supply (FD-P-IA2P-560-AU)

Modular cables

Fully modular

Fan type

140 mm FDB bearing Fractal Design Dynamic series fan

Maximum operating temperature (full load)

50°C

Semi-passive operation

Yes, user selectable (Zero RPM)

Capacitors

Japanese

Life expectancy

100,000 hours

PSU specification compliance

ATX12V 2.52; EPS12V 2.92

Cable type

Modular 24-pin cable: Black UltraFlex™ wires in braided sleeve Other modular cables: Flat black UltraFlex™ wires

Input voltage

100-240V C

Input frequency

50-60 Hz

Input current

10A/5A

Protection features

Over voltage protection, Under voltage protection, Overpower protection, Short circuit protection, Over current protection, Over temperature protection

Standby efficiency

ErP 2013 (<0.45W @230. VAC, 45 mA load on +5Vsb)

Sleep state compliance

C6/C7

Approvals & certifications

CE, FCC, TUV, cTUVus, EAC, RCM, CCC, BSMI, CB, KC+KCC

ATX 24-pin

1

ATX12V 4+4 pin / EPS12V 8-pin

2

PCIe 6+2 pin

4

SATA

6

Peripheral

4

ATX 20+4 pin

600 mm

ATX 12V 4+4 pin

700 mm

EPS12V 8-pin

600 mm

PCIe 6+2 pin

550 + 120 mm

SATA

400+150+150+150 mm & 650+150mm

Peripheral

400+150+150+150 mm

.3V

20A

5V

20A

3.3V and 5V combined

110W

12V

46.6A

-12V

0.3A

+5Vsb

3A

Total Power

560W

Package contents

Power Supply, Power Supply storage bag, Modular cable kit in storage bag, User guide, AC Power cord, Velcro cable ties and mounting screw pack, Included in packaging is a red note as well

Unit dimensions (LxWxH)

150 x 150 x 86 mm

Net weight (unit only)

2.24 kg

Package dimensions (LxWxH)

325 x 210 x 110 mm

Package weight

2.76 kg
