Boost Clock* : up to 2324 MHz (Reference card: 2310 MHz)
Game Clock* : up to 2116 MHz (Reference card: 2100 MHz)
Stream Processors

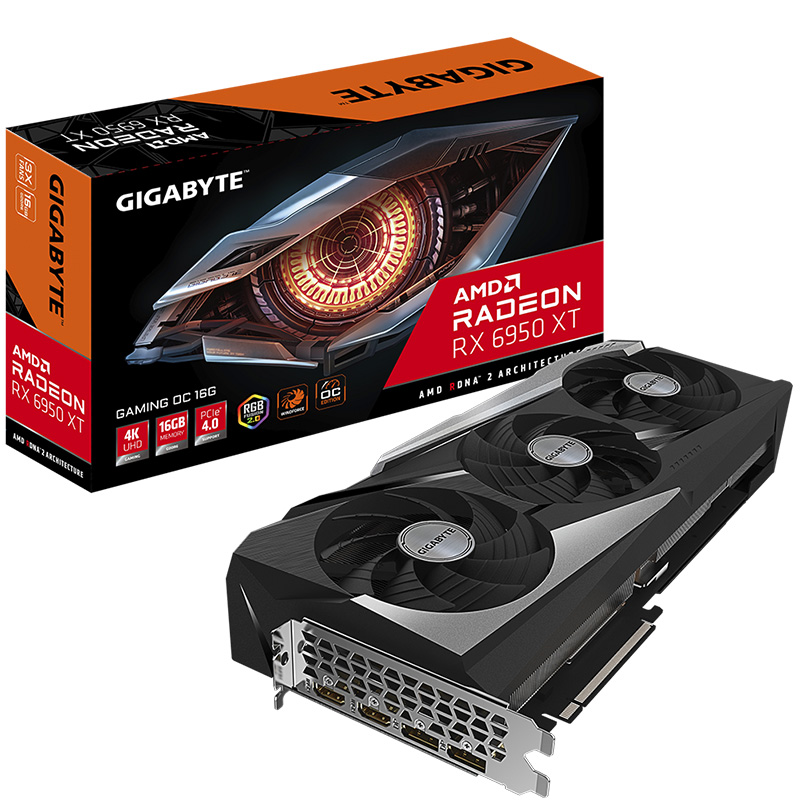

Radeon™ RX 6950 XT GAMING OC 16G
Process Technology
5120
Memory Clock
7 nm
Memory Size
18000 MHz
Memory Type
16 GB
Memory Bus
256 bit
Memory Bandwidth (GB/sec)
576 GB/s
Card Bus
PCI-E 4.0
Digital max resolution
7680x4320
Multi-view
4
Card size
L=332 W=143 H=57 mm
PCB Form
ATX
DirectX
12 Ultimate
OpenGL
4.6
Recommended PSU
850W
Power Connectors
8 pin*3
Output
DisplayPort 1.4a *2
HDMI 2.1 *2
Accessories
Quick guide
Note
* “Boost Clock” is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.
* “Game Clock” is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.
