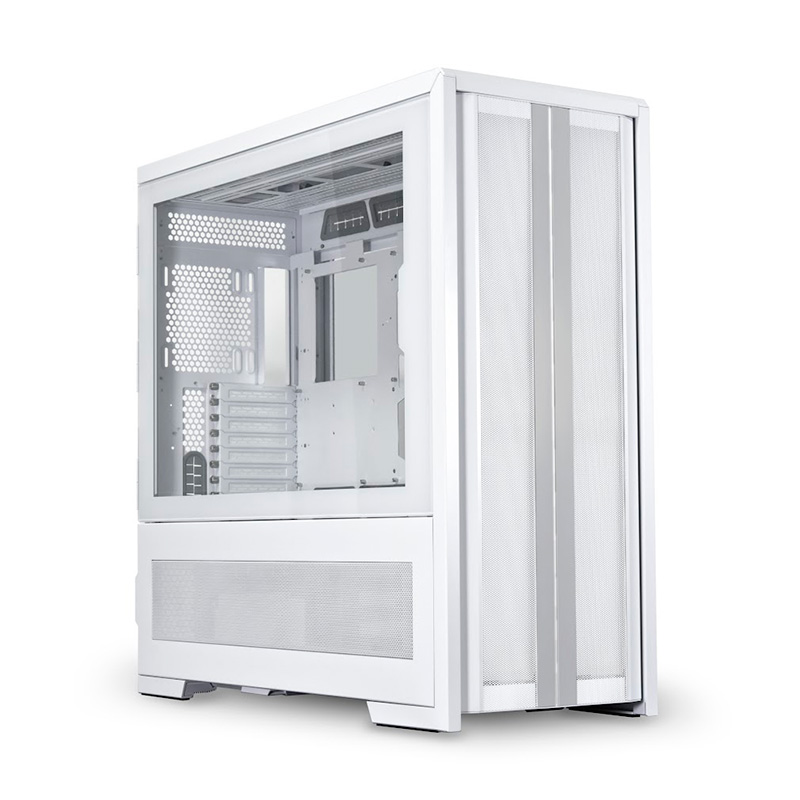

Lian Li V3000 Plus ARGB TG Full Tower E-ATX Case - White (V3000PW)

Color

White

Materials

Aluminum
Steel
4.0mm Tempered Glass (right side)
4.0mm Tempered Glass (left side)

Motherboard support

Standard
EEB/E-ATX/ATX/Micro-ATX/Mini-ITX
Rotated
EEB/E-ATX/ATX/Micro-ATX/Mini-ITX
Dual System
System 1 – EEB/E-ATX/ATX/Micro-ATX/Mini-ITX
System 2 – Mini-ITX

Fan support

Standard
Front：4 x 120mm or   3 x 140mm
Top：4 x 120mm or   3 x 140mm or 2 x 200mm
Above PSU Chamber：3 x 120mm or 3 x 140mm
Bottom side：4 x 120mm or 3 x 140mm
Rear: 1 x 120mm or 1 x 140mm
Rotated
Front：4 x 120mm or   3 x 140mm
Top：4 x 120mm or   3 x 140mm or 2 x 200mm
Bottom side：4 x 120mm or 3 x 140mm
Rear: 3 x 120mm or 2 x 140mm
Above PSU Chamber: 1 x 120mm or 1 x 140mm
Dual System
Front：4 x 120mm or   3 x 140mm
Top：4 x 120mm or   3 x 140mm or 2 x 200mm
Above PSU Chamber：2 x 120mm or 2 x 140mm
Bottom side：4 x 120mm or 3 x 140mm (without System 2 GPU)
Rear: 1 x 120mm or 1 x 140mm

Radiator support

Standard
Front：480mm or   420mm
Top：480mm or   420mm
Above PSU Chamber：360mm or 420mm
Bottom side：480mm or 420mm
Rotated
Front：480mm or   420mm
Top：480mm or   420mm
Bottom side：480mm or 420mm
Rear: 360mm or 280mm
Dual System
Front：480mm or   420mm
Top：480mm
Above PSU Chamber：240mm or 280mm
Bottom side：480mm or 420mm (without System 2 GPU)

PSU support

System 1 – ATX (Max 220mm)
System 2 – SFX-L/SFX

GPU length clearance

Standard
Max 589mm
Rotated
Max 358mm
Dual System
System 1 – Max 589mm
System 2 – Max 320mm (Width max 125mm)

CPU cooler height clearance

System 1 – Max 198mm
System 2 – Max 80mm

Drive support

Drive Cage：8 × 2.5” SSD or 8 × 3.5” HDD
Side：4 × 2.5” SSD
Behind MB tray: 4 × 2.5” SSD

Expansion slot

System 1 – 8
System 2 – 3 (at PSU shroud, with optional riser cable)

I/O ports

System 1
1 x Power Button
1 x Reset Button
1 x Light Color Button (C)
1 x Light Mode Button (M)
2 x USB 3.0
1 x USB Type C
1 x Audio

System 2
1 x Power Button
1 x Reset Button
2 x USB 3.0
1 x USB Type C 1 x Audio

Dust filter

1 x Bottom
