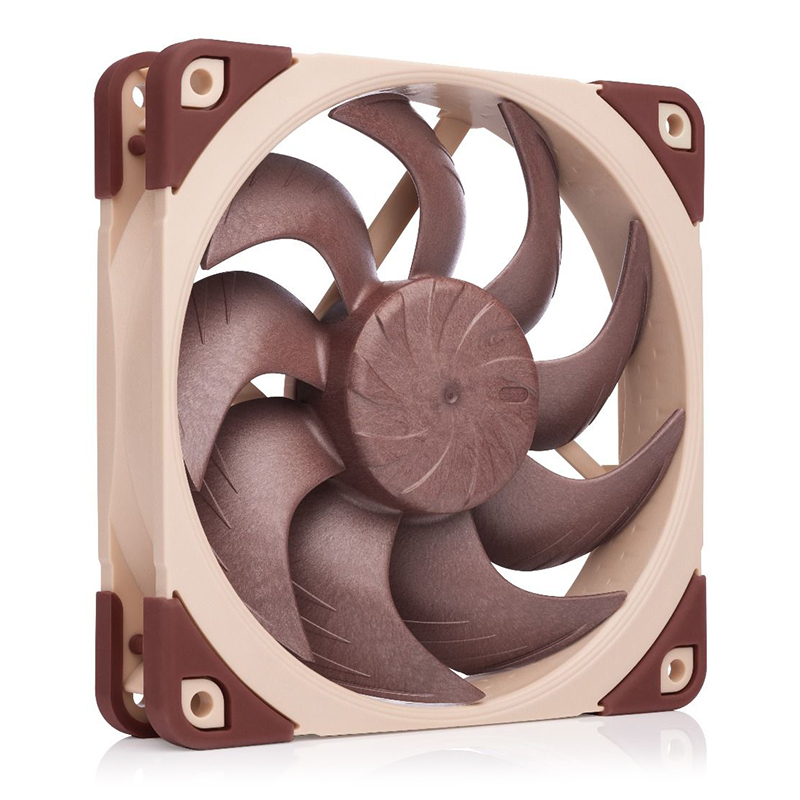

SPECIFICATIONS:
Size
120x120x25 mm
Mounting hole spacing
105x105 mm
Connector & pin-configuration
4-pin PWM
Cable length
20cm + 30cm NA-EC1 extension cable
Bearing
SSO2
Blade geometry
Progressive-Bend impeller
Frame technology
AAO (Advanced Acoustic Optimisation)
Material
Sterrox® LCP
Rotational speed (+/- 10%)
1100 RPM
Rotational speed with L.N.A. (+/- 10%)
850 RPM
Airflow
66.3 m/h
Airflow with L.N.A.
45.2 m/h
Acoustical noise
11.8 dB(A)
Acoustical noise with L.N.A.
7.8 dB(A)
Static pressure
1.08 mm H₂O
Static pressure with L.N.A.
0.56 mm H₂O
Input power (max.)
1.8 W
Max. input current
0.15 A
Operating voltage
12 V
MTTF
> 150,000 h
Scope of delivery
NA-RC8 Low-Noise Adaptor (L.N.A.)
NA-YC1 4-pin PWM splitter cable
NA-EC1 30cm extension cable
4x NA-AV2 anti-vibration mounts
NA-AVG1 anti-vibration gasket for water cooling radiators
Fan screws
