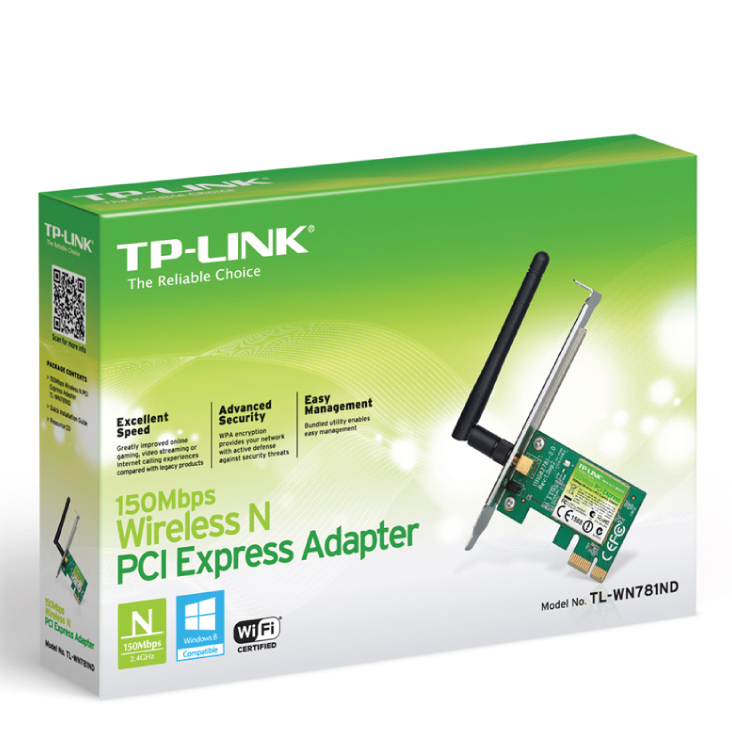

150Mbps Wireless N PCI Express AdapterTL-WN781ND
Up to 150Mbps wireless transmission rate
Provides PCI Express interface
Advanced secure connection with WPA/WPA2 encryption
Bundled utility enables easy management
What This Product Does
TP-LINK TL-WN781ND is designed to provide a complete end-to-end wireless performance from the server or server backbone to the switch infrastructure and down through to the desktop with the PCI Express connector. TL-WN781ND Wireless N PCI Express(x1) Adapter provides a wider compatibility, fitting with any standard PCI Express slot, x1, x2, x8, or x16. Compared with standard PCI network cards, it offers increased bandwidth, reliability and more functionality, allowing you to enjoy a fast and advanced connection, such as downloading, making internet call and video streaming.
Wireless N - Speed & Range
Complying with the IEEE 802.11n standard, TL-WN781ND can easily establish a wireless network and get up to 9X the speed and 4X the range of conventional 11g products. Compared with legacy 54M products, TL-WN781ND delivers performance enhancements, allowing you to have a more joyful surfing experience, including sharing files, watching streaming media.
WPA / WPA2 Encryptions
WPA/WPA2 encryption standards ensure your wireless connection is safe from intruders.
The antenna can be replaced with diverse antennas to show even greater flexibility and wider wireless coverage.
|Dimensions (W X D X H)||4.8 x 3.1 x 0.8in. (120.8 x 78.5 x 21.5mm)|
|Antenna Type||Detachable Omni Directional (RP-SMA)|
|Wireless Standards||IEEE 802.11n, IEEE 802.11g, IEEE 802.11b|
|Signal Rate||11n: Up to 150Mbps(dynamic)|
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
|Reception Sensitivity||130M: -68dBm@10% PER|
108M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -90dBm@8% PER
|Transmit Power||<20dbm(eirp)< td="">|
|Wireless Modes||Ad-Hoc / Infrastructure mode|
|Wireless Security||Support 64/128 bit WEP, WPA-PSK/WPA2-PSK|
|Modulation Technology||DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM|
|Certification||CE, FCC, RoHS|
|Package Contents||Wireless Adapter|
Detachable Omni directional antenna
Quick Installation Guide
|System Requirements||Windows 8.1/8(32/64bits), Windows 7(32/64bits)|
|Environment||Operating Temperature: 0ƒ~40ƒ (32‰~104‰)|
Storage Temperature: -40ƒ~70ƒ (-40‰~158‰)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
* Specifications are subject to change without notice.
* Specifications may vary.
* The product picture(s) is only for your reference, it may differ from the actual product.
