Product condition:
OPENED BOX
This item is in excellent, new or like-new condition with no or minimal wear, Depending on the manufacturer or supplier, this item is either covered by original manufacturer’s warranty or three months standard warranty provided by PCByte. This item may be missing the original packaging or protective wrapping, or may be in the original packaging but not sealed, but we guarantee the item is well-packed with sufficient protection during order collection or delivery. This item may be missing original or minor accessories but we will provide necessary components to make sure the major element(s) is/are fully functional.

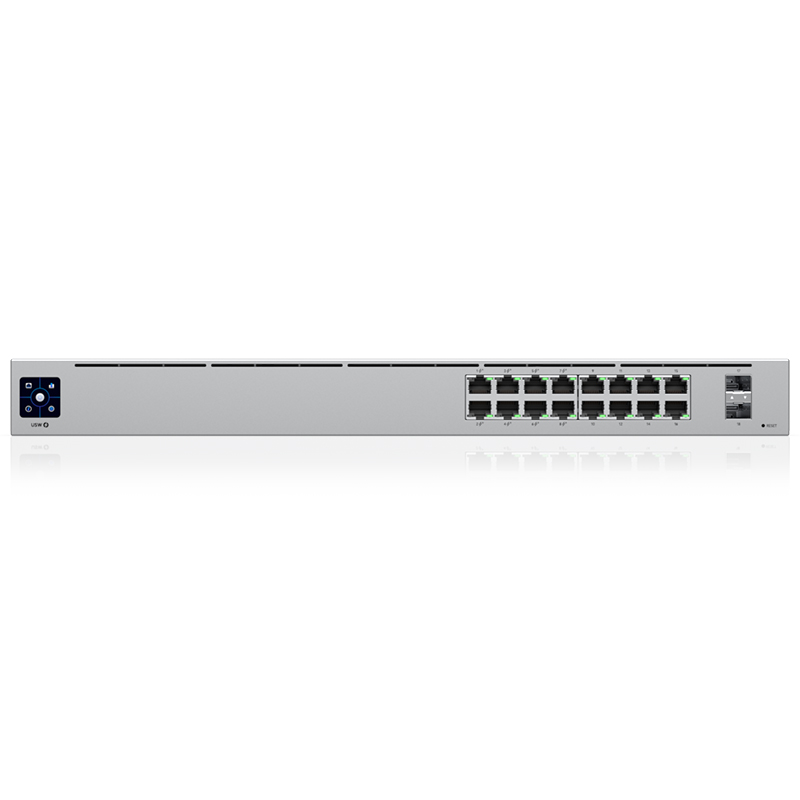

SPECIFICATIONS:
OVERVIEW
Dimensions
442 x 200 x 44 mm (17.4 x 7.9 x 1.7")
Port Layout
1 GbE RJ45: 16 (8 PoE+) (1G/100M/10M)
1G SFP: 2 (1G)
Max. PoE Output
Up to PoE+
Total PoE Availability
42W
Form Factor
Rack mount (1U)
PERFORMANCE
Switching Capacity
36 Gbps
Total Non-Blocking Throughput
18 Gbps
Forwarding Rate
27 Mpps
Supported VLANs
1,000
MAC Address Table Size
8,000
Packet Buffer Size
0.5 MB
Access Lists
IPv4: 128
MAC: 128
LAYER 2 FEATURES
LACP Port Aggregation
✓
STP & RSTP
✓
Advanced IGMP Configuration (Querier, Fast Leave, Router Port)
✓
IGMP Snooping
✓
802.1X Control
✓
MAC-Based ACLs & Device Isolation
✓
DHCP Snooping & Guarding
✓
Egress Rate Limit
✓
Flow Control
✓
Storm Control
✓
Multicast & Broadcast Rate Limiting
✓
MAC Address Blocking
✓
IP-Based ACLs & Network Isolation
✓
MAC-Based Port Restriction
✓
Port Isolation
✓
Port Mirroring
✓
Jumbo Frames
✓
LLDP-MED
✓
Voice VLAN
✓
Loop Protection
✓
HARDWARE
PoE Ports
PoE+: 8
Max. PoE Wattage per Port by PSE
PoE: 15.4W
PoE+: 32W
Max. Power Consumption
18W (Excluding PoE Output)
60W (Including PoE Output)
Power Method
Universal input, 100—240V AC, 50/60 Hz
Power Input Method
AC input
Power Supply
AC/DC, internal, 60W
Supported Voltage Range
100—240V AC
Management
Ethernet AR
Heat Dissipation (Excluding PoE Output)
61.416 BTU/hr
Weight
Without mounting brackets: 2.8 kg (6.2 lb) With mounting brackets 2.9 kg (6.4 lb)
