GENERAL SPECIFICATIONS |
|

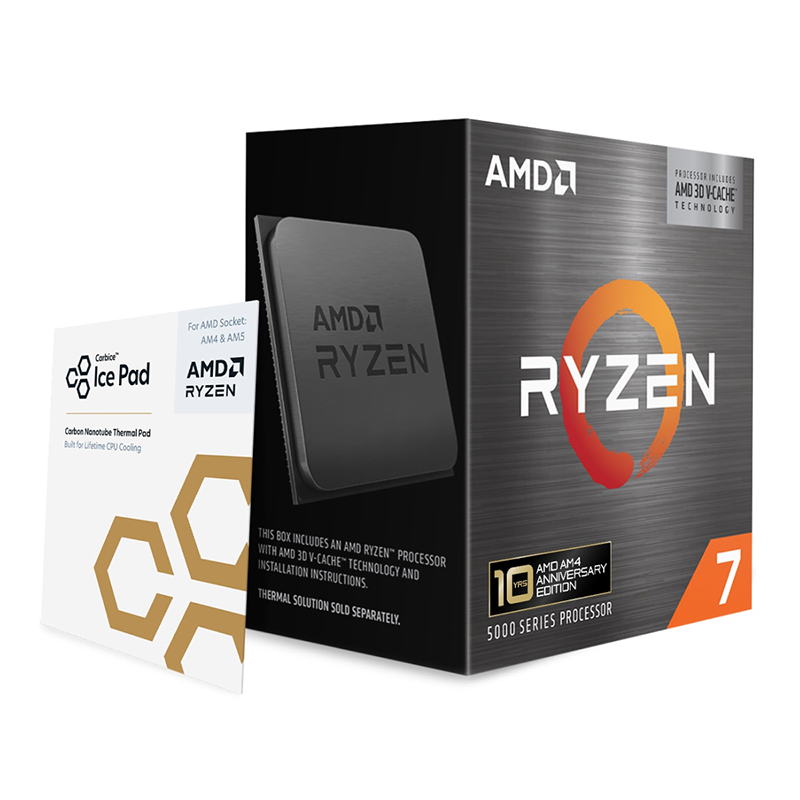

Name | AMD Ryzenâ„¢ 7 5800X3D |
Family | Ryzen |
Series | Ryzen 5000 Series |
Form Factor | Desktops , Boxed Processor |
Former Codename | Vermeer |
Processor Architecture | Zen 3 |
# of CPU Cores | 8 |
Multithreading (SMT) | Yes |
# of Threads | 16 |
Max. Boost Clock | Up to 4.5 GHz |
Base Clock | 3.4 GHz |
L1 Cache | 512 KB |
L2 Cache | 4 MB |
L3 Cache | 96 MB |
Default TDP | 105W |
Processor Technology for CPU Cores | TSMC 7nm FinFET |
Processor Technology for I/O Die | 12nm (Globalfoundries) |
CPU Compute Die (CCD) Size | 74mm² |
I/O Die (IOD) Size | 125mm² |
Package Die Count | 2 |
CPU Socket | AM4 |
Supporting Chipsets | X570 , X470 , B550 , B450 , A520 |
CPU Boost Technology | Precision Boost 2 |
Instruction Set | x86-64 |
Supported Extensions | AES , AMD-V , AVX , AVX2 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64 |
Thermal Solution (PIB) | Not Included |
Recommended Cooler | Liquid cooler recommended for optimal performance |
Max. Operating Temperature (Tjmax) | 90°C |
*OS Support | Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit |
CONNECTIVITY |
|
Native USB 3.2 Gen 2 (10Gbps) | 4 |
Native USB 3.2 Gen 1 (5Gbps) | 0 |
Native USB 2.0 (480Mbps) | 0 |
Native SATA Ports | 2 |
PCI Express® Version | PCIe® 4.0 |
Native PCIe® Lanes (Total/Usable) | 24 , 20 |
Additional Usable PCIe Lanes from Motherboard | X570 16x Gen 4 X470 2x Gen 3, 8x Gen 2 |
NVMe Support | Boot , RAID0 , RAID1 , RAID10 |
System Memory Type | DDR4 |
Memory Channels | 2 |
Max. Memory | 128 GB |
System Memory Subtype | UDIMM |
Max Memory Speed | 2x1R DDR4-3200 2x2R DDR4-3200 4x1R DDR4-2933 4x2R DDR4-2667 |
ECC Support | Yes (Requires mobo support) |
GRAPHICS CAPABILITIES |
|
Graphics Model | Discrete Graphics Card Required |
KEY FEATURES |
|
Supported Technologies | AMD 3D V-Cache™ Technology , Windows® 11 Gaming , AMD Ryzen™ VR-Ready Premium |
