GENERAL SPECIFICATIONS |
|

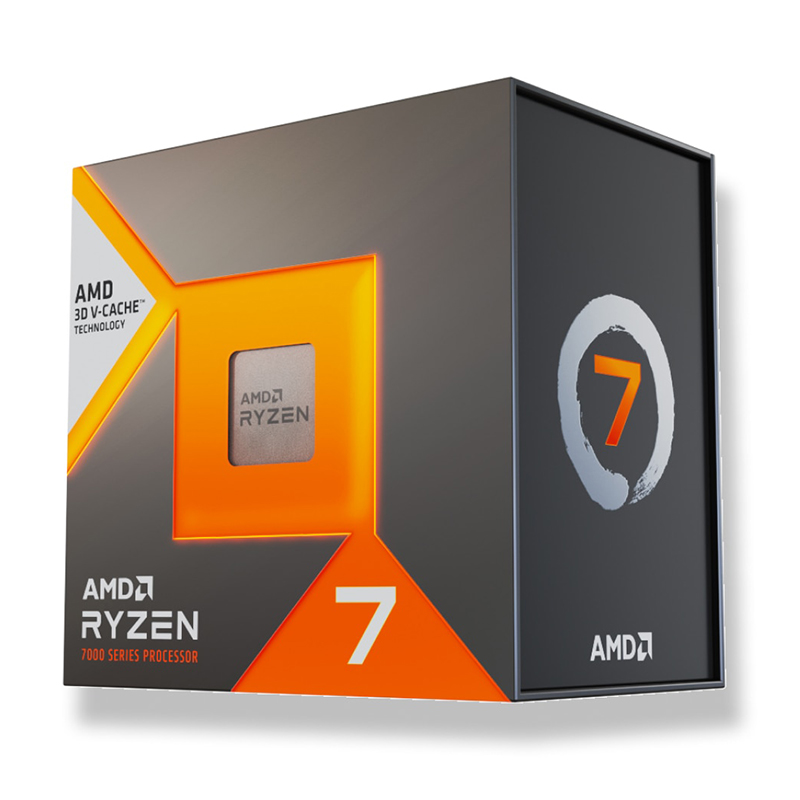

Name | AMD Ryzenâ„¢ 7 7700X3D |
Family | Ryzen |
Series | Ryzen 7000 Series |
Form Factor | Desktops , Boxed Processor |
Market Segment | Enthusiast Desktop |
Former Codename | Raphael AM5 |
Processor Architecture | Zen 4 |
# of CPU Cores | 8 |
Multithreading (SMT) | Yes |
# of Threads | 16 |
Max. Boost Clock | Up to 4.5 GHz |
Base Clock | 4 GHz |
L1 Cache | 512 KB |
L2 Cache | 8 MB |
L3 Cache | 96 MB |
Default TDP | 120W |
Processor Technology for CPU Cores | TSMC 5nm FinFET |
Processor Technology for I/O Die | TSMC 6nm FinFET |
CPU Compute Die (CCD) Size | 71mm² |
I/O Die (IOD) Size | 122mm² |
Package Die Count | 2 |
AMD EXPOâ„¢ Memory Overclocking Technology | Yes |
Precision Boost Overdrive | Yes |
Curve Optimizer Voltage Offsets | Yes |
AMD Ryzenâ„¢ Master Support | Yes |
CPU Socket | AM5 |
Supporting Chipsets | A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850 |
CPU Boost Technology | Precision Boost 2 |
Instruction Set | x86-64 |
Supported Extensions | AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE2 , SSE4.2 , SSE4A , SSE4.1 , SSE3 , SSSE3 , SSE , x86-64 |
Thermal Solution (PIB) | Not Included |
Recommended Cooler | Liquid cooler recommended for optimal performance |
Max. Operating Temperature (Tjmax) | 89°C |
*OS Support | Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit |
CONNECTIVITY |
|
Native USB 3.2 Gen 2 (10Gbps) | 4 |
Native USB 3.2 Gen 1 (5Gbps) | 0 |
Native USB 2.0 (480Mbps) | 1 |
PCI Express® Version | PCIe® 5.0 |
Native PCIe® Lanes (Total/Usable) | 28 , 24 |
NVMe Support | Boot , RAID0 , RAID1 , RAID10 |
System Memory Type | DDR5 |
Memory Channels | 2 |
Max. Memory | 128 GB |
System Memory Subtype | UDIMM |
Max Memory Speed | 2x1R DDR5-5200 2x2R DDR5-5200 4x1R DDR5-3600 4x2R DDR5-3600 |
ECC Support | Yes (Requires mobo support) |
GRAPHICS CAPABILITIES |
|
Graphics Model | AMD Radeonâ„¢ Graphics |
Graphics Core Count | 2 |
Graphics Frequency | 2200 MHz |
USB Type-C® DisplayPort™ Alternate Mode | Yes |
SECURITY |
|
AMD Secure Processor | Yes |
AMD Platform Secure Boot | Yes |
Windows Secure Boot | Yes |
UEFI Secure Boot | Yes |
Windows Device Guard | Yes |
Supervisor Mode Execution Prevention (SMEP) | Yes |
Guest Mode Execution (GMET) Trap | Yes |
Virtualization-Based Security (VBS) | Yes |
Windows Secured-Core PC | Yes |
Firmware TPM | Yes |
AMD-V (SVM) | Yes |
AMD AVIC (Interrupt Virtualization) | Yes |
AMD-Vi (I/O MMU Virtualization) | Yes |
Second Level Address Translation (SLAT) | Yes |
Advanced Encryption Standard New Instructions (AES-NI) | Yes |
AMD Enhanced Virus Protection (NX bit) | Yes |
AMD Shadow Stack | Yes |
