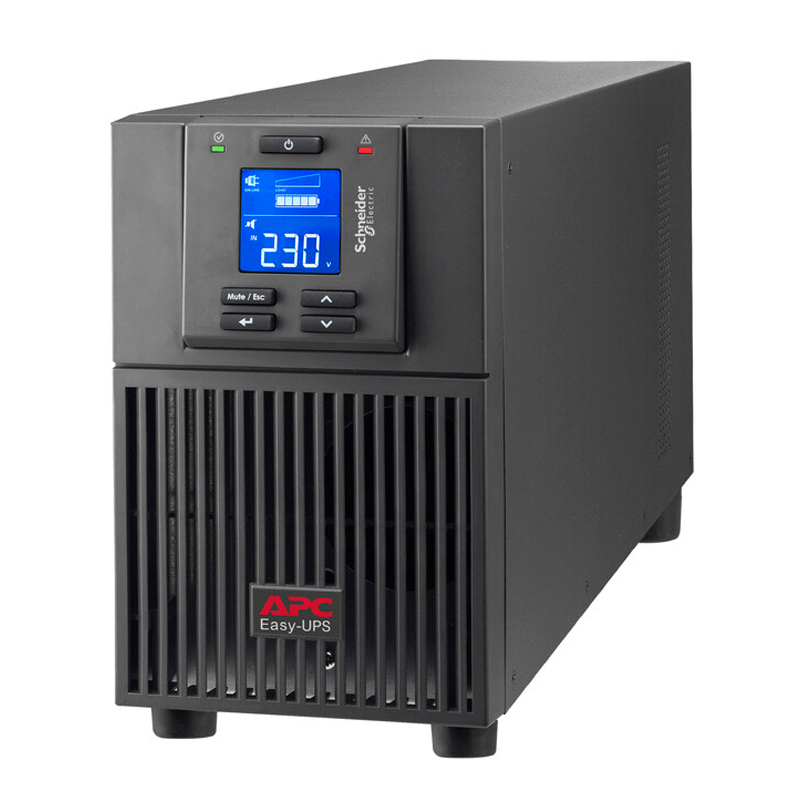

APC Easy UPS On-Line 2000VA/1800W 230V Tower (SRV2KIL-E)

Main Input Voltage

230 V AC 1 phase

Input voltage

220 V

240 V

Input Connection Type

IEC 60320 C20

Input voltage limits

105…300 V 40% load

180...285 V full load

Network frequency

40...70 Hz auto sensing

Output voltage

230 V AC 1 phase

Output voltage

220 V

240 V

Rated power in W

1800 W

Rated power in VA

2000 VA

Output connection type

4 IEC 60320 C13

Bypass type

Internal bypass (automatic and manual)

Crest factor

3 : 1

Harmonic distortion

3 %

Maximum configurable power in VA

2000 VA

Maximum configurable power in W

1800 W

UPS type

On-line

Wave type

Sine wave

Half load runtime

00:12:00 800 W

Efficiency

88 % (full load)

Output frequency

50/60 Hz +/- 3 Hz sync to mains

COMPLEMENTARY

Additional information

Configurable for 220 : 230 or 240 nominal output voltage

Control panel

Multifunction LCD status and control console

Free slots

1

Alarm

Alarm when on battery : distinctive low battery alarm : overload continuous tone   alarm

UPS connectivity

Serial port

USB port

Available expansion slot

Surge energy rate

600 J

Cable length

1.5 m

Number of cables

1

Colour

Black   (RAL   7010)

Height

336 mm

Width

335 mm

Depth

425 mm

Product weight

45.8 kg

Mounting location

Front

Mounting preference

No preference

Mounting mode

Not rack-mountable

USB compatible

Yes

Mounting position

Vertical

Mounting mode

Tower

Number of power module filled slots

0

Number of power module free slots

0

Redundant

No

Range of product

Easy UPS On-Line

Product or component type

Uninterruptible power supply (UPS)

ENVIRONMENT

Product certifications

CE

UKCA

TISI

Standards

EN/IEC 62040-1:2019/A11:2021

EN/IEC 62040-2:2006/AC:2006

EN/IEC 62040-2:2018

Ambient air temperature for operation

0…40 °C

Ambient air temperature for storage

-20…50 °C

Storage altitude

0…15000 m

IP degree of protection

IP20

Relative humidity

0…95 % non-condensing

Storage Relative Humidity

0…95 % non-condensing

Acoustic level

53 dBA

Heat dissipation

759 Btu/h

Operating altitude

0...3000 m

BATTERIES & RUNTIME

Battery type

Lead-acid battery

Battery voltage

72 V

Extended runtime

1

Number of battery filled slots

0

Number of battery free slots

0

Battery recharge time

5.5 h

Battery life

3…5 year(s)

Battery charger power

525 W rated

Battery power in VAH

1382 VAh runtime
