ASUS GeForce RTX 5060 with 3840 CUDA cores, 8 GB GDDR7 (28 Gbps, 128‑bit), up to 2565 MHz OC, PCIe 5.0, OpenGL 4.6, 623 TOPs AI, supports 4 displays (HDMI 2.1b + 3 DP 2.1b) up to 7680×4320. 550 W PSU.
Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.
SPECIFICATIONS:
Graphic Engine
NVIDIA® GeForce RTX™ 5060
AI Performance
623 TOPs
Bus Standard
PCI Express 5.0
OpenGL
OpenGL®4.6
Video Memory
8GB GDDR7
Engine Clock
OC mode: 2565MHz
Default mode: 2535MHz (Boost Clock)
CUDA Core
3840
Memory Speed
28 Gbps
Memory Interface
128-bit
Resolution
Digital Max Resolution 7680 x 4320
Interface
Yes x 1 (Native HDMI 2.1b)
Yes x 3 (Native DisplayPort 2.1b)
HDCP Support Yes (2.3)
Maximum Display Support
4
NVlink/ Crossfire Support
No
Accessories
1 x Speedsetup Manual
1 x Thank You Card
Software
ASUS GPU Tweak III & MuseTree & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.
Dimensions
228 x 123 x 50 mm
8.98 x 4.84 x 1.97 inches
Recommended PSU
550W
Power Connectors
1 x 8-pin
Slot
2.5 Slot
SFF Ready
Compatible
Note
* Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the “Choose By Wattage” feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html
Product Name:

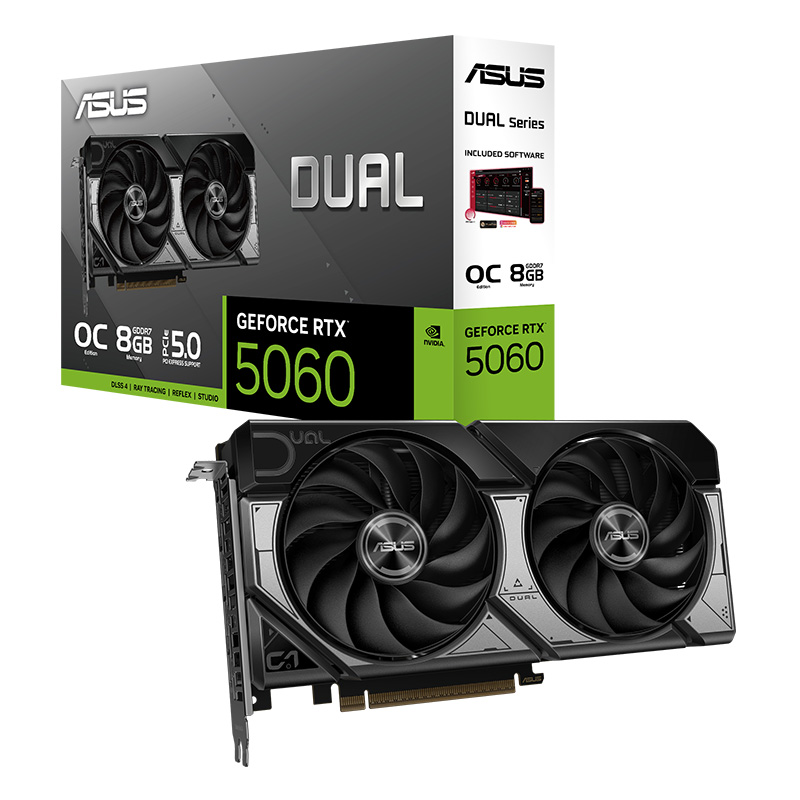

Asus Dual GeForce RTX 5060 8GB OC Graphics Card (DUAL-RTX5060-O8G)
