NVIDIA GeForce RTX 5070 with 12 GB GDDR7, 6144 CUDA cores, 28 Gbps memory on 192‑bit bus, Boost 2542 MHz (2572 MHz OC), PCIe 5.0, OpenGL 4.6, HDMI 2.1b + 3 DP 2.1b, 7680×4320 max, 16‑pin, 750 W PSU.
Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.
SPECIFICATIONS:
Graphic Engine
NVIDIA® GeForce RTX™ 5070
AI Performance
1000 TOPs
Bus Standard
PCI Express 5.0
OpenGL
OpenGL®4.6
Video Memory
12GB GDDR7
Engine Clock
OC mode: 2572MHz
Default mode: 2542MHz (Boost Clock)
CUDA Core
6144
Memory Speed
28 Gbps
Memory Interface
192-bit
Resolution
Digital Max Resolution 7680 x 4320
Interface
Yes x 1 (Native HDMI 2.1b)
Yes x 3 (Native DisplayPort 2.1b)
HDCP Support Yes (2.3)
Maximum Display Support
4
NVlink/ Crossfire Support
No
Accessories
1 x Speedsetup Manual
1 x Thank You Card
1 x Adapter Cable (1 to 2)
Software
ASUS GPU Tweak III & MuseTree & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.
Dimensions
249 x 126 x 50.6 mm
Recommended PSU
750W
Power Connectors
1 x 16-pin
Slot
2.53 Slot
SFF Ready
Compatible
Note
* Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the “Choose By Wattage” feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html
* Maximum Display Support is specifically applied to simultaneous display situation.
Product Name:

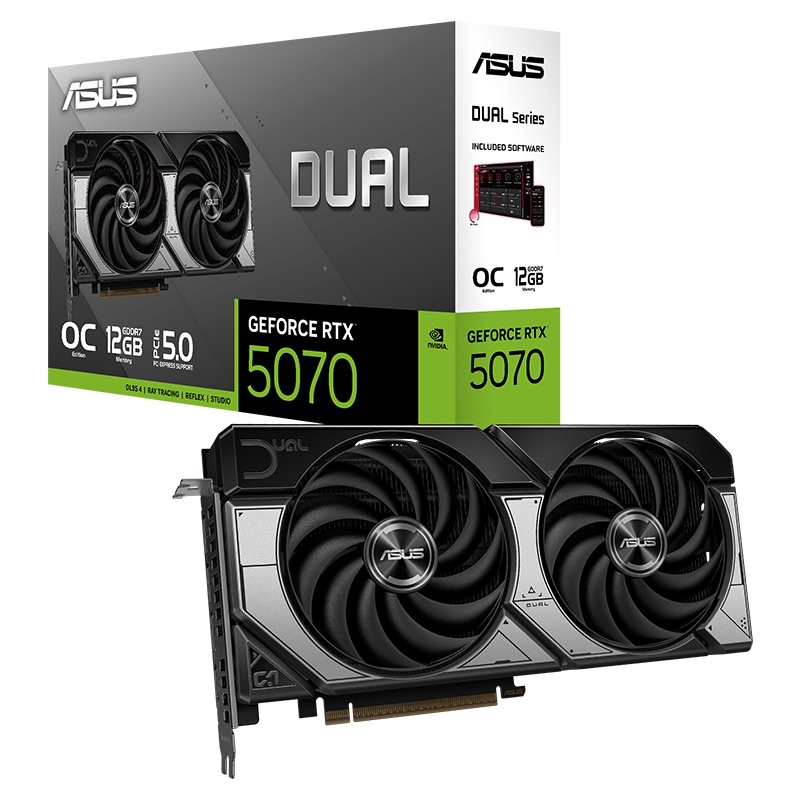

Asus GeForce RTX 5070 Dual 12G OC Graphics Card (DUAL-RTX5070-O12G)
