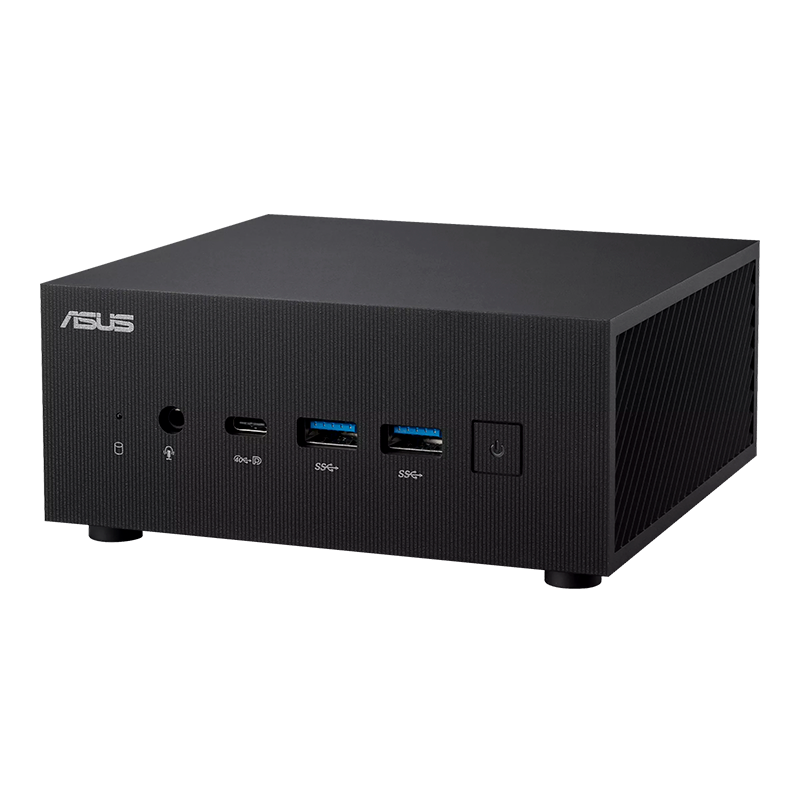

Asus PN53 AMD Ryzen 7 7735H Mini PC Barebone Kit (PN53-7R7BAREBONES)

CPU

AMD Ryzen™ 7 7735HS Processor, 35W TDP

Chipset

Integrated

Graphics

Integrated - Radeon™ Graphics

Memory

No memory included

Max Capacity: 32GB DDR5-4800 SO-DIMM x 2 (7000 Series CPU)

*System requires dual-channel memory configuration for optimal performance, * Memory support may vary based depending on CPU characteristics. Please check the Qualified Vendors List (QVL) for more details.

Storage

No storage included

Support:

256GB~2TB M.2 2280 NVMe™ PCIe® 4.0 x 4 SSD+

256GB~2TB M.2 2280 NVMe™ PCIe® 4.0 x 4 SSD+

1TB 2.5" SATA HDD, * 2.5" HDD bay only supports 7mm height. ** Please check the Qualified Vendors List (QVL) for more details.

Wireless Data Network

Wi-Fi 6E (Gig+), Bluetooth® 5.4 (Barebone SKU), * Bluetooth version support may vary from OS.

Bluetooth v5.2 function will be ready in in Windows 11 or later.

LAN

10/100/1000/2500 Mbps,2.5G Ethernet

Audio

Realtek® ALC3251 HD Audio CODEC

Front(Side) I/O Ports

1 x USB 4 Type-C (w/ DP output)

2 x USB 3.2 Gen1 Type-A

1 x Audio Jack

1 x Kensington Lock(side)

Back I/O Ports

1 x USB 4 Type-C (Support DP1.4, PD   input*)

3 x USB 3.2 Gen1

2 x HDMI 2.1 (Up to 4K@60Hz)

1 x Configurable Port

1 x 2.5G RJ45 LAN

1 x DC-in

1 x Padlock ring

Configurable Port Options

1 x VGA

1 x COM

1 x DisplayPort 1.4

1 x HDMI 2.1 (Up to 4K@60Hz)

Power Supply

150W

Dimensions (W x D x H)

120 x 130 x 58 mm

Weight

0.75 kg(barebone)

Package Contents

ExpertCenter PN53-7R7BAREBONES Barebone System

Power Adapter

Driver DVD (non OS SKU only)

Power Cord

Screw Pack

User Manual

Warranty Card
