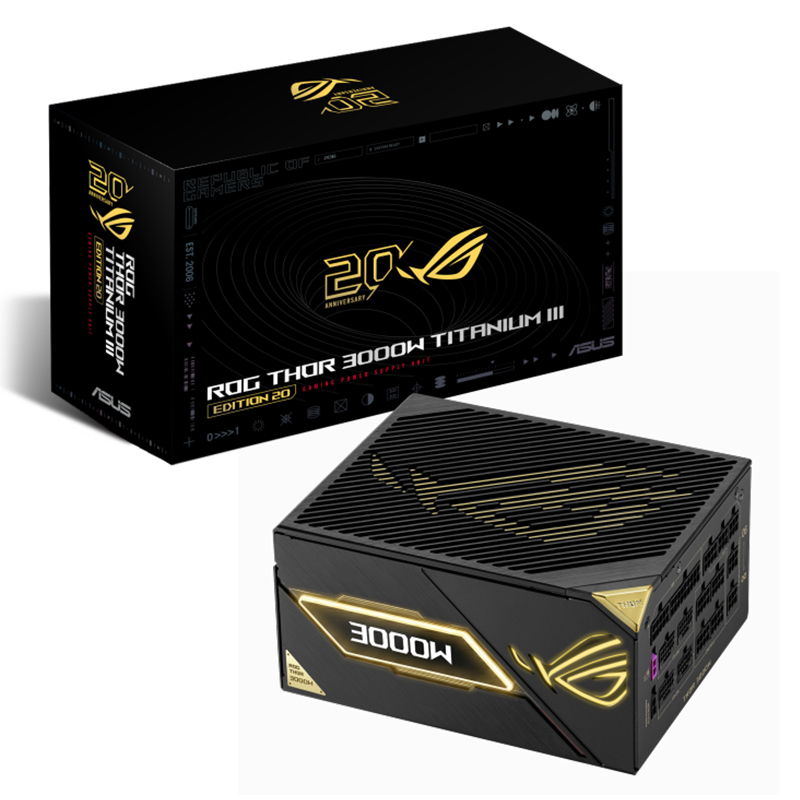

Asus ROG Thor 3000W Titanium III Edition 20 (ROG Equalizer) 80+ Titanium ATX 3.1 ATX12V Power Supply (ROG-THOR-3000T3-GAMING-20TH)

PFC Type

Active PFC

ATX Standard

ATX 3.1

80 PLUS Efficiency

80Plus Titanium

Protection Features

OPP/OVP/UVP/SCP/OCP/OTP

Hazardous Materials

ROHS

AC Input Range

220-240Vac｜115-240Vac｜100-115Vac

DC Output Voltage

+3.3V +5V +12V -12V +5Vsb

Maximum Load

30A 25A 250A 0.3A 3A｜30A 25A 133.3A 0.3A 3A｜30A 25A 108.3A 0.3A 3A

Combined Load

125W 125W 3000W 3.6W 15W｜125W 125W 1600W 3.6W 15W｜125W 125W 1300W 3.6W 15W

Total Output

3000W

Cable Connectors

MB 24/20-pin x 1

CPU 4+4-pin x 3

PCI-E 6+2-pin x 3

PCI-E 16-pin x 4 (12V-2x6/ROG EQUALIZER)

SATA x 9

PERIPHERAL x 3

Package Contents

Power Cord x 1

Motherboard   Power Cable x 1 (610mm)

CPU Cable x 3 (1000mm)

ROG EQUALIZER 12V-2x6 PCI-E Cable with GPU-First x1 (750mm)

ROG EQUALIZER 12V-2x6 PCI-E Cable x3 (750mm)

PCI-E Cable 1-to-1 x 3 (750mm)

SATA Cable 1-to-3 x 3 (400+120+120mm)

Peripheral 1-to-3 x 1 (400+150+150mm)

Addressable RGB Cable x 1 (800mm)

ROG OLED stand x 1

ROG 20TH Thank You Card x 1

ROG sticker x 1

ROG cable tie x 6

Chassis Screws Package x 1

Cable Tie x 12

User Manual x 1

Dimensions

190 x 150 x 86 mm

Weight

2.5 kg (single PSU)

AURA   SYNC

Yes

MTBF

>120,000 hrs @ 25°C

0dB Fan Button

Yes. When the Button is ON, the fan will only spin up when the system reaches a   certain load. When the Button is OFF, the fan will continuously spin at all load levels.
