Aten CS1762A-AT-U 2 Port USB DVI KVMP Switch w/ USB 2.0 Hub and Audio - Cables Included

Aten CS1762A-AT-U 2 Port USB DVI KVMP Switch w/ USB 2.0 Hub and Audio - Cables Included
  • 20497_thumb_P_1532495108588
$229.0
or 4x fortnightly payments of $330 with ZipPay
Learn more

Pick Up Time :

Get a $5 credit or a free drink if order not ready on pick up time.

Delivery:

Next Day Dispatch - Order within 30hrs and 18mins

- +
Want to be notified when this item is available for order?

Please enter a valid email address

By clicking Let me know, you agree to our Terms & Conditions and to receive email updates and exclusive promotions, which you may unsubscribe from any time.

WishAdd to Wishlist

   Your Store   Question Mark

Your store is set to:

Check live stock level

Bell  Stock Levels May Vary

Make sure to have the correct store selected. Stock levels are different at every store!
We don't do walk-ins, please make sure to order online for Pickup.

Specifications

  • Product Name:
    Aten CS1762A-AT-U 2 Port USB DVI KVMP Switch w/ USB 2.0 Hub and Audio - Cables Included
  • Model Number:
    CS1762A-AT-U
  • Brand:
  • Manufacturer Warranty:
    1 Year

Description





The CubiQ CS1762A USB 2.0 DVI KVMP Switch charts a revolutionary new direction in KVM (Keyboard, Video, Mouse) switch functionality by combining a 2 port KVM switch with a 2 port USB 2.0 hub at the same time as it provides an interface for a digital monitor (DVI).
       In addition, the CS1762A comes with ATEN's new Video DynaSync technology, which optimizes display resolution, and power on detection, which means if one computer is powered off, the CS1762A will automatically switch to the next powered-on computer.

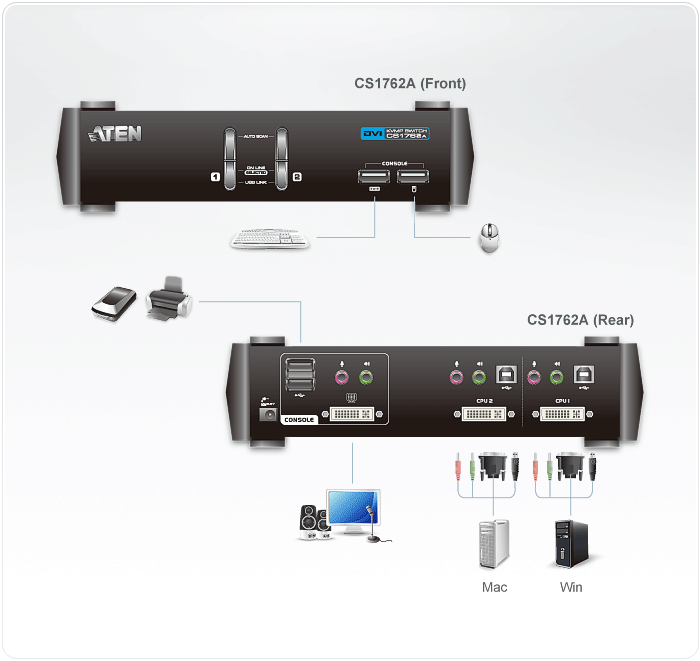

     As a KVM switch, it allows users to access two computers from a single USB keyboard, USB mouse, and monitor console. As a USB 2.0 hub, it permits each computer to access any peripherals connected to the hub on a 'one computer at a time' basis.



Package Contents
  • 1x CS1762A USB 2.0 DVI KVMP Switch

  • 2x Custom KVM Cable Sets (DVI-D)

  • 1x Power Adapter

  • 1x User Instructions

Features
  • One USB console controls two DVI computers and two additional USB 2.0 devices

  • 2-port USB 2.0 hub built in

  • Fully compliant with the USB 2.0 specification

  • Computer selection via front panel pushbuttons, hotkeys, and mouse

  • Audio enabled full bass response provides a rich experience for 2.1 channel surround sound systems

  • Multiplatform support Windows, Linux, Mac, and Sun

  • Supports widescreen resolutions

  • Superior video quality 1920 x 1200

  • Independent switching of KVM, USB, and Audio focus

  • DVI digital and analog monitor support fully compliant with the DVI specifi cations

  • HDCP compatible

  • Video DynaSync exclusive ATEN technology optimizes display resolution and eliminates boot-up display problems

  • Power on detection if one computer is powered off, the switch will automatically switch to the next powered-on computer

  • Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice

  • Complete keyboard emulation for error-free booting

  • Mac/Sun keyboard support and emulation*

  • Multilingual keyboard mapping supports English, Japanese, and French keyboards

  • Auto Scan Mode for monitoring all computers

  • Firmware upgradable

         * 1. PC keyboard combinations emulate Mac/Sun keyboards
         2. Mac/Sun keyboards only work with their own computer

Computer Connections2
Port SelectionFront Panel Pushbuttons;
   Hotkey, Mouse
ConnectorsConsole PortsKeyboard1 x USB Type A Female          (White; front panel)Video1 x DVI-I Female (White)Mouse1 x USB Type A Female          (white; front panel)Speakers1 x Mini Stereo Jack Female          (Green; rear panel)Mic.1 x Mini Stereo Jack Female          (Pink; rear panel)KVM PortsKeyboard / Mouse2 x USB Type B Female (White)Video2 x DVI-I Female (White)Speakers2 x Mini Stereo Jack Female (Green)Mic.2 x Mini Stereo Jack Female (Pink)Power1 x DC JackUSB Hub2 x USB Type A Female          (Black, rear panel)
SwitchesSelected 2 x Pushbutton
LEDsOn Line / Selected 2 (Orange)
   USB Link 2 (Green)
EmulationKeyboard/Mouse USB
Video1920 x 1200
Scan Interval199 secs. (5 secs. default)
Power ConsumptionDC5.3V, 9.0W
EnvironmentOperating Temp. 0 - 50°C
   Storage Temp. -20 - 60°C
   Humidity 0-80% RH, Non-condensing
Physical PropertiesHousing Metal
   Weight 0.73 kg
   Dimensions ( L x W x H ) 21.00x8.80x5.55cm
Note* The specification and pictures are subject to change without notice.
   * All trademarks and logos are the properties of their respective holders.


* Specifications are subject to change without notice.
* Specifications may vary.
* The product picture(s) is only for your reference, it may differ from the actual product.
