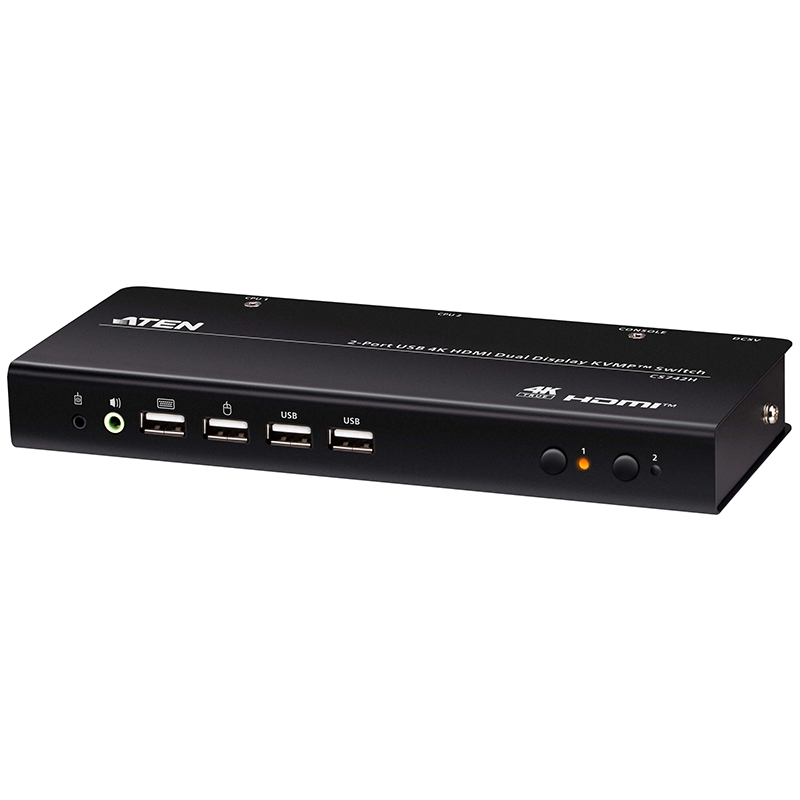

Aten CS742H 2 Port USB 4K HDMI Dual-Display KVMP Switch (CS742H-AT-U)

Port Selection

Hotkey, Pushbutton, Mouse wheel, Remote Port Selector

Connectors

Console Ports:

2 x USB Type A Female

2 x HDMI Female (Black)

1 x 3.5mm Audio Jack Female (Green; 1 x front)

KVM (Computer) Ports;

2 x USB2.0 Type B Female (White)

4 x HDMI Female (Black)

Remote Port Selector: 1 x 2.5mm Audio Jack Female

Power: 1 x DC Jack

USB Hub: 2 x USB2.0 Type A Female (White; 2 x front)

Switches

Selected: 2 x Pushbutton

LEDs

On Line /Selected: 2 (Orange)

Emulation

Keyboard / Mouse: USB

Video

Up to 4096 x 2160 @ 60Hz, 5120 x 1440 @ 60Hz

Scan Interval

1-99 Seconds (Default: 5 sec.)

Power Consumption

DC5V:3.63W:43BTU/h

Note:

● The measurement in Watts indicates the typical power consumption of the device with no external loading.

● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Environmental

Operating Temperature: 0-40°C

Storage Temperature: -20-60°C

Humidity: 0-80% RH, Non-condensing

Physical Properties

Housing: Metal, Plastic

Weight: 0.47 kg ( 1.04 lb )

Dimensions (L x W x H):

20.23 x 8.17 x 2.50 cm

(7.96 x 3.22 x 0.98 in.)

Note: For some of rack mount products, please note that the standard physical   dimensions of WxDxH are expressed using a LxWxH format.

Package Contents

1x CS742H 2-Port USB 4K HDMI Dual Display KVMP™ Switch

4x HDMI cables (1.8 m/6 ft)

2x USB Type-A to USB Type-B cables (1.8 m/6 ft)

1x remote port selector (1.8 m/6 ft)

1x foot pad set (4 pcs)

1x power adapter

1x user instructions
