Aten USB Dual DVI Cat 5 KVM Extender (CE604)

Aten CE604 USB Dual DVI Cat‑5 KVM extender supports dual‑view video up to 1920×1200 @30 m, 1024×768 @60 m, USB & audio, RS‑232, manual picture compensation, and up to 60 m over two Cat5e cables.

$838.5

or 4x fortnightly payments of $330 with ZipPay
Learn more

Pick Up Time : Question Mark

Get a $5 credit or a free drink if order not ready on pick up time.

Delivery: Question Mark

Next Day Dispatch - Order within 7hrs and 46mins

- +

Want to be notified when this item is back in stock?

Please enter a valid email address

By clicking 'Notify Me', you agree to our Terms & Conditions and consent to receive email updates. You can unsubscribe at any time.

Wish Add to Wishlist

Your Store

Your store is set to:

Check live stock level

Stock Levels May Vary

Make sure to have the correct store selected. Stock levels are different at every store!
We don't do walk-ins, please make sure to order online for Pickup.

Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.

Specifications

Product Name:

Aten USB Dual DVI Cat 5 KVM Extender (CE604)
Model Number:

CE604-AT-U
Brand:

Aten
Warranty Period:

2 Year

Description

Aten USB Dual DVI Cat 5 KVM Extender (CE604)

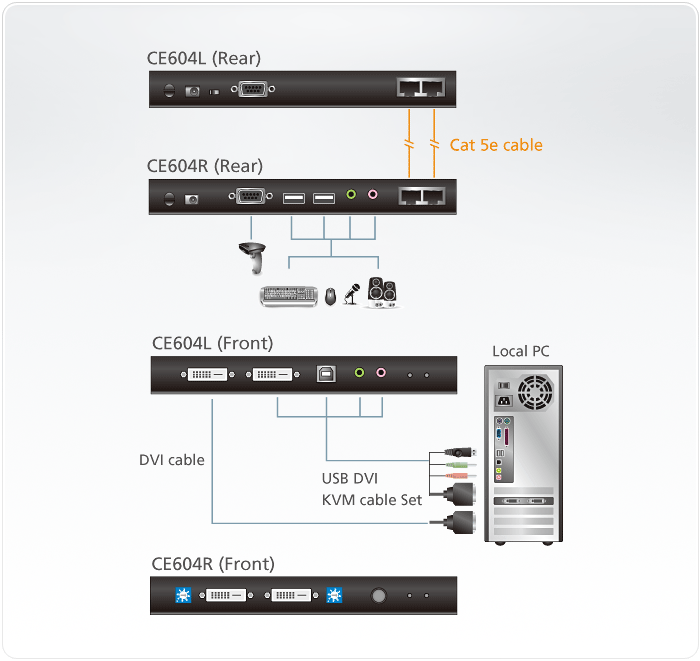

Local and Remote Units connect at distances up to 60 m using two Cat 5e cables
Supports Dual View video source transmission (one PC with two video output ports)
Superior video quality – up to 1920 x 1200 @ 60 Hz at 30 m; 1024 x 768 @ 60 Hz at 60 m
Manual compensation control to adjust video signal quality in order to compensate for distance

Aten USB Dual DVI Cat 5 KVM Extender (CE604)

Specifications

Function	CE604L	CE604R
Connectors
Console Ports	N/A	2 x USB Type A Female (White) 2 x DVI-D Female (White) 1 x Mini Stereo Jack Female (Green) 1 x Mini Stereo Jack Female (Pink)
KVM Ports	1 x USB Type B Female (White) 1 x Mini Stereo Jack Female (Green) 1 x Mini Stereo Jack Female (Pink) 2 x DVI-D Female (White)	N/A
RS-232	1 x DB-9 Female (Black)	1 x DB-9 Male (Black)
Power	1 x DC Jack (Black)	1 x DC Jack (Black)
Sub / Main	2 x RJ-45 Female (Black)	2 x RJ-45 Female (Black)
LEDs
Link	1 (Green)	1 (Green)
Power	1 (Green)	1 (Green)
Switches
Picture Compensation	N/A	2 x 8-position switch
Firmware Upgrade	1 x Slide Switch	N/A
Pushbuttons
Wakeup button	N/A	1 x pushbutton
Video	1920x1200 @ 60Hz (30 m); 1024x768 @ 60Hz (60 m)	1920x1200 @ 60Hz (30 m); 1024x768 @ 60Hz (60 m)
Power Consumption	DC5.3V:2.88W:18BTU	DC5.3V:2.35W:15BTU
Environmental
Operating Temperature	0–50°C	0–50°C
Storage Temperature	-20–60°C	-20–60°C
Humidity	0–80% RH, Non-condensing	0–80% RH, Non-condensing
Physical Properties
Housing	Metal	Metal
Weight	0.49 kg ( 1.08 lb )	0.49 kg ( 1.08 lb )
Dimensions (L x W x H)	20.20 x 8.53 x 2.50 cm (7.95 x 3.36 x 0.98 in.)	20.20 x 8.67 x 2.50 cm (7.95 x 3.41 x 0.98 in.)
Note	For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

Package Contents

1x CE604L (Local Unit)
1x CE604R (Remote Unit)
1x Custom KVM Cable (DVI-D Single Link, USB, Audio; 1.8m/6ft)
1x DVI Cable (1.8m/6ft)
2x Power Adapters
1x Mounting Kit
1x User Instructions
