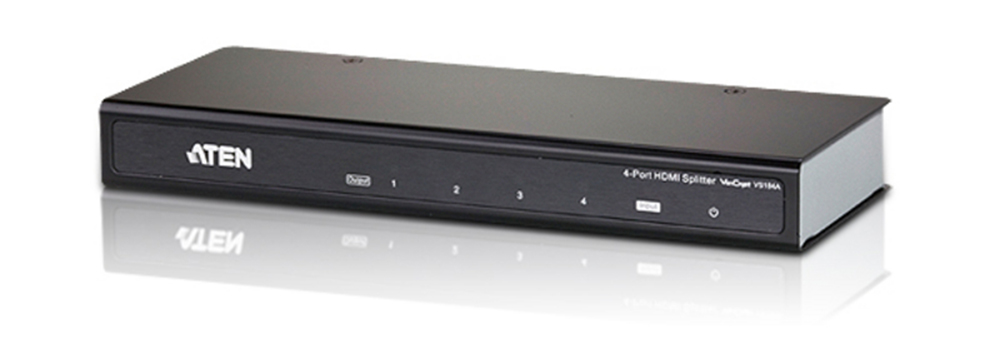

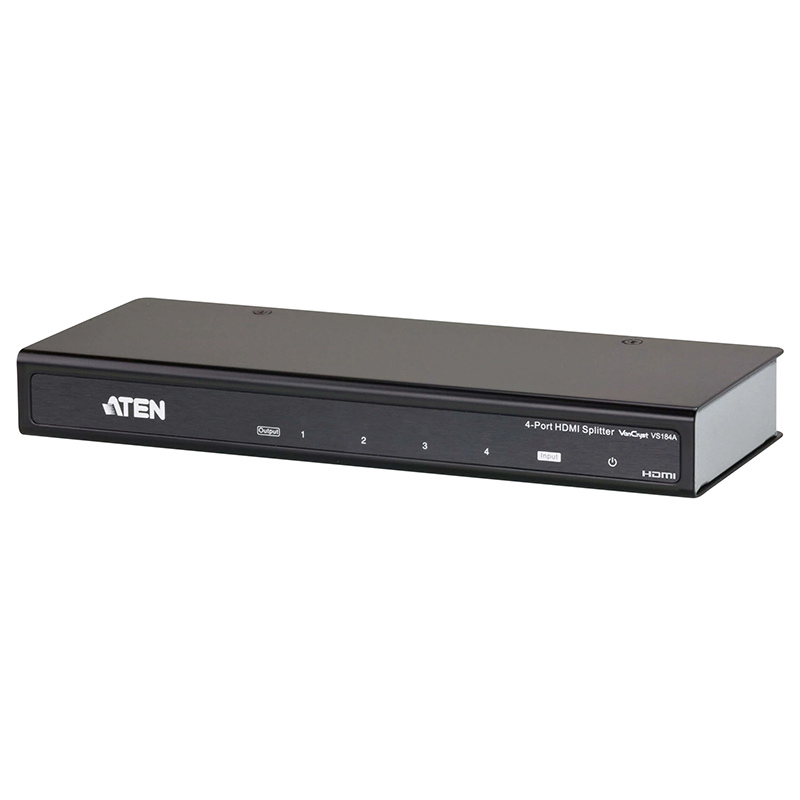

Aten VS184A-AT-U 4 Port 4K HDMI Splitter

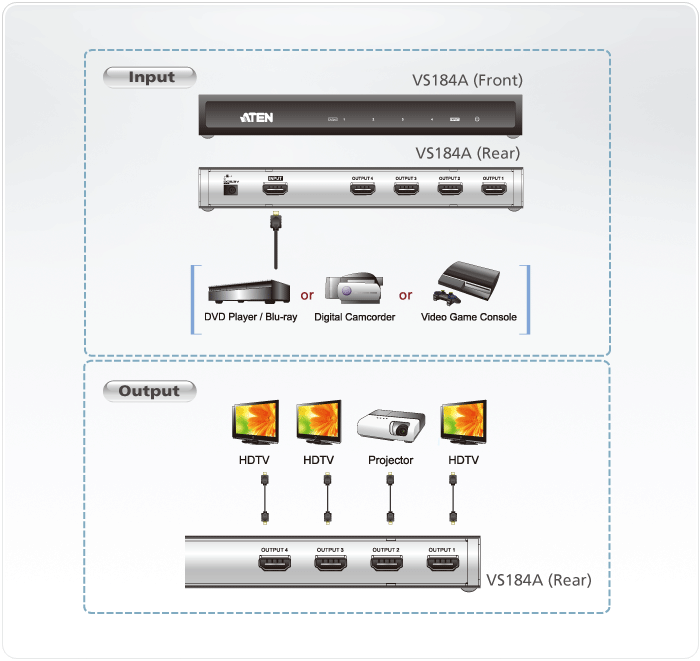

The VS184A HDMI splitter sends one HDMI source to four displays, supporting 4K/2K, 3D, Deep Color, Dolby TrueHD/DTS‑HD, HDCP 1.4, up to 340 MHz bandwidth and 15 m cable runs. Plug‑and‑play, metal housing.

Aten VS184A-AT-U 4 Port 4K HDMI Splitter
  • Display-Adapters-Aten-VS184A-AT-U-4-Port-4K-HDMI-Splitter-8
  • Display-Adapters-Aten-VS184A-AT-U-4-Port-4K-HDMI-Splitter-5
  • Display-Adapters-Aten-VS184A-AT-U-4-Port-4K-HDMI-Splitter-6
$89.00
or 4x fortnightly payments of $330 with ZipPay
Learn more

Pick Up Time :

Get a $5 credit or a free drink if order not ready on pick up time.

Delivery:

Next Day Dispatch - Order within 8hrs and 29mins

- +
Want a stock alert?

Please enter a valid email address

By clicking 'Notify Me', you agree to our Terms & Conditions and consent to receive email updates. You can unsubscribe at any time.

WishAdd to Wishlist

   Your Store   Question Mark

Your store is set to:

Check live stock level
    • DELIVERY
    • Post At Other Store
    QLD Pickup & Post
    • Post At Other Store
    • Mansfield Robot Super StoreIcon 3 At Other Store
    • Milton At Other Store
    • Hillcrest At Other Store
    NSW Pickup & Post
    • Post At Other Store
    • Villawood Robot Super StoreIcon 3 At Other Store
    • West Ryde At Other Store
    • Ultimo At Other Store
    • Auburn At Other Store
    VIC Pickup & Post
    • Post At Other Store
    • Mulgrave Robot Super StoreIcon 3 At Other Store
    • Dandenong South Icon 3 At Other Store
    ACT Pickup
    • Fyshwick At Other Store
    SA Pickup & Post
    • Post At Other Store
    • Croydon Robot Super StoreIcon 3 At Other Store
    WA Pickup & Post
    • Post At Other Store
    • Belmont Robot Super StoreIcon 3 At Other Store
    • Balcatta At Other Store
    TAS Post
    • Post At Other Store
    • Glenorchy

Bell  Stock Levels May Vary

Stock is different at each store. To secure your item, order online.
Walk-ins are still welcome but stock isn’t guaranteed.

Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.

Display-Adapters-Aten-VS184A-AT-U-4-Port-4K-HDMI-Splitter-4



SPECIFICATIONS:

VIDEO INPUT

Interfaces

1 x HDMI Type A Female (Black)

Impedance

100 Ω

Max. Distance

3m @3840x2160@30Hz (4:4:4)

VIDEO OUTPUT

Interfaces

4 x HDMI Type A Female (Black)

Impedance

100 Ω

Max. Distance

15m @3840x2160@30Hz (4:4:4)

VIDEO

Max. Data Rate

10.2 Gbps (3.4 Gbps Per Lane)

Max. Pixel Clock

340 MHz

Compliance

HDMI (3D, Deep Color, 4K);
HDCP Compatible

Max. Resolution

Up to 4096 x 2160 / 3840 x 2160 @ 60Hz   (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)

AUDIO

Input

1 x HDMI Type A Female (Black)

Output

4 x HDMI Type A Female (Black)

CONNECTORS

Power

1 x DC Jack

Power Consumption

DC5.3V:6.02W:28BTU/h

Note:
● The measurement in Watts indicates the typical power consumption of the device with no external loading.
● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

ENVIRONMENTAL

Operating Temperature

0-50 °C

Storage Temperature

-20 - 60°C

Humidity

0 - 80% RH, Non-Condensing

PHYSICAL PROPERTIES

Housing

Metal

Weight

0.47 kg ( 1.04 lb )

Dimensions (L x W x H)

20.00 x 8.00 x 2.50 cm
(7.87 x 3.15 x 0.98 in.)

Carton Lot

20 pcs

Note

For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

OTHERS


Package Contents

1x VS184A 4-Port HDMI Splitter

1x Power Adapter

1x HDMI Cable(1.8 m)

1x User Instructions




  • Product Name:
    Aten VS184A-AT-U 4 Port 4K HDMI Splitter
  • Model Number:
    VS184A-AT-U
  • Brand:
    Aten Aten
  • Warranty Period:
    1 Year
