SPECIFICATIONS:
GENERAL DATA
Model

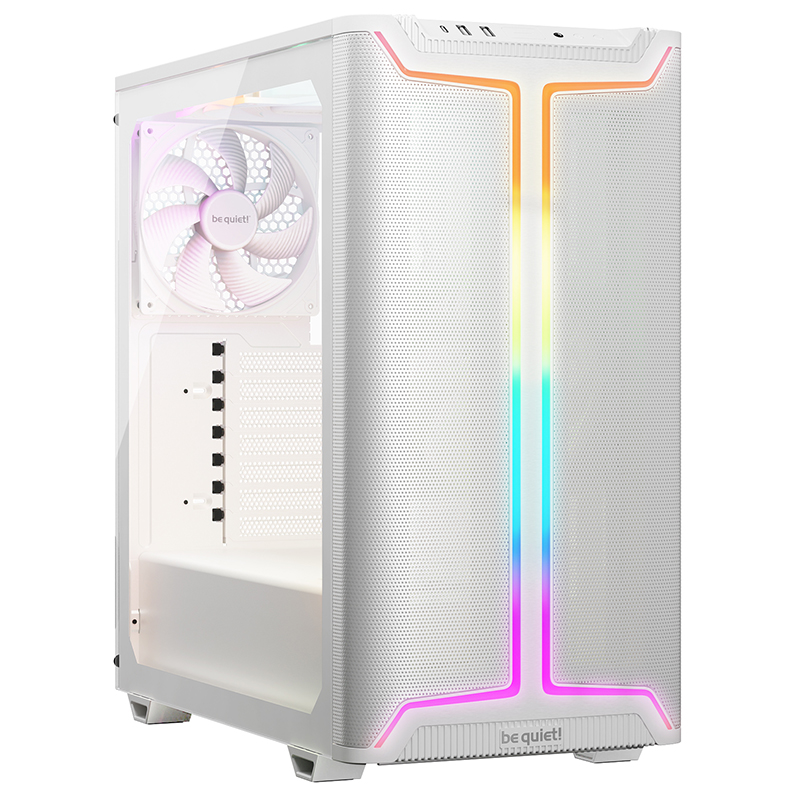

Pure Base 501 DX White
Color option
White
Motherboard compatibility
ATX / M-ATX / Mini-ITX
Case size excl. stands (L x W x H), (mm)
450 x 231 x 449
Case size incl. stands (L x W x H), (mm)
450 x 231 x 463
Volume (l)
39.2
PSU form factor
ATX PS/2
Net weight (kg)
7.9
Expansion slots
7
PRE-INSTALLED FANS
Fan at top
1x Pure Wings 3 140mm PWM White
Fan at front
Fan at rear
Dimensions (L x W x H), (mm)
140 x 25 x 140
Fan speed at 100% PWM / 12V (rpm)
1200
Airflow at 100% PWM / 12V (CFM / m3/h)
57.4 / 97.5
Air Pressure at 100% PWM / 12V (mm H2O)
0.96
Noise level at 100% PWM / 12V (dB(A))
21.9
Voltage range (V DC)
5 - 13.2
Input power (W)
3.6
Input current (A)
0.06
Connector
4-pin PWM
Lifespan (h / 25°C)
80,000
MAXIMUM FAN INSTALLATION
Maximum fans
6
Top (mm)
2x 140 / 2x 120
Front (mm)
2x 140 / 3x 120
Rear (mm)
1x 140 / 1x 120
OPTIONAL RADIATOR INSTALLATION
120 / 240
120 / 140 / 240 / 280 / 360
120 / 140
PSU COMPATIBILITY
Maximum dimensions excl. bottom fan (mm)
200
Maximum dimensions incl. bottom fan (mm)
180
GRAPHICS CARD
HDD cage (in height of graphics card) installed (mm)
368
HDD cage (in height of graphics card) removed (mm)
Maximum PCIe slots with vertical graphics card (pcs.)
5
DRIVE BAY CAPACITY
3.5 slots (scope of delivery)
2
3.5 slots (max.)
2.5 slots (scope of delivery)
2.5 slots (max.)
I/O PANEL
USB 3.2 Gen. 2 Type C
1
USB 3.2 Type A
HD Audio I/O
Mic + Audio
INSULATION AND DAMPING
Side panel insulation mats
✓
Anti-vibration decoupled HDD
Anti-vibration decoupled PSU
SCOPE OF DELIVERY
Screw set (Drives/Motherboard)
Additional standoffs (pcs.)
LED strips (pcs.)
Cable ties (pcs.)
12
REMOVEABLE DUST FILTERS
Top
Front
Bottom
MATERIAL
Top cover
Steel
Front panel
ABS
Side panel
Side panel window
Glass
Stands
SAFETY CERTIFICATION
Approvals
CE, UKCA
ENVIRONMENTAL DIRECTIVES
RoHS
WEEE
Triman
