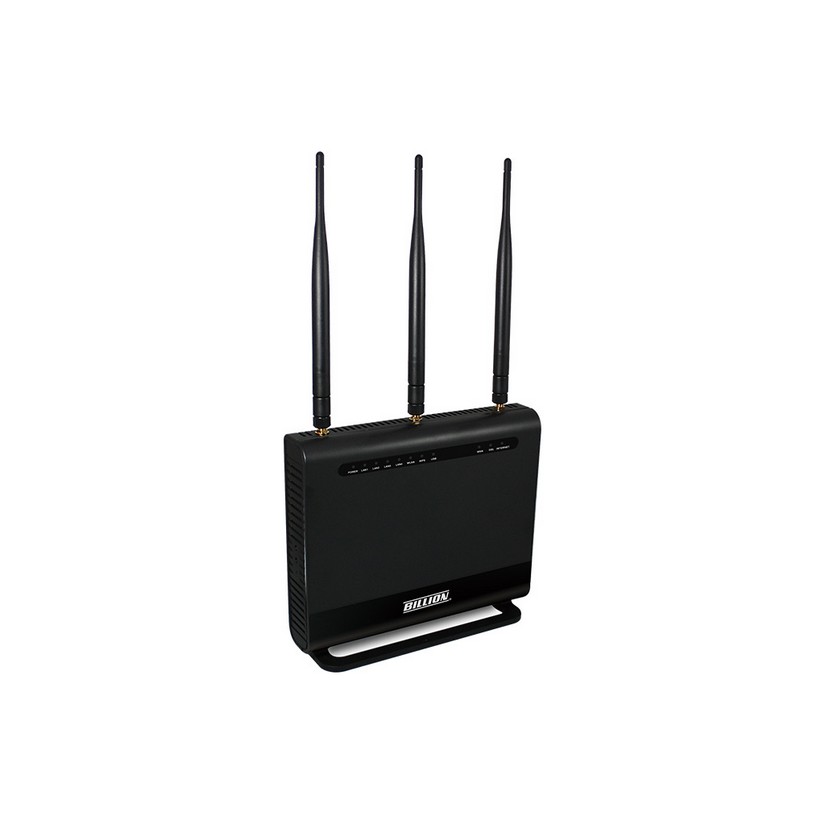

BiPAC 8700AXL - 1600 Triple-WAN Wireless 1600Mbps, 3G/4G LTE and VDSL2/ADSL2+ Firewall Router
The Billion BiPAC 8700AXL-1600 is a multi-service VDSL2 router. It features fiber-ready triple-WAN VDSL2 supports backward compatibility to ADSL2+for a longer reach distance, an all-in-one advanced device including concurrent dual-band 802.11ac (5GHz) 1300Mbps and 802.11n (2.4GHz) 300Mbps, Gigabit Ethernet, connections to 3G/4G LTE and NAS (Network Attached Storage) in one unit. As well as being IPv6-capable, the BiPAC 8700AXL-1600 VDSL2 router supports superfast fiber connections via a Gigabit Ethernet WAN port. It also has one USB port, allowing the device to act as a NAS (Network Attached Storage) device with DLNA (Digital Living Network Alliance) and FTP (File Transfer Protocol) access. Moreover, the USB port can host a 3G/4G LTE modem connecting to the 3G/4G LTE network for Internet access. With an array of advanced features, the Billion BiPAC 8700AXL-1600 delivers a future-proof solution for VDSL2 connections, superfast FTTC and ultra-speed FTTH (Fiber-To-The-Home) network deployment and services. |
| Official Product Link | Open Link | | Key Features & Benefits | - Compliant with VDSL2/ADSL2+ standards
- Triple-WAN ports for 3G/4G LTE, VDSL2/ADSL2+ fallback, Gigabit Ethernet WAN (EWAN) for broadband connectivity
- Simultaneous dual-band Wireless 1300Mbps (5GHz) and 300Mbps (2.4GHz)
- Gigabit EWAN and LAN ports
- IPv6 ready (IPv4/IPv6 dual stacks)
- Fibre (FTTC/FTTP/FTTH) ready with high WAN throughput
- NBN (National Broadband Network) ready*1
- USB port for NAS, DLNA media server, and 3G/4G LTE USB modem
- SNR adjustments to achieve highest sync speeds
- Monitoring of individual LAN ports
- QoS for traffic prioritization and bandwidth management
- Compliant with IEEE 802.11a/b/g/n and 802.11ac standards
- WPS (Wi-Fi Protected Setup) for easy setup
- Wireless security with WPA-PSK/WPA2-PSK
- Supports WDS repeater function
- Multiple wireless SSIDs with wireless guest access and client isolation
- Supports Interface Grouping (VLAN_MUX)
- SOHO firewall security
- Auto failover and fallback
- Supports IPTV application*2
- Ease of use with quick installation wizard (EZSO)
- Broadcom chipset for better stability
- Ideal for SOHO and office users
| | WAN Interface | V/ADSL Yes
EWAN Yes
3G/4G LTE via USB | | Hardware Interface | Giga Ethernet 5
USB 2.0 1
802.11n (2.4 GHz) Yes
dual band 802.11n Yes
802.11ac (5 GHz) Yes | | Features | IPv4 / IPv6 Yes
VLAN_MUX Yes
Failover / Fallback Yes | | Hardware Specifications | Physical Specifications Dimensions: 8.86" x 7.20" x 2.87" (225 mm x 183 mm x 73 mm)
Power Requirements Input: 15V DC, 2.0A
Operating Environment Operating temperature: 0Æ’ ~ 40Æ’
Humidity 20% ~ 95% non-condensing |
* Specifications are subject to change without notice.
* Specifications may vary.
* The product picture(s) is only for your reference, it may differ from the actual product.
|
