SPECIFICATIONS:
Rank
Standard
Material
Steel, Plastic
Metal Sheet Thickness
Bracket Arm THK=2mm cold-rolled sheet
VESA Panel THK=2mm cold-rolled sheet
Wall Plate THK=2mm cold-rolled sheet (VESA Panel THK=0.079″ cold-rolled sheet
Wall Plate THK=0.079″ cold-rolled sheet
Bracket Arm THK=0.079″ cold-rolled sheet)
Surface Finish
Powder Coating
Color
Matte Black

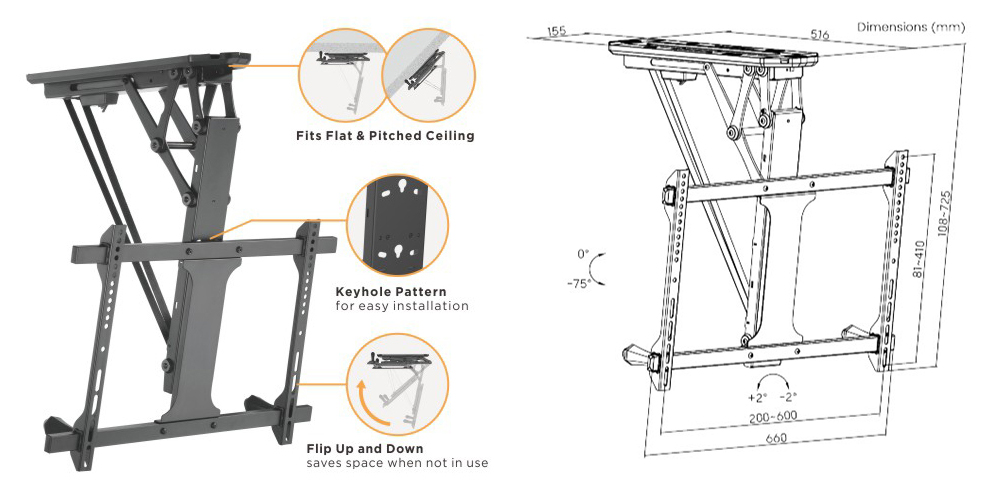

Dimensions
725x664x516mm (28.5″x26.1″x20.3″)
Fit Screen Size
32″-70″
Fit Curved TV
Yes
Mounting Hole Pattern
VESA Only
VESA Compatible
200×100, 200×200, 300×200, 200×400, 400×200, 300×300, 400×300, 400×400, 600×400
Max. VESA
600×400
Weight Capacity
35kg (77lbs)
Strength Tested
3 Times Approved
Profile
108mm (4.3″)
Tilt Range
0~-75°
Screen Level
+2°~-2°
Screen Freely Tilting
No
Installation
Ceiling Mounted
Panel Type
Detachable Panel
Wall Plate Type
Fixed Wall Plate
AV Component Shelf
Cable Management
Anti-theft
Power Supply
Input：AC 100~240V,50/60Hz；Output：DC 24V, 1.5A
Power Cord Length
1.5m (4.9ft)
Controller Type
Application Control,Radio Frequency(RF) Remote
Bubble Level
Accessory Kit Package
Normal/Ziplock Polybag, Compartment Polybag
Certification
CE,FCC,RoHS
