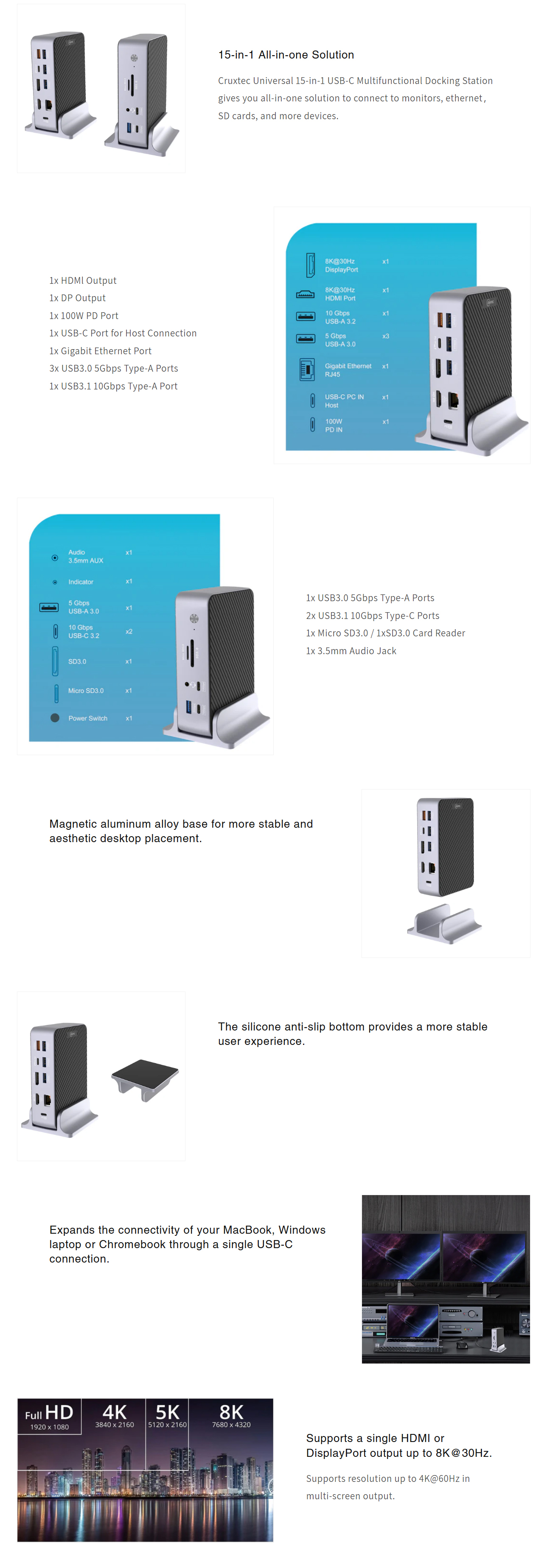

Cruxtec Universal 15-in-1 USB-C Multifunctional Docking Station (CDK15-BK)
Single 8K@30Hz/4K@120Hz HDMI/DP output, dual HDMI+DP 4K@60Hz display output support, magnetic aluminum-alloy base for stable desktop placement.
Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.
SPECIFICATIONS:
Interface
1x HDMl Single Output Supports up to 8K@30Hz / 4k@120Hz   Â
1x DP Single Output Supports up to 8K@30Hz / 4k@120Hz
1x 100W ( 20V5A MAX ) PD Charging Port            Â
1x USB-C Port for Host Connection ( Supports 60W power charging output )Â Â Â Â Â Â Â Â Â
1x Gigabit Ethernet Port ( Support 10M/100M/1000M transmission rate )Â Â Â Â Â Â Â Â Â Â Â Â Â Â
4x USB3.0 5Gbps Type-A Ports  Â
1x USB3.1 10Gbps Type-A Port Â
2x USB3.1 10Gbps Type-C Ports
1x Micro SD3.0 / 1xSD3.0 (Supports up to 130Mpbs/S transmission rate )
1x 3.5mm Audio Jack ( Supports 96 KHz 24-bit sample rate and external audio codecs )Â Â Â Â
Chipsets
VMM6210+GL3590Q8+GL3510*2+GL3231+RTL8153B+CS202
Material
Aluminum alloy+ABS
Cable Length
100cm
Colour
Metallic Grey + Black
Platforms
Windows / Mac OS / Chromebook
Â
Supports MST on Windows; Supports resolution up to 4K@60Hz in multi-screen output; The device needs to support HBR3 bandwidth or above.              Â
On Mac OS with M1 CPU only supports 1 external monitor display in USB-C Display Alt mode; Supports resolution up to 4K@120Hz.         Â
On Mac OS with M2/M3 CPU supports multi-screen mirroring or extending; Supports resolution up to 4K@60Hz in multi-screen output. Â
Product comes with
1* USB4 20GBPS C to C Cable.
Â
Â
Product Name:
Cruxtec Universal 15-in-1 USB-C Multifunctional Docking Station (CDK15-BK)
