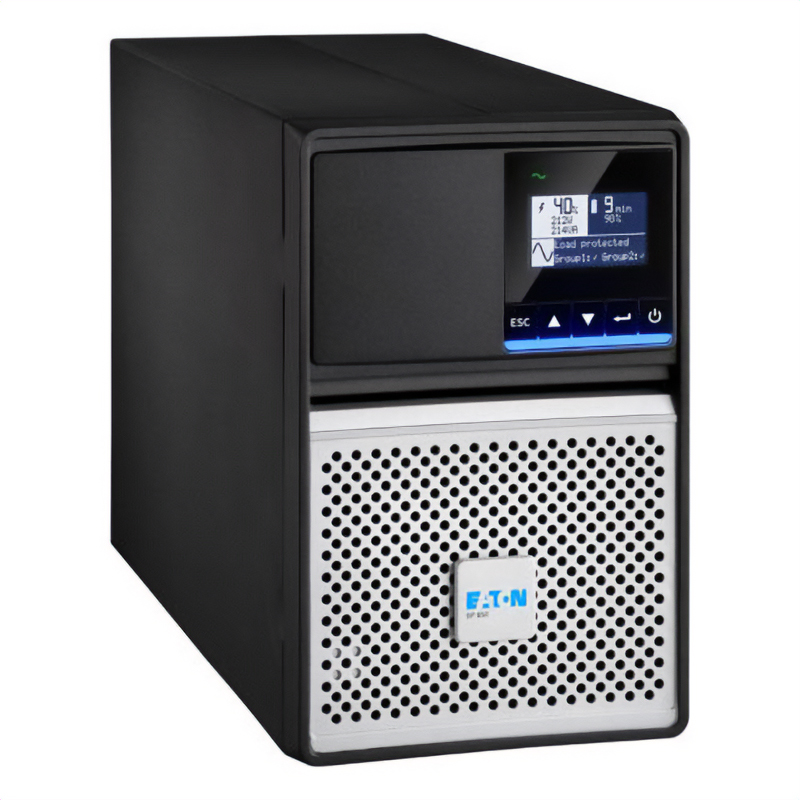

Eaton 5P 650i AU G2 650VA/520W Tower UPS With LCD (5P650IAUG2)

Format

Tower

Technology

Line-Interactive High Frequency (Pure Sinewave, Booster + Fader)

Input nominal voltage

200V-240V

Input voltage range without using batteries

160V-294V (adjustable to 150V-294V)

Input frequency range without using batteries

47 to 70 Hz (50 Hz system), 56.5 to 70 Hz (60 Hz system), 40 Hz in low-sensitivity mode

Output voltage

230V (+6 / -10 %) (Adjustable to 200V / 208V / 220V / 230V / 240V), 50 / 60 Hz + / - 0.1 Hz (autosensing)

Input

IEC C14 (10A)

Outputs

2 x AU 10A, 3 x IEC C13 (10A)

Switched outlets groups

2 outlet groups

Typical backup times *

200W: 12

300W: 5.5

400W: 3

Battery management

Eaton ABM + or constant voltage charging method (user selectable), enhanced battery life time prediction based on usage conditions, battery exchange wizard, automatic battery test, deep discharge protection

Communication ports

1 USB port + 1 serial RS232 port and relay contacts (USB and RS232 ports cannot be used simultaneously), 1 mini terminal block for Remote ON/OFF and Remote Power OFF

Communication slot

1 slot for Network-M3, INDGW-M2 or Relay-MS cards

Operating temperature

0 to 40°C

Noise level

<30 dB @ typical load

Safety

IEC/EN 62040-1, UL1778, CSA22.2

EMC, Performance

IEC/EN 62040-2, IEC / EN 62040-3, FCC Class B, CISPR 32 Class B

Approvals

CE / CB report (TUV) / cTUVus / UKCA / Ukr / Cm

EcoDesign

RoHS, REACH, WEEE, Packaging directive, Battery directive, PEP Ecopassport

Dimensions W x D x H / Weight

150x345x233mm / 7.9kg
