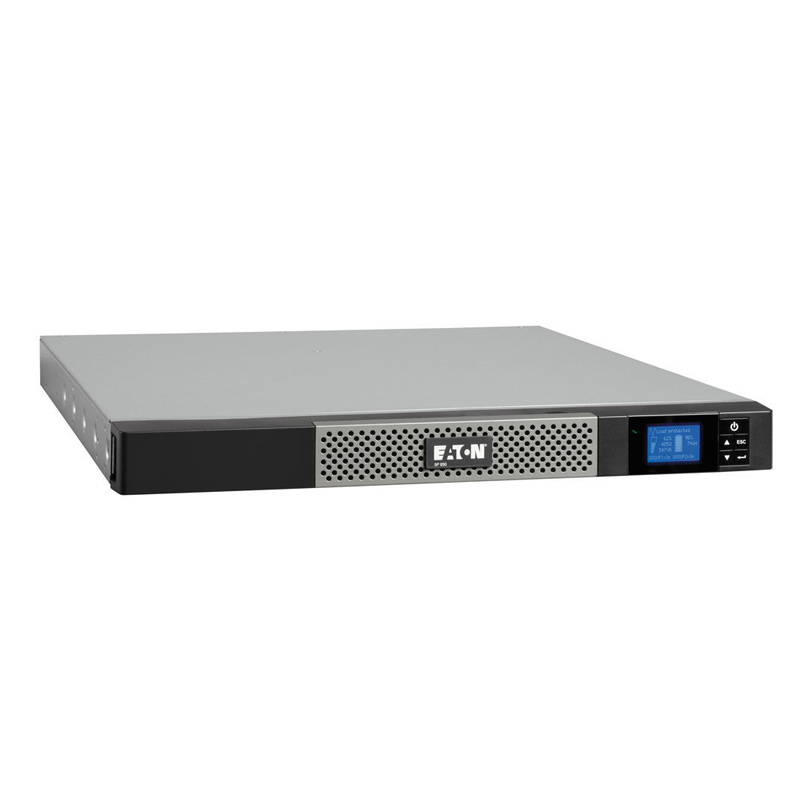

Eaton 5P 850VA / 600W Line Interactive UPS Rack 1U (5P850iR)

Eaton 5P 850VA / 600W Line Interactive UPS Rack 1U (5P850iR)
  • 47973_thumb_P_1552868649982
$799.0
or 4x fortnightly payments of $330 with ZipPay
Learn more

Pick Up Time :

Get a $5 credit or a free drink if order not ready on pick up time.

Delivery:

Next Day Dispatch - Order within 26hrs and 53mins

- +
Want to be notified when this item is available for order?

Please enter a valid email address

By clicking Let me know, you agree to our Terms & Conditions and to receive email updates and exclusive promotions, which you may unsubscribe from any time.

WishAdd to Wishlist

   Your Store   Question Mark

Your store is set to:

Check live stock level

Bell  Stock Levels May Vary

Make sure to have the correct store selected. Stock levels are different at every store!
We don't do walk-ins, please make sure to order online for Pickup.

Specifications

  • Product Name:
    Eaton 5P 850VA / 600W Line Interactive UPS Rack 1U (5P850iR)
  • Model Number:
    5P850iR
  • Brand:
  • Warranty Period:
    1 Year

Description

Eaton 5P850iR 5P 850VA / 600W Line Interactive UPS Rack 1U


Eaton 5P 850VA / 600W Line Interactive UPS Rack 1U (5P850iR)


Specifications


GENERAL

Topology:          Line-Interactive High Frequency   (Pure Sinewave, Booster + Fader)

Configuration:   Rack 1U

Part Number:    5P850iR

Rating (VA/Watts):         850/600

Dimensions (H x W x D, mm):    43.2 x 438 x 509

Weight (kg):      13.8

Warranty:         3 years on electronics, 2 years on batteries



ELECTRICAL INPUT

Connection:      (1) IEC-320-C14

Input   Voltage Without Using Batteries:    160V-294V   (adjustable to 150V-294V)

Input frequency Range Without   Using Batteries:  47 to 70Hz (50 Hz   system), 56.5 to 70Hz (60 Hz system), 40Hz in low-sensitivity mode



ELECTRICAL OUTPUT

Voltages:          230 V (+6/-10 %) (Adjustable to 200V / 208V / 220V / 230V   / 240V)

Outlets: (4) IEC-320-C13

Remotely controlled sockets:     2 groups of 2 x IEC C13 (10 A)

Output Frequency:        50/60 Hz +/- 0.1 % (autosensing)



BATTERY

Battery Management:    ABM® or constant voltage charging method   (user selectable), automatic battery test, deep discharge protection



COMMUNICATIONS

Communication Ports:   1 USB port + 1 RS232 serial port and relay   contacts (USB and RS232 ports cannot be used simultaneously), 1 mini-terminal   block for remote ON/OFF and Remote Power Off

Communications Card Slots:      1 slot for Network-MS card, ModBus-MS or   Relay-MS cards

ENVIRONMENTAL AND   STANDARDS

Audible Noise:   < 40 dBA

Operating Temperature: 0 to 35°C

Safety markings:           IEC/EN 62040-1, UL 1778

EMC Markings: IEC/EN 62040-2, IEC/EN 62040-3 (performance)

Approvals:        CE, CB report, TÜV
