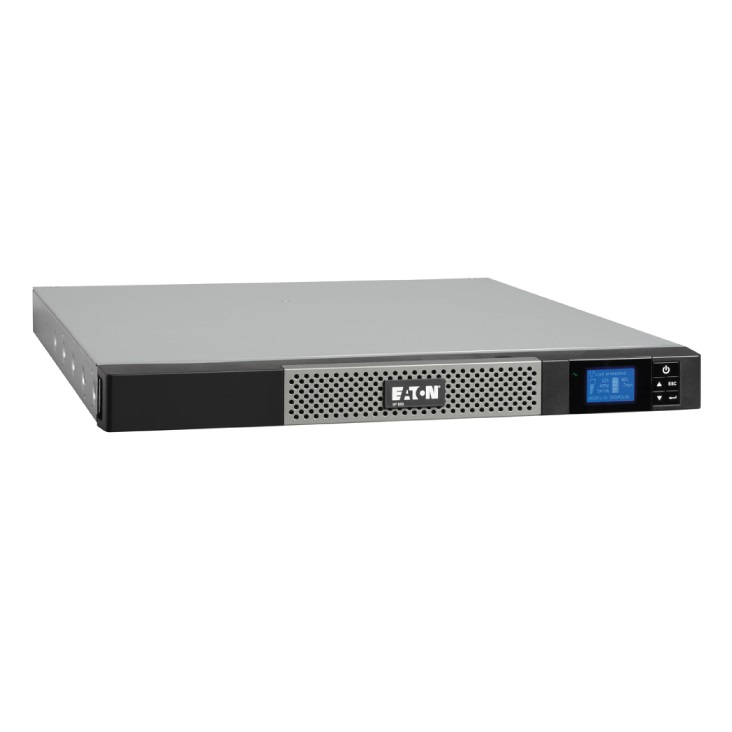

Eaton 5P650iR 5P 650VA / 420W Line Interactive UPS Rack 1U

Eaton 5P650iR 5P 650VA / 420W Line Interactive UPS Rack 1U
  • 33115_thumb_P_1516764772896
$599.0
or 4x fortnightly payments of $330 with ZipPay
Learn more

Pick Up Time :

Get a $5 credit or a free drink if order not ready on pick up time.

Delivery:

Next Day Dispatch - Order within 68hrs and 58mins

- +
Want to be notified when this item is available for order?

Please enter a valid email address

By clicking Let me know, you agree to our Terms & Conditions and to receive email updates and exclusive promotions, which you may unsubscribe from any time.

WishAdd to Wishlist

   Your Store   Question Mark

Your store is set to:

Check live stock level

Bell  Stock Levels May Vary

Make sure to have the correct store selected. Stock levels are different at every store!
We don't do walk-ins, please make sure to order online for Pickup.

Specifications

  • Product Name:
    Eaton 5P650iR 5P 650VA / 420W Line Interactive UPS Rack 1U
  • Model Number:
    PW90394
  • Brand:
  • Manufacturer Warranty:
    3 Year

Description




The Eaton 5P is a Line interactive, density optimised (up to 1550VA in 1U) power protection for IT & Telecom environment. Wide power management capabilities offering point-to-point and network supervision.



General
TopologyLine-Interactive High Frequency (Pure Sinewave, Booster + Fader)
ConfigurationRack 1U
Part Number5P650iR
Rating (VA/Watts)650/420
Dimensions (H x W x D, mm)43.2 x 438 x 364
Weight (kg)8.6
Warranty3 years on electronics, 2 years on batteries
Contents
(Ships with the following items)
5P UPS
Eaton Intelligent Power Software CD
USB cable
Serial cable
Safety guide
Quick start guide
CD with 10-language user manual
Electrical Input
Connection(1) IEC-320-C14
Input Voltage Without Using Batteries160V-294V (adjustable to 150V-294V)
Input frequency Range Without Using Batteries47 to 70Hz (50 Hz system), 56.5 to 70Hz (60 Hz system), 40Hz in low-sensitivity mode
Electrical Output
Voltages230 V (+6/-10 %) (Adjustable to 200V / 220V / 230V / 240V)
Output Receptacles(4) IEC-320-C13
Remotely controlled sockets2 groups of C13 (10 A) output receptacles, grouped 1+1
Output Frequency50/60 Hz +/- 0.1 % (autosensing)
Battery
Battery ManagementABM® & temperature compensated charging method (user selectable), automatic battery test, deep discharge protection
Cold start (No mains power)Yes
Communications
User Interface3 LEDS + Multilingual LCD : access to measures, alarm messages and customization
Communication Ports1 USB port + 1 RS232 serial port and relay contacts (USB and RS232 ports cannot be used simultaneously), 1 mini-terminal block for remote ON/OFF and Remote Power Off
Communications Card Slots1 slot for Network-MS card, ModBus-MS or Relay-MS cards
Environmental & Standards
Audible Noise< 40 dBA
Operating Temperature0 to 35°C
Safety markingsIEC/EN 62040-1
EMC MarkingsIEC/EN 62040-2 class B (EMC), IEC/EN 62040-3 (performance), C-Tick
ApprovalsCE, CB report
QualityDesigned, manufactured and marketed under ISO9001 & ISO14001 quality system


  • Specifications are subject to change without notice.

  • Specifications may vary.

  • The product picture(s) is only for your reference, it may differ from the actual product.
