EK HDC Fitting 12mm G1/4 Blue

EK HDC Fitting 12mm G1/4 Blue
  • 30696_thumb_P_1562032219240
  • 30696_thumb_P_1562032233742
$5.0
or 4x fortnightly payments of $330 with ZipPay
Learn more

Pick Up Time :

Get a $5 credit or a free drink if order not ready on pick up time.

Delivery:

Next Day Dispatch - Order within 40hrs and 18mins

- +
Want to be notified when this item is available for order?

Please enter a valid email address

By clicking Let me know, you agree to our Terms & Conditions and to receive email updates and exclusive promotions, which you may unsubscribe from any time.

WishAdd to Wishlist

   Your Store   Question Mark

Your store is set to:

Check live stock level

Bell  Stock Levels May Vary

Make sure to have the correct store selected. Stock levels are different at every store!
We don't do walk-ins, please make sure to order online for Pickup.

Specifications

  • Product Name:
    EK HDC Fitting 12mm G1/4 Blue
  • Model Number:
    3831109846049
  • Brand:
  • Manufacturer Warranty:
    1 Year

Description

EK HDC Fitting 12mm G1/4 Blue

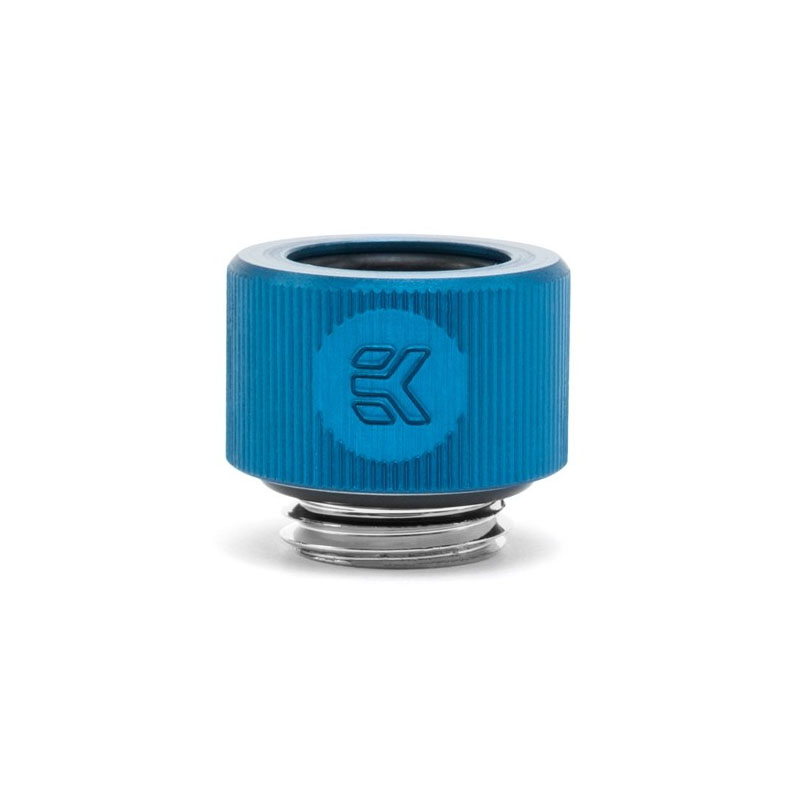

EK-HDC Fitting is a solid-tube compression fitting, designed for use with solid tubing such as Acrylic, Copper, Stainless Steel or any other type of compatible hard tube.


EK-HDC Fitting is a more secure variant of the EK-HD Adapter fitting as it prevents solid tube to be pulled out of the fitting by compressing the rubber gasket underneath the ring.


The barb is made of black nickel-plated CNC machined brass while the ring is made of blue anodized CNC machined aluminum and feature quality O-rings. These fittings are fully compatible with EK-CSQ series (45°/90°) angled adapters.


PLEASE NOTE:


Please wet the gasket (o-ring) using drops of water prior to installing the solid tube.

Do not use excessive force when inserting solid tube!

Do not use excessive force when attaching fitting barbs using Allen Key 9mm in order to prevent damage!

It is mandatory to chamfer the edges of the freshly cut solid tube in order to prevent gasket (o-ring) damage. EK recommends a 0.5mm x 45° chamfer.

This product should NOT be installed with any aluminum Fluid Gaming parts!


EK HDC Fitting 12mm G1/4 Blue





Specifications


  • thread: G1/4" BSP; 4.5mm male thread lenght

  • supported tube: 12mm (OD)

  • outer diameter of a fitting: 19mm

  • installed height: 12mm

  • compatible tubing: solid Acrylic-, Copper-, Brass- or Stainless Steel tube

  • ROHS Compliant!
