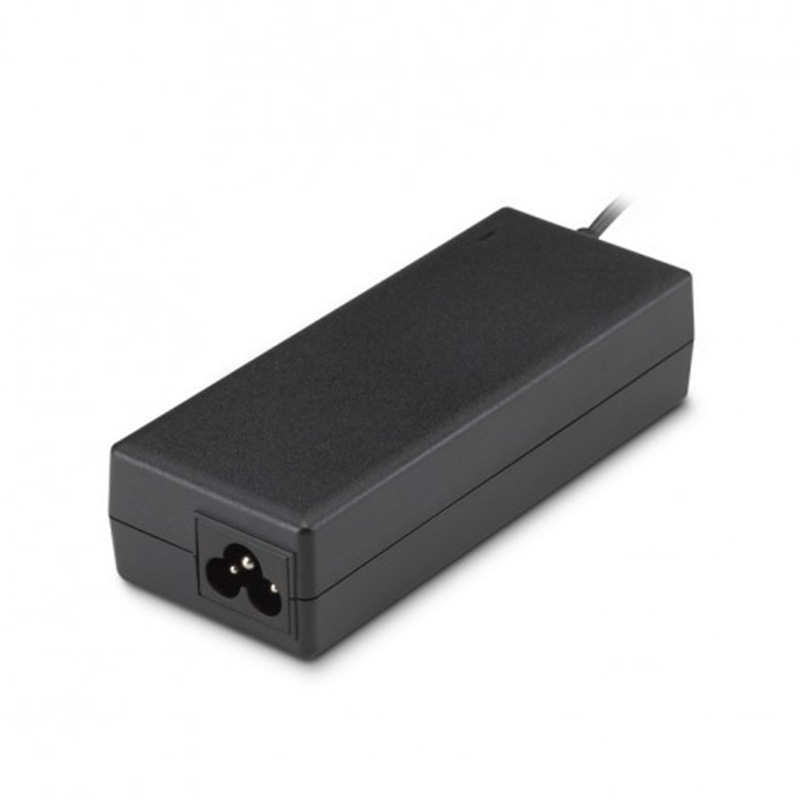

FSP 90W AC to DC Power Adapter with 9 Interchangable Tips for Laptop and NUC
Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.
FSP 100W USB PD Type C AC Adapter
Meet IEC 62368 & IEC 60950
Meet Code of Conduct Version 5 Tier 2
High Reliability
EMC Standard: EN55032 / EN55024 Class B
Over Current Protection
Over Temperature Protection
Over Voltage Protection
With PFC Circuit
SPECIFICATIONS:
INPUT SPECIFICATIONS
Input voltage
90-264 VAC
Input frequency
47-63 Hz
Input current
100Vac, 240Vac / full load ≦ 1.5A
No load power consumption
115Vac , 230Vac ≦ 0.15W
Touch current
264Vac / 50Hz ≦ 0.25mA
OUTPUT SPECIFICATIONS
Output voltage/current
19V / 4.74A
Total output power
90W
Protection
Over voltage:
The adapter will enter into shut down that means no output while over voltage happened at output terminal that caused by internal fault,the output trip voltage shall not exceed 28 vlots.That will be return to normal state by AC reset
Short circuit & Over current:
When an internal fault occurs,or an external fault is applied to the output, the power suppy shall shut down and enter auto-recovery mode.
Over temperature:
The power supply shall shut down
Brown-out:
Set at 55Vac~65Vac
Environment
Working TEMP: 0~70 ℃ (>=40℃ de-rating )
Storage TEMP:-20~+80℃
Working Humidity: 20~80% RH non-condensing
Storage Humidity: 10~90% RH non-condensing
Product Name:
FSP 90W AC to DC Power Adapter with 9 Interchangable Tips for Laptop and NUC
