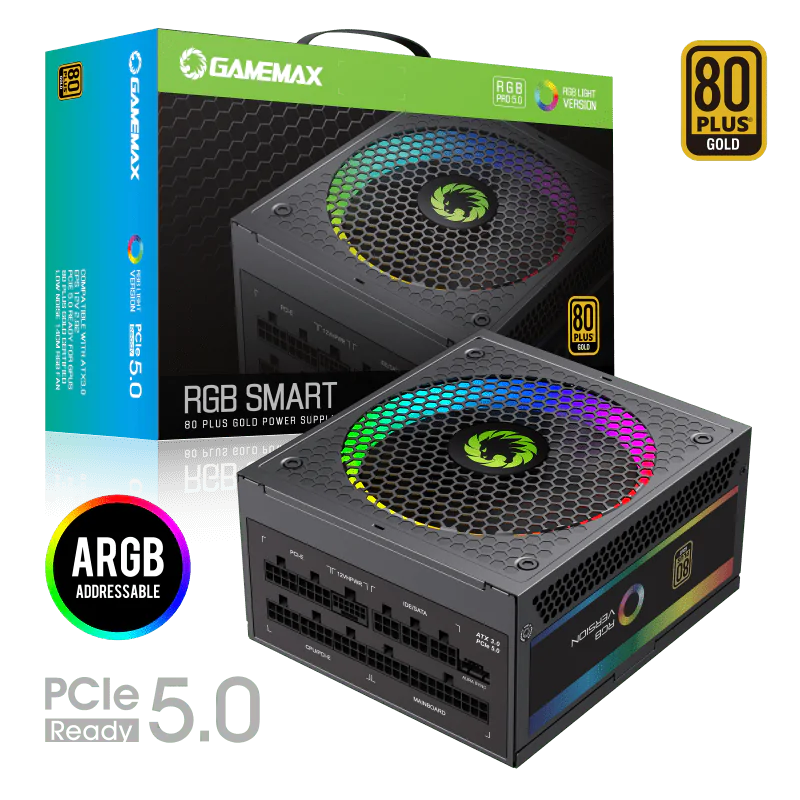

Gamemax RGB 1050W 80+Gold Power Supply ATX3.0 PCIE5
80+ Gold certified ATX3.0 PSU with 1×12VHPWR (RTX 40 series), DC‑DC single +12V rail, fully modular, 140 mm ARGB fan (25 modes, fluid‑dynamic bearing, 50 k h life), Japanese 105 °C caps and OPP/OVP/UVP/OCP/OTP/SCP protection.
Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.
Specifications
Product Name:
Gamemax RGB 1050W 80+Gold Power Supply ATX3.0 PCIE5
GameMax RGB-1050 PRO ATX3.0 PCIe5.0,80+ Gold Certified, LLC+DC-DC design for Powerful single +12V rail helps ensure a stable and reliable supply to other PC components. 140mm ARGB fan helps deliver brighter and stunning light effects and supports synchronization of ARGB motherboards from ASUS, GIGABYTE, MSI, and ASRock for countless illumination possibilities. ⚡80 Plus Gold Certified: It is with 90% efficiency under typical loads. Lower power consumption, less noise, and Auto temperature control. ⚡ATX3.0 power supply version, with 1x12VHPWR connector, Bron for RTX40 series GPU cards! ⚡RGB Light Mode: Support Aura SYNC also Built-in 25 RGB lighting modes with memory function, press the RGB button to choose your favorite mode or even OFF light mode! ⚡Fully Modular: Free-Cable Design, Farewell to messy cables! The daughterboards are directly soldered to the motherboard for better heat dissipation and impressive output power quality. ⚡Ultra-Quiet Fan: The 140mm ultra-quiet fan keeps your power supply quiet while maintaining good heat dissipation. ⚡Output and Protection: Excellent JAPAN 105℃ Capacitors offer stability, durability, and reliability, Powerful single +12V rails offer stable DC output support for high-end GPU and PC systems. OPP/OVP/UVP/SCP/OCP protection is included.
80PLUS®
Cetificate
GOLD
Form Factor
Power Supply
Intel ATX 3.0 PCIe5.0
Dimensions
170 mm (L) x 150 mm (W) x 86 mm (H)
Fan Information
Fan Size
140mm with ARGB LEDs
Fan Control
Temperature control
Fan Bearing
Fluid Dynamic Bearing
Life Expectancy
50,000 hours
Cable Information
Modularity
Fully Modular
Cable type
Flat black cables
Electrical Features
Operating Temperature
0-50 °C (derating from 100 % to 80 % from 40 °C to 50 °C)
MTBF
100,000 Hours (@ 25 °C, Excl. fan)
AC Input
Full Range
Protection
OPP, OVP, UVP, OCP, OTP, SCP
Safety Ceritificate
Safety and EMC
cTUVus, TUV, CB, CCC, EAC, CE
Environmental
Compliance
RoHS
RGB Modes Operation Instructions:
Key Function
RGB LED Status
Turn On, Entry last Mode
Keep the Save memory mode
Press RGB Switch
Select RGB light mode
Press and Hold in 3sec
OFF the RGB LED light
Press the Switch again
White light flashes once and Entry in o the last mode
Press Longer Don't release
Entry Self-Test mode(All led White Light）
Release after Press longer
Exit Self-Test mode, Entry Last memory mode
Aura SYNC
Access external ARGB HUB or 5V 3pin signal from motherboard
