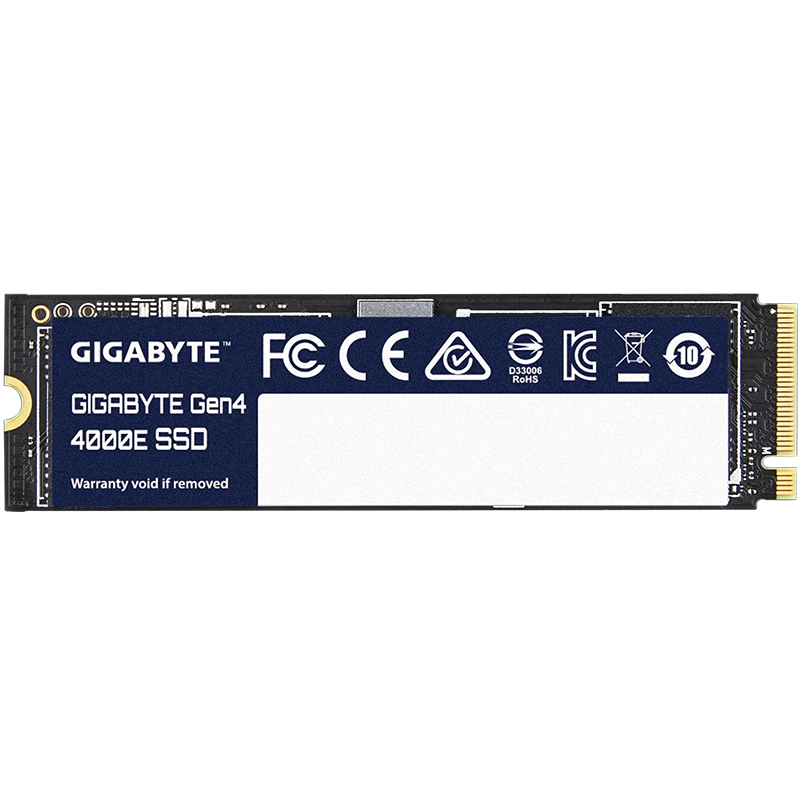

1TB PCIe 4.0x4 NVMe SSD in M.2 2280 form factor delivering up to 4000 MB/s read and 3900 MB/s write, 1.5 M‑hour MTBF, low power (5 mW idle), compact 22×2.3×80 mm size, operating from 0‑70 °C.
Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.
SPECIFICATIONS:
Interface
PCI Express 4.0x4, NVMe 1.4
Form Factor
M.2 2280
Total Capacity
1000GB
External DDR Cache
N/A
Sequential Read speed
Up to 4000 MB/s
Sequential Write speed
Up to 3900MB/s
Dimension
22 x 2.3 x 80 mm
Mean time between failure (MTBF)
1.5 million hours
Max. Operating Power
Read: 4400mW
Write: 4000mW
Power Consumption (Idle, PS3)
50mW
Power Consumption (PS4, L1.2)
5mW
Temperature (Operating)
0°C to 70°C
Temperature (Storage)
-40°C to 85°C
Note
• Test system configuration: configuration may vary by models, we will choose the latest platform for verification.
• Performance may vary based on SSD's firmware version and system hardware & configuration. Sequential performance measurements based on CrystalDiskMark and IOmeter 1.1.0.
• Speeds based on internal testing. Actual performance may vary.
• 1GB = 1 billion bytes. Actual useable capacity may vary.
