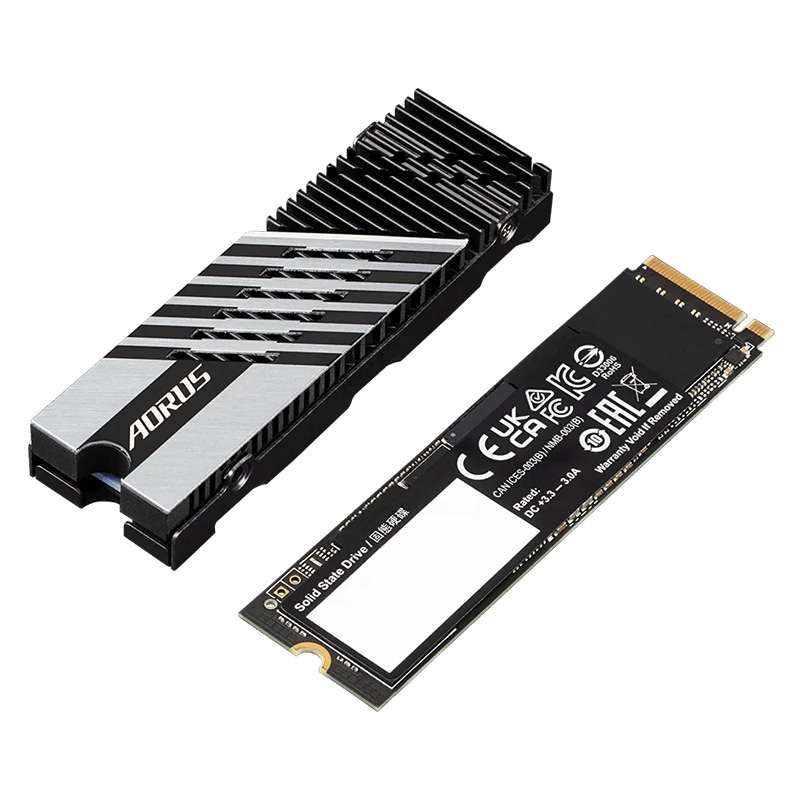

Gigabyte Aorus 1TB PCIe Gen4 M.2 2280 NVMe SSD (GP-AG4731TB)

Form Factor

M.2 2280

Total Capacity

1000GB

NAND

3D TLC NAND Flash

External DDR Cache

DDR4L 1GB

Sequential Read speed

Up to 7300 MB/s

Sequential Write speed

Up to 6000 MB/s

Dimension

80 x 22 x 2.3 mm (with heatsink: 80.5 x 11.25 x 23.5 mm)

Mean time between failure (MTBF)

1.6 million hours

Power Consumption (Active)

Average: R : 6.6W, W : 6.7W

Power Consumption(Idle)(ASPT on)

<30mW

Temperature (Operating)

0°C to 70°C

Temperature (Storage)

-40°C to 85°C

Warranty

1. Limited 5-years or 700TBW.

2. Limited warranty based on 5 years or 700TBW, whichever comes first. (*TBW is evaluated by JEDEC workload standard. )

*TBW (Terabyte Written): Terabytes Written is the total amount of data that can be written into a SSD before it is likely to fail.

3. When the usage of an NVME SSD as indicated by the "Percentage Used" (SMART ID: 05) in SMART page of "GIGABYTE SSD toolbox" reaches 100 means out of warranty. (A new unused product will show the number of 0)

Note

• Test system configuration: configuration may vary by models, we will choose the latest platform for verification.

• Performance may vary based on SSD's firmware version and system hardware & configuration. Sequential performance measurements based on CrystalDiskMark and IOmeter 1.1.0.

• Speeds based on internal testing. Actual performance may vary.

• 1GB = 1 billion bytes. Actual useable capacity may vary.

Test Configuration

OS: Windows 11 22H2 (OS build 22621.819)

CPU: AMD Ryzen 9 7950X 16-Core Processor 4.5G

Memory: DDR5 5600 16GBx2

Chipset: AM5 X670 (X670E AORUS MASTER)
