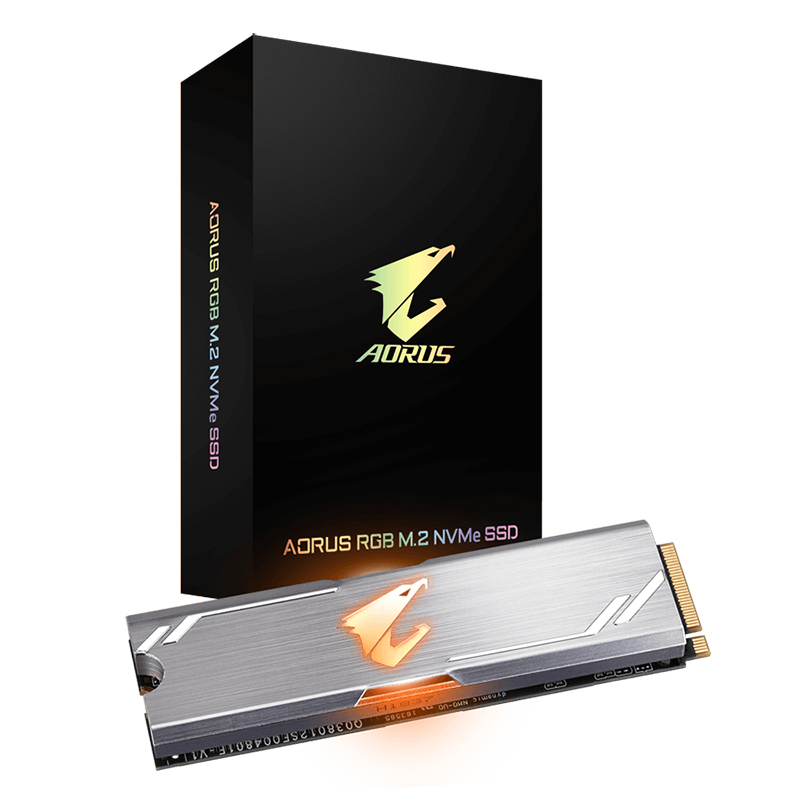

Gigabyte Aorus 512GB PCIe 3.0 M.2 2280 NVMe SSD (GP-ASM2NE2512GTTDR)

Interface

PCI-Express 3.0 x4,   NVMe 1.3

Form Factor

M.2 2280

Warranty

Limited 5-years or   800TBW

NAND

3D TLC NAND FLASH

External DDR Cache

512MB

Sequential Read speed

Up to 3480 MB/s

Sequential Write speed

Up to 2000 MB/s

Random Read IOPS

up to 360K

Random Write IOPS

up to 440K

Mean time between failure   (MTBF)

1.8 million hours

Power Consumption   (Active)

Average : R : 5485mW ;   W : 4085mW

Power Consumption (Idle)

272mW

Temperature (Operating)

0°C to 70°C

Temperature (Storage)

-40°C to 85°C

Note

* Test system   configuration: configuration may vary by models, we will choose the latest   platform for verification.

* Performance may vary   based on SSD's firmware version and system hardware & configuration.   Sequential performance measurements based on CrystalDiskMark v.5.1.2 and   I0meter 1.1.0.

* Speeds based on   internal testing. Actual performance may vary.

* TBW (Terabyte   Written):Terabytes Written" is the total amount of data that can be   written into an SSD before it is likely to fail.

* 1GB = 1 billion   bytes. Actual useable capacity may vary.

* 5 years or 800 TBW,   whichever comes first.
