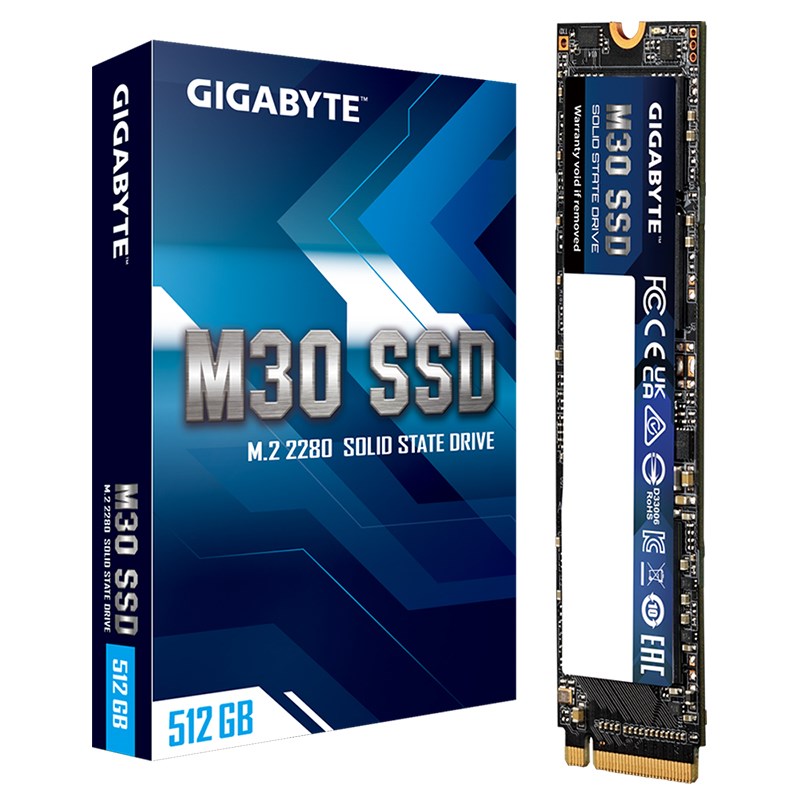

Gigabyte M30 512GB PCIe 3.0 M.2 2280 NVMe SSD (GP-GM30512G-G)

Form Factor

M.2 2280

Total Capacity

512GB

NAND

3D TLC NAND Flash

External DDR Cache

DDR3L 2Gb

Sequential Read speed

Up to 3500 MB/s

Sequential Write speed

Up to 2600 MB/s

Random Read IOPS

up to 350K

Random Write IOPS

up to 302K

Dimension

22 x 2.3 x 80 mm

Mean time between failure   (MTBF)

2 million hours

Power Consumption   (Active)

Average: R: 5.9W, W:5W

Power Consumption (Idle)

L0/L0s/L1: 900mw

L1.2 < 3mw

Temperature (Operating)

0°C to 70°C

Temperature (Storage)

-40°C to 85°C

Note

• Test system   configuration: configuration may vary by models, we will choose the latest   platform for verification.

• Performance may vary   based on SSD's firmware version and system hardware & configuration.   Sequential performance measurements based on CrystalDiskMark and IOmeter   1.1.0.

• Speeds based on   internal testing. Actual performance may vary.

• 1GB = 1 billion   bytes. Actual useable capacity may vary.
