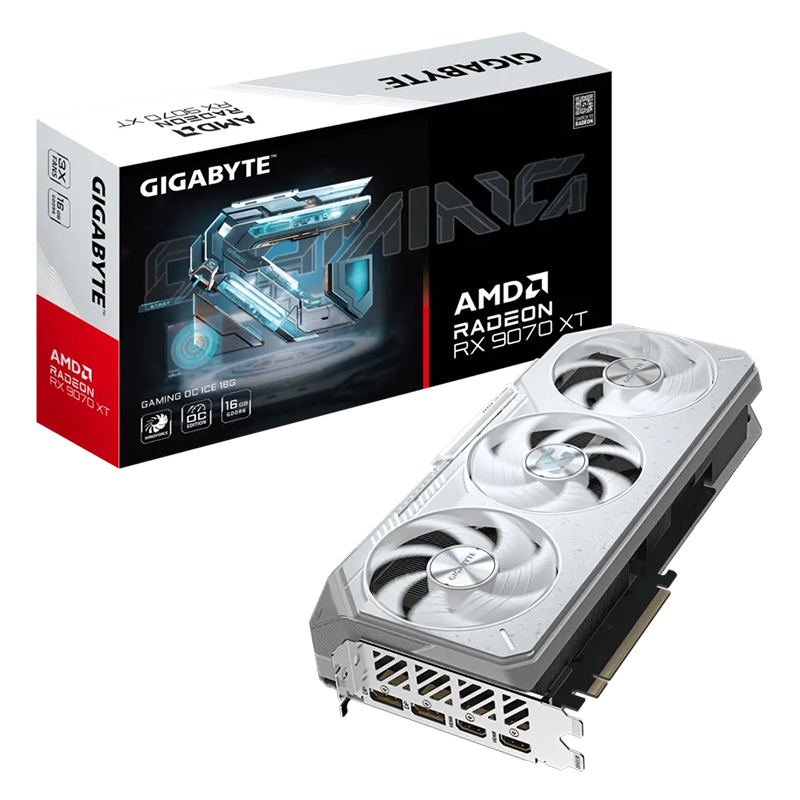

Radeon™ RX 9070 XT graphics card delivers up to 3060 MHz boost (2520 MHz game) with 4096 stream processors, 16 GB GDDR6 on a 256‑bit bus (20 Gbps). PCIe 5.0, DP 2.1a ×2, HDMI 2.1b ×2, supports 8K (7680×4320), DirectX 12, OpenGL 4.6, 850 W PSU, 3×8‑pin.
Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.
SPECIFICATIONS:
Graphics Processing
Radeon™ RX 9070 XT
Core Clock
Boost Clock* : up to 3060 MHz (Reference card: 2970 MHz)
Game Clock* : up to 2520 MHz (Reference card: 2400 MHz)
Stream Processors
4096
Memory Clock
20 Gbps
Memory Size
16GB
Memory Type
GDDR6
Memory Bus
256 bit
Card Bus
PCI-E 5.0
Digital max resolution
7680x4320
Multi-view
4
Card size
L=288 W=132 H=56 mm
PCB Form
ATX
DirectX
DirectX 12 API
OpenGL
4.6
Recommended PSU
850W
Power Connectors
8 pin*3
Output
DisplayPort 2.1a *2
HDMI 2.1b *2
Accessories
Quick guide
Note
“Boost Clock” is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads. GD-151
* “Game Clock” is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary. GD-147
