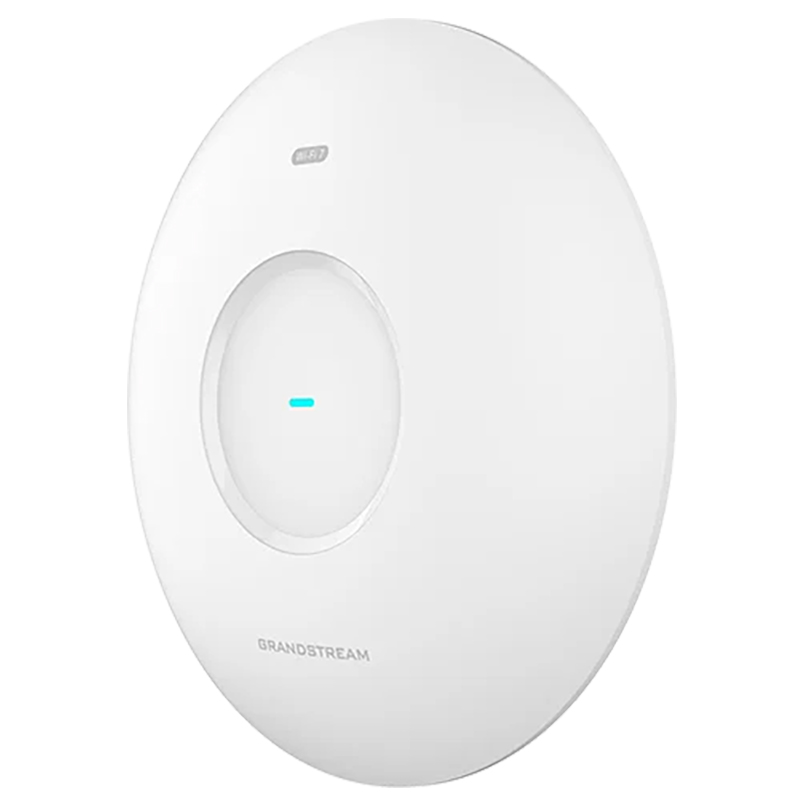

Grandstream GWM Tri-Band 2x2:2 MIMO with MLO, 4KQAM, MRU Wi-Fi 7 Wireless Access Point
The GWN7672 is a powerful enterprise-grade Wi-Fi 7 access point that provides wireless speeds up to 11Gbps (BE11000), ideal for demanding environments with medium to high user density.
1Gbps aggregate wireless throughput, 10Gbps aggregate wired throughput Integrated Wi-Fi 7 & Tri-band 2x2:2 MIMO with MLO, 4KQAM, MRU, Preamble Puncturing Technology Up to 175-meter coverage range Supports 384 concurrent Wi-Fi client devices Advanced QoS to ensure real-time performance of low-latency applications Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device Self-power adaptation upon auto-detection of PoE+ Embedded controller manages up to 50 local GWN APs; GDMS Networking offers unlimited AP management, & GWN Manager offers on-premise software AP management
SPECIFICATIONS:
Wi-Fi Standards | IEEE 802.11 a/b/g/n/ac/ax/be | Antennas | 7 single-frequency antennas • 2.4 GHz: 2 × 3.5 dBi • 5 GHz: 2 × 5.5 dBi • 6 GHz: 2 × 5.5 dBi • BT: 1 × 3.5 dBi | Wi-Fi Data Rates | 2.4 GHz: IEEE 802.11be: Up to 688 Mbps IEEE 802.11ax: 7.3 Mbps to 574 Mbps IEEE 802.11n: 6.5 Mbps to 300 Mbps IEEE 802.11b: 1, 2, 5.5, 11 Mbps IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 5 GHz: IEEE 802.11be: Up to 4,320 Mbps IEEE 802.11ax: 7.3 Mbps to 2,402 Mbps IEEE 802.11ac: 6.5 Mbps to 1,732 Mbps IEEE 802.11n: 6.5 Mbps to 600 Mbps IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 6 GHz: IEEE 802.11be: Up to 5,765 Mbps IEEE 802.11ax: 8 Mbps to 4,802 Mbps *Actual throughput may vary depending on many factors including environmental conditions, distance between devices, radio interference in the operating environment and mix of devices in the network | Frequency Bands | 2.4 GHz Radio: 2,400–2,483.5 MHz 5 GHz Radio: 5,150–5,850 MHz 6 GHz Radio: 5,945–7,125 MHz *Not all frequency bands can be used in all regions | Channel Bandwidth | 2.4 GHz: 20 and 40 MHz 5 GHz: 20, 40 , 80 , 160 and 240 MHz 6 GHz: 20, 40 , 80, 160 and 320 MHz | Wi-Fi and System Security | WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES), WPA3, Unique Security Certificate and Random Default Password per Device, Anti-Hacking Secure Boot, Critical Data and Control Lockdown via Digital Signatures | MIMO | 2x2:2 2.4 GHz 2x2:2 5 GHz 2x2:2 6 GHz Coverage Range Up to 175 m (574.15 ft) *Coverage range can vary based on environment | Maximum TX Power | 2.4 GHz: 26 dBm 5 GHz: 25 dBm 6 GHz: 24 dBm *Maximum power varies by country, frequency band and MCS rate | Receiver Sensitivity | 2.4 GHz 802.11b: -96 dBm@1 Mbps, -88 dBm@11 Mbps; 802.11g: -93 dBm@6 Mbps, -75 dBm@54 Mbps 802.11n 20 MHz: -73 dBm@MCS7; 802.11n 40 MHz: -70 dBm@MCS7 802.11ax 20 MHz: -65 dBm@MCS11; 802.11ax 40 MHz: -62 dBm@MCS11 802.11be 20 MHz: -65 dBm@MCS13; 802.11be 40 MHz: -62 dBm@MCS13 5 GHz 802.11a: -92 dBm@6 Mbps, -74 dBm@54 Mbps 802.11n 20 MHz: -73 dBm@MCS7; 802.11n 40 MHz: -70 dBm@MCS7 802.11ac 20 MHz: -70 dBm@MCS8; 802.11ac 40 MHz: -65 dBm@MCS9; 802.11ac 80 MHz: -62 dBm@MCS9; 802.11ac 160 MHz: -59 dBm@MCS9 802.11ax 20 MHz: -64 dBm@MCS11; 802.11ax 40 MHz: -61 dBm@MCS11; 802.11ax 80 MHz: -59 dBm@MCS11; 802.11ax 160 MHz: -55 dBm@MCS11 802.11be 20 MHz: -59 dBm@MCS13; 802.11be 40 MHz: -56 dBm@MCS13; 802.11be 80 MHz: -54 dBm@MCS13; 802.11be 160 MHz: -52 dBm@MCS13 6 GHz 802.11ax 20 MHz: -62 dBm@MCS11; 802.11ax 40 MHz: -59 dBm@MCS11; 802.11ax 80 MHz: -57 dBm@MCS11; 802.11ax 160 MHz: -53 dBm@MCS11; 802.11ax 320 MHz: -51 dBm@MCS11 802.11be 20 MHz: -57 dBm@MCS13; 802.11be 40 MHz: -54 dBm@MCS13; 802.11be 80 MHz: -52 dBm@MCS13; 802.11be 160 MHz: -50 dBm@MCS13; 802.11be 320 MHz: -47 dBm@MCS13 SSIDs 48 SSIDs total, 16 per radio (2.4 GHz, 5 GHz, and 6 GHz) | Concurrent Clients | 384 | Network Interfaces | 2 × 5 GbE RJ45 ports | Auxiliary Ports | 1 × Reset Pinhole, 1 × Kensington lock | Bluetooth® | Bluetooth Low Energy 5.3 | Mounting | Indoor wall mount or ceiling mount, kits included | LED | 1 tri-color LED for device tracking and status indication | Network Protocols | IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM | QoS | 802.11e/WMM, VLAN, TOS | Network Management | Embedded controller can manage up to 50 local GWN APs GDMS Networking offers a free cloud management platform for unlimited GWN APs GWN Manager offers premise-based software controller for up to 3,000 GWN Aps | Power and Green Energy Efficiency | PoE+ 802.3at; Maximum Power Consumption: 25 W | Environmental | Operation Temperature: 0 °C to 45 °C (32 °F to 113 °F) Storage Temperature: -30 °C to 60 °C (-22 °F to 140 °F) Humidity: 10% to 90%, non-condensing | Physical | Unit Dimension: Ø220 mm × 54 mm (Ø8.66″ × 2.13″) Unit Weight: 838.4 lb (1.85 lb) Package Dimension: 275 mm × 266 mm × 76 mm (10.83″ × 10.47″ × 2.99″) Package Weight: 1,271.4 g (2.80 lb) | Package Content | GWN7672 Wi-Fi 7 Wireless AP, Mounting Kits, Quick Start Guide | Compliance | FCC, CE, RCM, IC |
|
