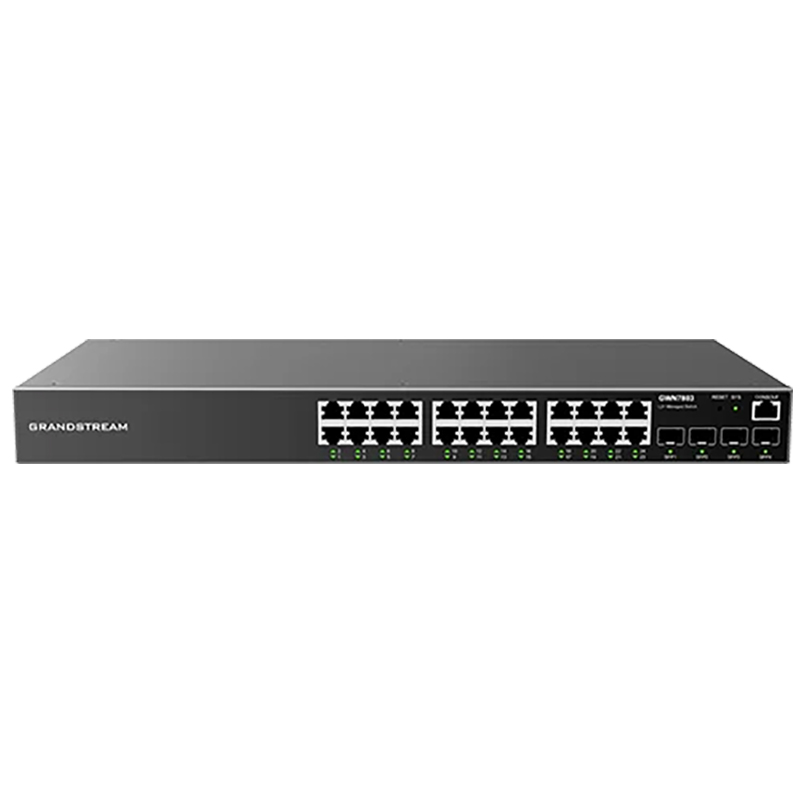

SPECIFICATIONS: Network Protocols | IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1d, IEEE 802.1s, IEEE 802.1x | Memory | 128 MB RAM, 32 MB Flash | Jumbo Frame (Bytes) | 10240 | PoE Standards | / | Gigabit Ethernet Ports | 24 | 1G SFP Ports | 4 | Console | 1 | PoE Ports | / | Integrated Power Supply | 30 W | Max Output Power per PoE Port | / | Max Total PoE Output Power | / | PoE Standards | / | Surge Protection | ± 6 kV CM and DM for power ± 4 kV CM for network ports | ESD | ± 12 kV for contact discharge | Other Ports | 1 × Reset Pinhole | Forwarding Mode | Store-and-forward | Total non-blocking throughput | 28 Gbps | Switching Capability | 56 Gbps | Forwarding Rate | 41.66 Mpps | Packet Buffer | 4.1 Mb | Network Latency Avg | <4 μs | Switching | • 8K MAC addresses, including static, dynamic, filtering and sticky MAC address • 4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, MAC-based VLAN, protocol-based VLAN,QinQ • Voice VLAN including auto voice VLAN, tagged OUI and untagged OUI • 16 VLAN virtual interface with 9216 MTU • 256 ARP/NDP • 8 link aggregation groups • Spanning tree, 16 instances for STP/RTSP/MSTP/PVST(+)/RPVST(+) | Routing | 32(IPv4)/32(IPv6) static routing, which supports user-defined static routing entries | Multicast | • IGMP Snooping with IGMPv2 and IGMPv3, 256 IGMP Snooping groups • MLD Snooping with MLDv1 and MLDv2, 256 MLD Snooping groups • MVR | QoS/ACL | • Port priority • Priority mapping • Queue scheduling, including SP, WRR, WFQ, SP-WRR and SP-WFQ • Traffic shaping • Rate limit • 128 ACLs for Ethernet, IPv4, and IPv6 with 1.5K total ACEs | DHCP | DHCP server, DHCP relay, Option 82, 60,160 and 43 | Maintenance | • CPU and memory monitoring • Fault detection and alarm for fan • SNMP including SNMPv1, SNMPv2c, SNMPv3 • RMON • LLDP&LLDP-MED • Backup and restore • Syslog • Alert • Diagnostics include Ping, Ping Watchdog, Traceroute, Port Mirroring (SPAN and RSPAN), UDLD (TBD), copper testing, fiber module monitoring, and one-click debugging • Upgrade via FTPS / TFTP / HTTP / HTTPS or local upload, mass provisioning using DHCP Option / TR-069 (pending) / GDMS Networking / GWN Manager / GWN router | Security | • User hierarchical management and password protection, HTTPS, SSH, Telnet • Identity authentication including 802.1X and MAC authentication • AAA authentication including RADIUS, TACACS+ • Storm control • Port isolation, port security, sticky MAC • Filtering MAC address • IP/IPv6 source guard, DoS attack prevention, ARP inspection • DHCP/DHCPv6 Snooping • Loop protection including BPDU protection, root protection and loopback protection • Kensington Security Slot (Kensington Lock) support • Firmware signature | LEDs | 1 x tri-color LED for device tracking and status indication 28 x green LEDs for data ports | Fan | / | Environmental | Operating Temperature: 0 °C to 45 °C (32 °F to 113 °F ); Operating Humidity: 10–90% (RH), non-condensing Storage Temperature: -10 °C to 60 °C (14 °F to 140 °F ), Storage Humidity: 5%–95%, non-condensing | Dimensions | 440 mm × 200 mm × 44 mm (17.32″ × 7.87″ × 1.73″) (L × W × H) | Unit Weight | 2.7 kg (5.95 lb) | Mounting | Desktop, Wall Mount, or Rack Mount (rack mounting kits included) | Package Content | 1 × Switch 1 × 1.2 m (3.94 ft) AC Cable of 10 A 1 × 25 cm (9.84″) Ground Cable 1 × Simplified Quick Installation Guide 1 × Regulatory Information 4 × Rubber Footpads 8 × Flat Head Machine Screws (M3 × 6 mm) 2 x Rack Mounting Kits | Compliance | FCC, CE, RCM, IC, UKCA |
|
