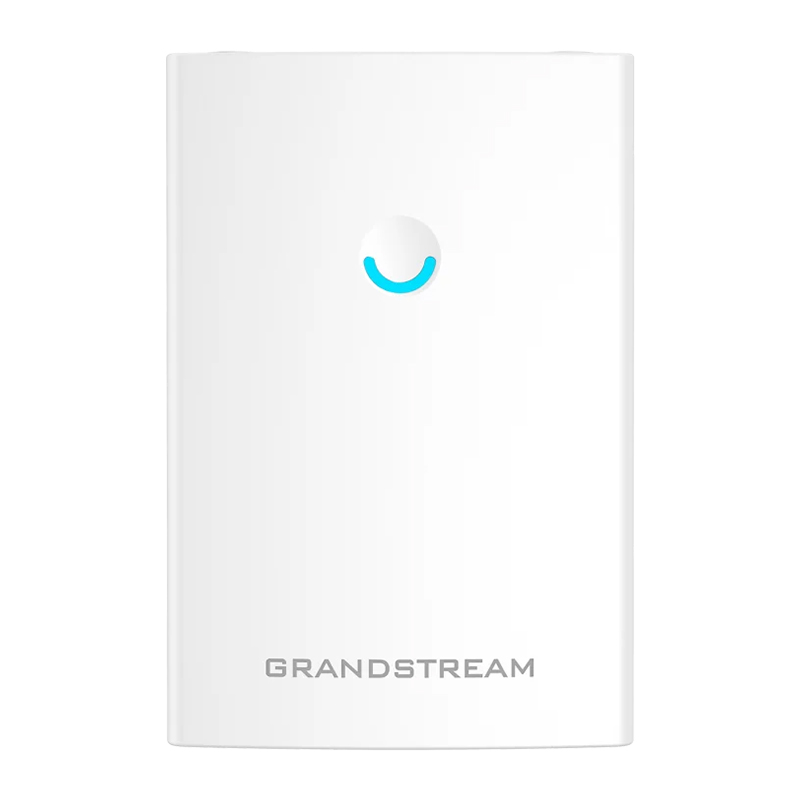

Grandstream GWN 4x4:4 802.11 ac Wave-2 Weatherproof Long-Range Access Point
The GWN7630LR is a long-range 802.11ac Wave-2 4x4:4 access point designed to provide next generation network coverage for indoor and outdoor environments.
2.33Gbps wireless throughput and 2x Gigabit wireline ports Dual-band 4x4:4 MIMO technology Self power adaptation upon auto detection of PoE/PoE+ Support up to 250+ concurrent Wi-Fi client devices Up to 300-meter coverage range Advanced QoS to ensure real-time performance of low-latency applications Anti-hacking secure boot and critical data/control lockdown Flexibility of detachable/ changeable antenna for different application scenarios Embedded controller can manage up to 50 local GWN series APs; GDMS Networking offers unlimited AP management Contact Sales
SPECIFICATIONS:
Wi-Fi Standards | IEEE 802.11a/b/g/n/ac (Wave-2) | Antennas | 4 detachable/changeable dual-band omnidirectional antennas 2.4GHz, gain 3.5dBi 5GHz, gain 3.5dBi | Wi-Fi Data Rates | IEEE802.11ac: 6.5 Mbpsto 1733Mbps IEEE 802.11a: 6, 9, 12,18, 24, 36, 48, 54 Mbps IEEE 802.11n: 6.5Mbps to 600Mbps; 800Mbps with 256-QAM on 2.4Ghz IEEE 802.11b: 1, 2, 5.5, 11Mbps IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps *Actual throughput may vary depending on many factors including environmental conditions, distance between devices, radio interference in the operating environment and mix of devices in the network | Frequency Bands | 2.4 GHz Radio: 2412 – 2484 MHz 5GHz Radio: 5150-5250MHz, 5250-5350MHz, 5470-5725MHz, 5725-5850MHz *Not all frequency bands can be used in all regions. | Channel Bandwidth | 2.4G: 20 and 40MHz 5G: 20, 40 and 80MHz | System Security | WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device | MIMO | 4x4:4 2.4G (MIMO), 4x4:4 5G (MU-MIMO) | Coverage Range | Up to 300 meters *Coverage range can vary based on environment | Maximum TX Power | 2.4G: 27 dBm 5G: 25 dBm *Maximum power varies by country, frequency band, and MCS rate | Receiver Sensitivity | 2.4G 802.11b: -96dBm@1Mbps, -88dBm@11Mbps; 802.11g: -93dBm @6Mbps, -75dBm@54Mbps; 802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz:-70dBm @MCS7 5G 802.11a: -92dBm @6Mbps, -74dBm @54Mbps; 802.11ac 20MHz: -67dBm@MCS8; 802.11ac: HT40:- 63dBm @MCS9; 802.11ac 80MHz: -59dBm @MCS9 | SSIDs | 16 SSID per radio | Concurrent Clients | Up to 250+ | Network Interfaces | 2× autosensing 10/100/1000 Base-T Ethernet Ports | Auxiliary Ports | 1× Reset Pinhole | Mounting | Wall mount or pole mount - kits included | LEDs | 1× tri-color LEDs for device tracking and status indication | Network Protocols | IPv4/IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM | QoS | 802.11e/WMM, VLAN, TOS | Network Management | Embedded controller can manage up to 50 local GWN APs GWN.Cloud offers a free cloud management platform for unlimited GWN APs GWN.Manager (coming soon) offers premise-based software controller for up to 3,000 GWN APs | Power and Green Energy Efficiency | PoE 802.3at; Max Consumption: 16.5W | Environmental | Operation: -30°C to 60°C Storage: -30°C to 70°C Humidity: 5% to 95% Non-condensing | Physical | Unit Dimension: 533.1 × 115 × 40mm; Unit Weight: 564g Unit + Mounting Kits Dimension : 533.1×115 ×62mm; Unit + Mounting Kits Weight : 706g Entire Package Dimension: 258 × 247× 86mm; Entire Package Weight: 978g | Package Content | GWN7630LR 802.11ac Wireless AP, Mounting Kits, Quick Start Guide | Weatherproof Grade | IP66-level weatherproof capability when installed vertically | Compliance | FCC, CE, RCM, IC |
|
