Network Protocol | IPv4, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at |
Gigabit Ethernet Ports | 8 |
PoE Out Ports | 4 |
Power Supply External | 5VDC/0.6A |
PoE Output | • Port 1-4 support 802.3af/at standard PoE out: - Up to 30W per port PoE out , total 60W Power Budget • Port 1-4 support 24VDC Passive mode via UI - Port 1 (up to 30W): 24V 4pair VH mode 1.3A 4pair VH mode Pins: 1,2,4,5 (+) ; 3,6,7,8 (-) - Port 2-4 (up to 15W): 24V 2pair mode, 0.65A 2pair normal mode Pins: 4,5 (+); 7,8 (-) • Port 1 (Up to 60W), support 48V 4 pair passive mode |
Max Total PoE Output Power | 60W |
Maximum Output Power per PoE Port | 30W |
Auxiliary Ports | 1x Reset Pinhole |
Forwarding Mode | Store-and-forward |
Total non-blocking throughput | 8Gbps |
Switching Capability | 16Gbps |
Jumbo Frame | 2K/3K/4K/5K/6K/7K/8//9K/12K/15K |
Forwarding Mode | 11.9Mpps |
Packet Buffer | 4Mb |
MAC | • 8K MAC address capacity |
VLAN | • Supports up to 32 VLANs (out of 4K VLAN IDs) • Port-based VLAN, 802.1Q VLAN • Voice VLAN |
LAG | 4 |
Multicast | IGMP Snooping, Report Message Suppression |
QoS | • Auto prioritization of the incoming port of the packet • Priority Mapping • Queue scheduling, including SP, WRR, WFQ • Supports port priority, 802.1p priority and DSCP priority • Bandwidth control • Rate limit |
DHCP | DHCP client |
Maintenance | • Storm control • DHCP Snooping • Spanning tree • Loop prevention • PoE Watchdog • Kensington Security Slot (Kensington Lock) support |
Security | • Storm control • DHCP Snooping • Spanning tree • Loop prevention • PoE Watchdog • Kensington Security Slot (Kensington Lock) support |
Mounting | Desktop/Wall-mount |

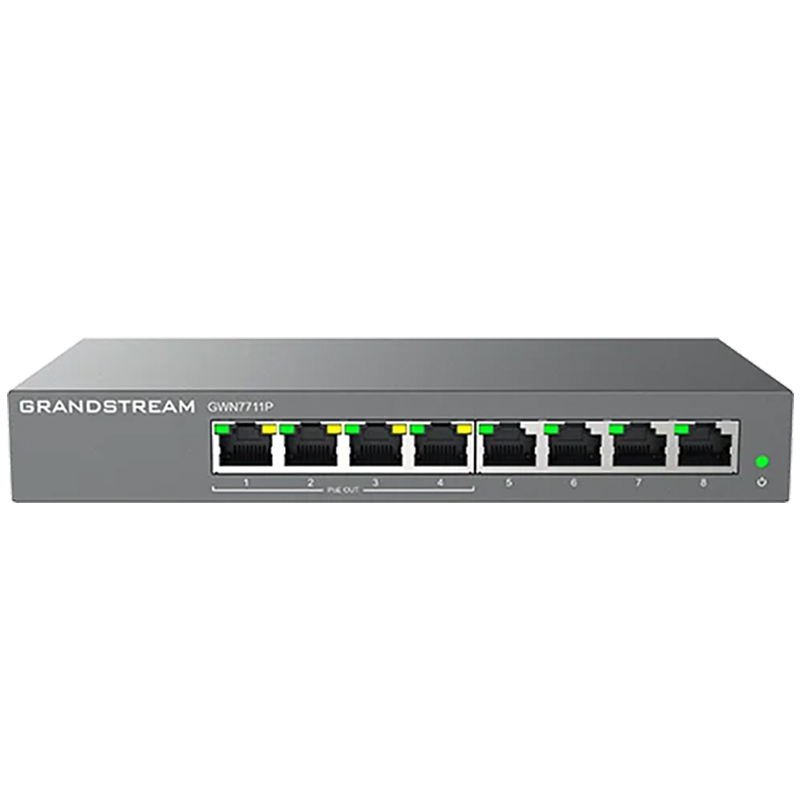

LED Indicators | Per Port: Link/Activity - Green GWN7711P Port 1-4: PoE power state - Yellow
Per Device: Power - Green |
Environmental | Operating Temperature: 0 to 40 °C (32 to 104 °F) Storage Temperature: -20 to 60 °C (-4 to 140 °F) Operating Humidity: 10% to 90% Non-condensing Storage Humidity: 10% to 90% Non-condensing |
Dimensions (LxWxH) | Unit: 190 x 100 x 28mm Package: 230 x 210 x 51mm |
Enclosure | Metal |
Weight | Unit: 0.44kg Entire Package: 0.92kg |
Package Content | 1x Switch, 1x QIG, 1x Power Adapter |
Compliance | FCC, CE, RCM, IC |
