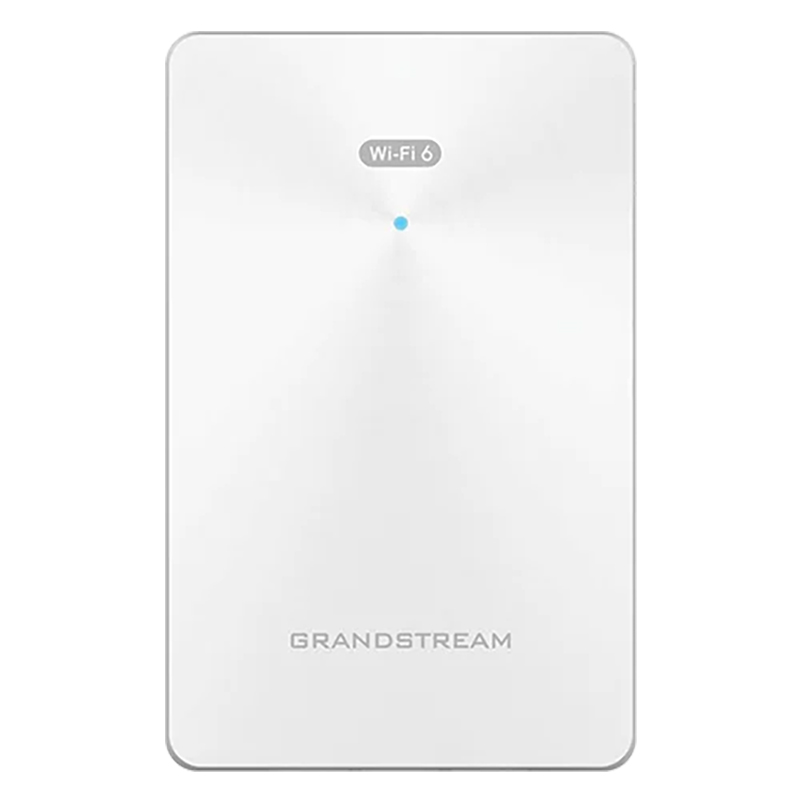

Grandstream GWN In-Wall AX3000 Wi-Fi 6 Wireless Access Point
The GWN7661E is an in-wall AX3000 Wi-Fi 6 access point designed for offices, hotels, homes, apartments, and more. It is the ideal Wi-Fi AP for voice-over-Wi-Fi deployments and offers a seamless connection with Grandstream's Wi-Fi capable IP phones.
3 Gbps wireless throughput and 4x Gigabit wireline ports 2x2:2 (2.4G) and 3x3:2 (5G) MU-MIMO and OFDMA technology Supports up to 256 concurrent Wi-Fi client devices Self-power adaptation upon auto-detection of PoE or PoE+ Advanced QoS to ensure real-time performance of low-latency applications Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device Embedded controller manages up to 50 local GWN APs; GDMS Networking offers unlimited AP management, & GWN Manager offers on-premise software AP management
SPECIFICATIONS:
Wi-Fi Standards | IEEE 802.11 a/b/g/n/ac/ax | Antennas | 2x dual-band internal antennas,1x 5G internal antenna Antenna1, 2.4G gain 3.0dBi, 5G gain 5.0dBi Antenna2, 2.4G gain 2.5dBi, 5G gain 4.5dBi 5G Antenna gain 4.5dBi | Wi-Fi Data Rates | 5G: IEEE 802.11ax: 7.3 Mbps to 2402 Mbps IEEE 802.11ac: 6.5 Mbps to 1732 Mbps IEEE 802.11n: 6.5Mbps to 300Mbps IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 2.4G: IEEE 802.11ax: 7.3 Mbps to 573.5 Mbps IEEE 802.11n: 6.5Mbps to 300Mbps IEEE 802.11b: 1, 2, 5.5, 11 Mbps IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps *Actual throughput may vary depending on many factors including environmental conditions, distance between devices, radio interference in the operating environment and mix of devices in the network | Frequency Bands | 2.4GHz Radio: 2412 - 2483.5 MHz 5GHz Radio: 5150 - 5895 MHz *Not all frequency bands can be used in all regions | Channel Bandwidth | 2.4G: 20 and 40 MHz 5G: 20, 40, 80 and 160 MHz | Wi-Fi and System Security | WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device | MIMO | 2×2:2 2.4GHz 3×3:2 5GHz | Coverage Range | Up to 100 meters *coverage range can vary based on environment | Maximum TX Power | 2.4G: 24dBm 5G: 26dBm *Maximum power varies by country, frequency band and MCS rate | Receiver Sensitivity | 5G 802.11a: -92dBm @6Mbps, -74dBm @54Mbps; 802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz:-70dBm @MCS7; 802.11ac 20MHz: -67dBm@MCS8; 802.11ac: 40MHz:- 63dBm @MCS9; 802.11ac 80MHz: -59dBm @MCS9; 802.11ax 20MHz: -60dBm @MCS11; 802.11ax 40MHz: -58dBm @MCS11;802.11ax 80MHz: -56dBm @MCS11 MCS11;802.11ax 160MHz: -52dBm@ MCS11 2.4G 802.11b: -96dBm@1Mbps, -88dBm@11Mbps; 802.11g: -93dBm @6Mbps, -75dBm@54Mbps; 802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz:-70dBm @MCS7 802.11ax 20MHz: -60dBm @MCS11; 802.11ax 40MHz: -58dBm @MCS11 | SSIDs | 32 SSIDs total, 16 per radio (2.4GHz & 5GHz) | Concurrent Clients | 256 | Network Interfaces | 1x 10/100/1000M uplink Ethernet port with PoE/PoE+ 2x 10/100/1000M Ethernet port with PSE 1x 10/100/1000M Ethernet port | Auxiliary Ports | 1x Reset Pinhole, 1x Kensington lock | Mounting | In-wall mountable | LEDs | 1 tri-color LED for device tracking and status indication | Network Protocols | IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM | QoS | 802.11e/WMM, VLAN, TOS | Network Management | Embedded controller can manage up to 50 local GWN APs GDMS (Networking) offers a free cloud management platform for unlimited GWN devices GWN Manager offers premise-based software controller for up to 3,000 GWN APs | Power and Green Energy Efficiency | Support 802.3az PoE 802.3af/ 802.3at; The maximum output of all PSE ports is 12W; Maximum Power Consumption: 25W | Environmental | Operation: 0°C to 45°C Storage: -30°C to 60°C Humidity: 5% to 95% Non-condensing | Physical | Unit Dimension: 135mm(L) x 86mm(W) x 38.5mm(H); Unit Weight: 241g Entire Package Dimension: 176mm(L) x 118.5mm(W) x 65mm(H); Entire Package Weight: 361g | Package Content | GWN7661E Wi-Fi 6 In-Wall Wireless AP, Mounting Kits , Quick Installation Guide | Compliance | FCC, CE, RCM, IC |
|
