GENERAL |
|
Polar Pattern | Omnidirectional |
Selectable Pickup Modes | Omnidirectional/Super-directional/Cardioid/Figure-8 |
Frequency Response | Low Cut Off: 20Hz-20kHz Low Cut On: 100Hz-20kHz |
Microphone Sensitivity | Microphone Capsule: -38±1 dBV@1kHz, 94dB SPL |
Signal-to-Noise Ratio (SNR) | 72dB (A-weighted) |
Maximum Sound Pressure Level (SPL) | 130 dB SPL@10% THD |
Sampling Frequency | 48kHz |
Bit Depth | 32-bit float/24-bit *32-bit float only applies to Transmitter's internal recordings. |
Maximum Input Level (3.5 mm) | -8dBV |
Equivalent Noise | 22dB (A-weighted) |
Monitor Interface Output Power | Max Output Power: 20 mW@1 kHz，32 Ω |
Max Transmission Range | 400m *400 meters is measured when the Transmitter is connected to the Receiver in an open, unobstructed, and interference-free environment. When the Transmitter is connected to Insta360 X5 via Bluetooth in an open, unobstructed, and interference-free environment, the transmission range is about 100 meters, which may be affected by device orientation, camera shooting modes, and other factors. |

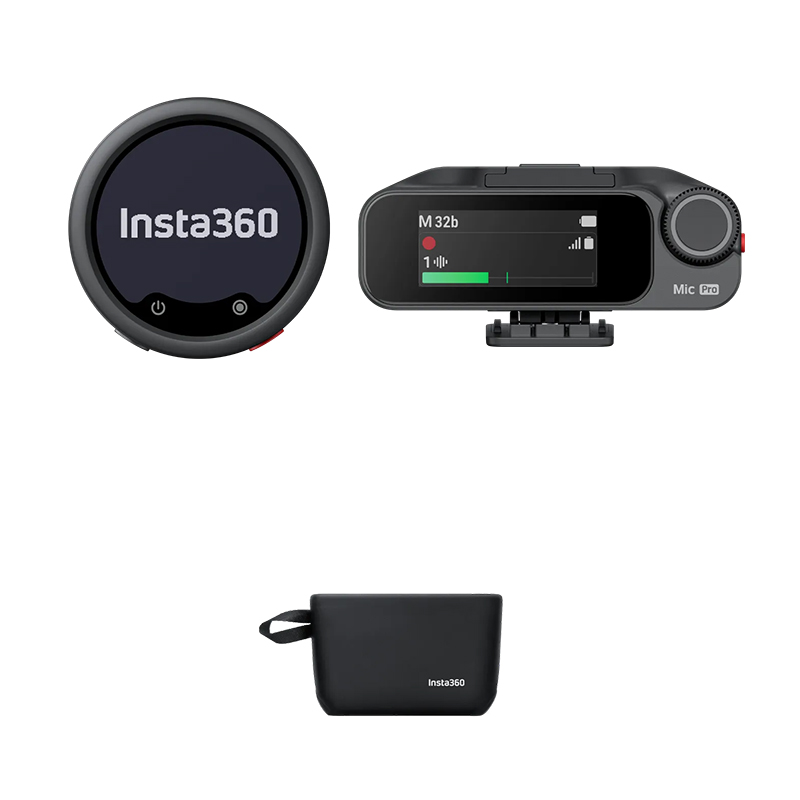

TRANSMITTER |
|
Dimensions | 38 × 12.2mm (Diameter×H) |
Weight | 19.7g (Without Clip) |
Display | 6-Color E-Ink Screen Size: 1.22'' Resolution: 240 × 208 PPI: 197 (Pixels Per Inch) |
Wireless Mode | GFSK 1Mbps and 2Mbps |
Equivalent Isotropic Radiated Power (EIRP) | 2.400-2.4835GHz: ≤ 20dBm (FCC/CE/SRRC/MIC) |
Wireless Mode Operating Frequency | 2.400-2.4835GHz |
Bluetooth Protocol | Bluetooth V5.4 |
Bluetooth Operating Frequency | 2.400-2.4835GHz |
Bluetooth Transmitter Power (EIRP) | BLE: ≤ 20 dBm BR/EDR: ≤ 20 dBm |
Battery Type | Li-ion |
Battery Capacity | 240mAh |
Battery Energy | 0.94Wh |
Battery Voltage | 3.89V |
Charging Specification | Max 5V |
Charging Temperature | 0℃ to 45℃ |
Operating Temperature | -10℃ to 45℃ |
Charging Time | Fully charged in approximately 1 hour, 80% in about 24 minutes. *Tested in a lab environment with a 5V/3A charger. |
5-Minute Fast Charge | A 5-minute charge gives 1.5 hours of use. *Tested in a lab environment with the Transmitter’s battery below 50%, charged with a 5V/3A charger. Noise cancellation and internal recording on Transmitter are off. Close-range recording in an interference-free environment, with the Transmitter connected to the Receiver and the Receiver connected to a camera via a 3.5mm camera audio cable. |
Operating Time | 10 hours *Measured using Insta360 Mic Pro (2 TX + 1 RX), with noise cancellation and internal recording off under interference-free conditions, with both Transmitters connected to the Receiver and Receiver connected to a camera via the 3.5mm camera audio cable. |
Onboard Memory | 32 GB |
Internal Recording Available Duration | 24-bit (Mono Internal Recording): 60 hours 24-bit (Stereo Internal Recording): 29.7 hours 32-bit (Mono Internal Recording): 44.8 hours 32-bit (Stereo Internal Recording): 22.2 hours |
RECEIVER |
|
Dimensions | 55.80×27.65×21.00 mm (L×W×H) |
Weight | 29.8g |
Wireless Mode | GFSK 1Mbps and 2Mbps |
Equivalent Isotropic Radiated Power (EIRP) | 2.400GHz-2.4835GHz: ≤ 20dBm (FCC/CE/SRRC/MIC) |
Operating Frequency | 2.400GHz-2.4835GHz |
Bluetooth Protocol | Bluetooth V5.4 |
Bluetooth Operating Frequency | 2.400GHz-2.4835GHz |
Bluetooth Transmitter Power (EIRP) | BLE: ≤ 20 dBm |
Battery Type | Li-ion |
Battery Capacity | 410mAh |
Battery Energy | 1.60Wh |
Battery Voltage | 3.89V |
Charging Specification | Max 5V |
Charging Temperature | 0℃ to 45℃ |
Operating Temperature | -10℃ to 45℃ |
Charging Time | Fully charged in approximately 75 minutes, 80% in about 27 minutes. *Tested in a lab environment with a 5V/3A charger. |
5-Minute Fast Charge | A 5-minute charge gives 1.5 hours of use. *Tested in a lab environment with the Receiver’s battery below 50%, charged with a 5V/3A charger. Noise cancellation and internal recording on Transmitter are off. Close-range recording in an interference-free environment, with the Transmitter connected to the Receiver and the Receiver connected to a camera via a 3.5mm camera audio cable. |
Operating Time | 11 hours *Measured using Insta360 Mic Pro (2 TX + 1 RX), with noise cancellation and internal recording off under interference-free conditions, with both Transmitters connected to the Receiver and Receiver connected to a camera via the 3.5mm camera audio cable. |
