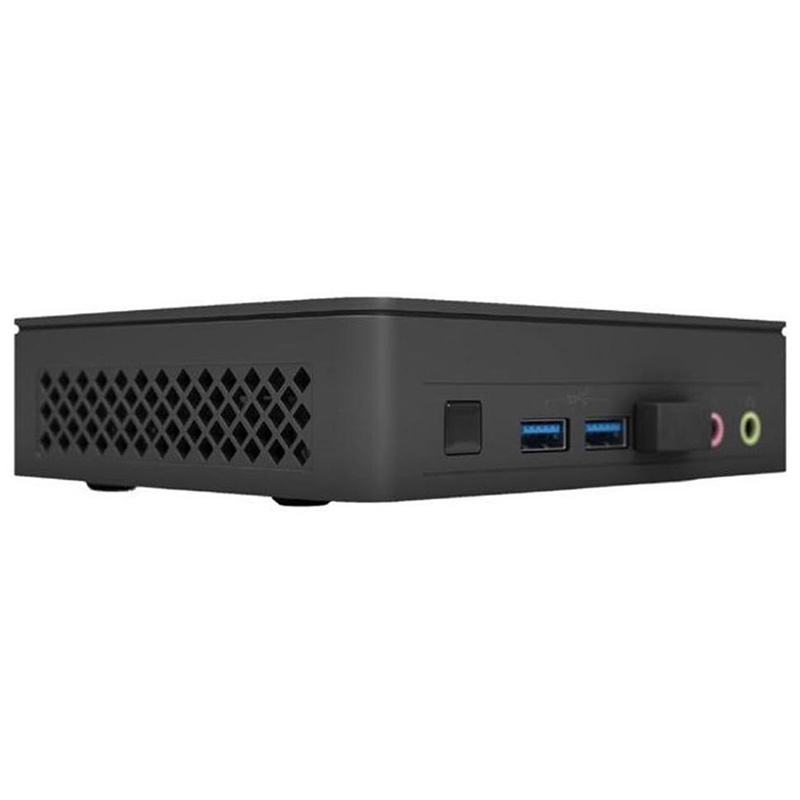

Intel NUC 11 Essential Mini PC Intel Celeron Processor 64GB eMMC 4GB DDR4 W11H no Cord Single Pack

Product Collection

Intel® NUC Mini PC with Intel® Celeron® Processors

Supported Operating Systems

Windows 11* |  Windows 10* |  Linux*

Board Number

NUC11ATBC2

Socket

Soldered-down BGA

Internal Drive Form Factor

M.2 SSD

# of Internal Drives Supported

1

Embedded Storage

64 GB

TDP

10 W

DC Input Voltage Supported

19VDC

Pre-Installed Operating System

Windows 11*

Processor Included

Intel® Celeron® Processor N4505 (4M Cache |  up to 2.90 GHz)

Intel vPro® Platform Eligibility

No

Total Cores

2

Total Threads

2

Processor Base Frequency

2.00 GHz

Lithography

10 nm

SUPPLEMENTAL INFORMATION

Embedded Options Available

No

Description

Other features: 4GB DDR4 SO-DIMM; 64GB eMMC on-board; Windows® 11 Home in S Mode pre-installed.

MEMORY & STORAGE

Included Storage

64GB eMMC

Included Memory

1x 4GB DDR4 RAM

Max Memory Size (dependent on memory type)

32 GB

Memory Types

DDR4-2933 1.2V SO-DIMM

Max # of Memory Channels

2

Max # of DIMMs

2

ECC Memory Supported

No

PROCESSOR GRAPHICS

Integrated Graphics

Yes

Graphics Output

DP++/HDMI

# of Displays Supported

2

EXPANSION OPTIONS

PCI Express Revision

Gen 3

M.2 Card Slot (wireless)

1

M.2 Card Slot (storage)

1

I/O SPECIFICATIONS

# of USB Ports

6

USB Configuration

2x front USB 3.2 Gen 1 and 2x rear USB 3.2 Gen 2; 2x USB 2.0

USB Revision

3.2 Gen 2 / 3.2 Gen 1 / 2.0

Audio (back channel + front channel)

1x 3.5mm stereo out jack |  1x 3.5mm microphone jack

Integrated LAN

10/100/1000

Integrated Wireless

Intel® Wireless-AC 9462 + Bluetooth 5.0

Integrated Bluetooth

Yes

PACKAGE SPECIFICATIONS

Chassis Dimensions

135x115x36mm

ADVANCED TECHNOLOGIES

Intel vPro® Platform Eligibility

No

Intel® HD Audio Technology

Yes

Intel® Platform Trust Technology (Intel® PTT)

Yes

SECURITY & RELIABILITY

Intel® AES New Instructions

Yes
