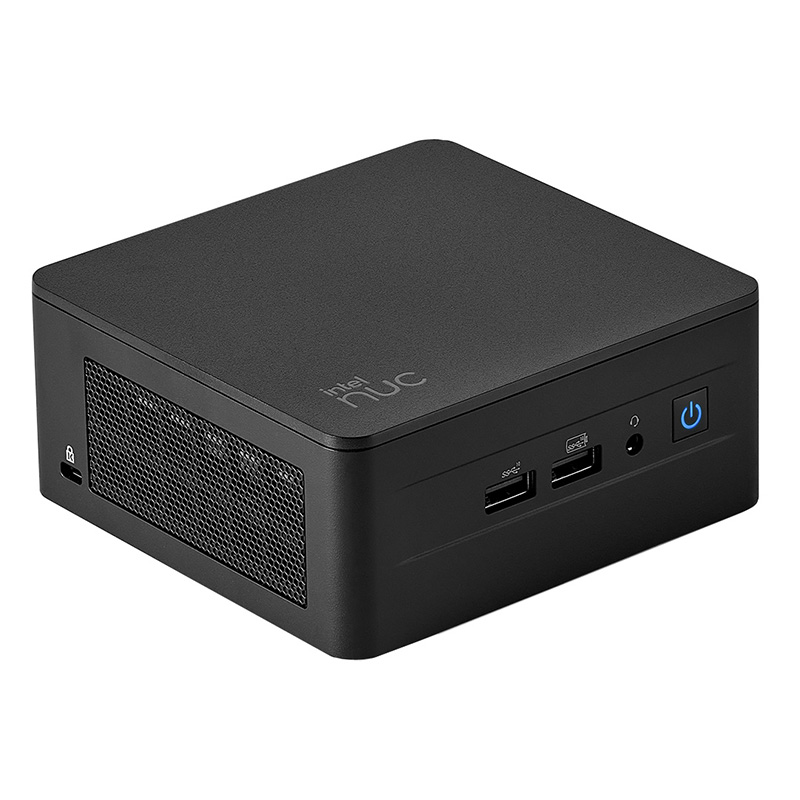

Intel NUC 13 Pro Kit NUC13ANHi5 Barebone - 13th Gen i5

Product Collection

Intel® NUC Kit with 13th Generation Intel® Core™ Processors

Code Name

Products formerly Arena Canyon

Processor Included

Intel® Core™ i5-1340P Processor (12M Cache, up to 4.60 GHz)

Board Number

NUC13ANBi5

Supported Operating Systems

Windows 11 Home*, Windows 11 Pro*, Windows 10 IoT Enterprise*, Red Hat Linux*, Ubuntu*

SUPPLEMENTAL INFORMATION

Included Items

VESA bracket

CPU SPECIFICATIONS

Total Cores

12

Total Threads

16

Max Turbo Frequency

4.60 GHz

MEMORY & STORAGE

Max Memory Size (dependent on memory type)

64 GB

# of Memory Slots

2

Memory Types

DDR4-3200 1.2V SODIMMs

Max # of Memory Channels

2

ECC Memory Supported

No

Internal Drive Form Factor

M.2 and 2.5" Drive

# of Internal Drives Supported

3

M.2 Card Slot (storage)

22x80 NVMe (M); 22x42 SATA (B)

I/O SPECIFICATIONS

Graphics Output

2x HDMI 2.1 TMDS Compatible, 2x DP 1.4a via Type C

# of Displays Supported

4

# of Thunderbolt™ Ports

2x Thunderbolt™ 4

# of USB Ports

4

USB Configuration

Front: 2x USB 3.2

Rear: 2x USB 4 (type C), 1x USB 3.2, 1x USB 2.0

Internal: 1x USB 3.2 on m.2 22x42 (pins), 2x USB 2.0 (headers)

Total # of SATA Ports

1

Serial Port via Internal Header

No

Audio (back channel + front channel)

Front panel: 3.5mm headphone/mic jack

Integrated LAN

Intel® Ethernet Controller i226-V

Wireless Included

Intel® Wi-Fi 6E AX211 (Gig+)

Bluetooth Version

5.3

M.2 Card Slot (wireless)

22x30 (E)

Additional Headers

Front_panel (PWR, RST, 5V, 5Vsby, 3.3Vsby); Internal 2x2 power   connector

EXPANSION OPTIONS

PCI Express Revision

Gen 4 (m.2 22x80 slot); Gen 3 (otherwise)

PCI Express Configurations

PCIe x4 Gen 4: M.2 22x80 (key M)

PCIe x1 Gen 3: M.2 22x42 (key B)

PCIe x1: M.2 22x30 (key E)

PACKAGE SPECIFICATIONS

DC Input Voltage Supported

12-20 VDC

Chassis Dimensions

117 x 112 x 54 [mm] (LxWxH)

Board Form Factor

UCFF (4" x 4")

ADVANCED TECHNOLOGIES

Intel® HD Audio Technology

Yes

Intel® Optane™ Memory Supported

No

Intel® Virtualization Technology for Directed I/O (VT-d)

Yes

Intel® Virtualization Technology (VT-x)

Yes

SECURITY & RELIABILITY

Intel® Platform Trust Technology (Intel® PTT)

Yes

Intel® ME Firmware Version

16.1

Intel® AES New Instructions

Yes
