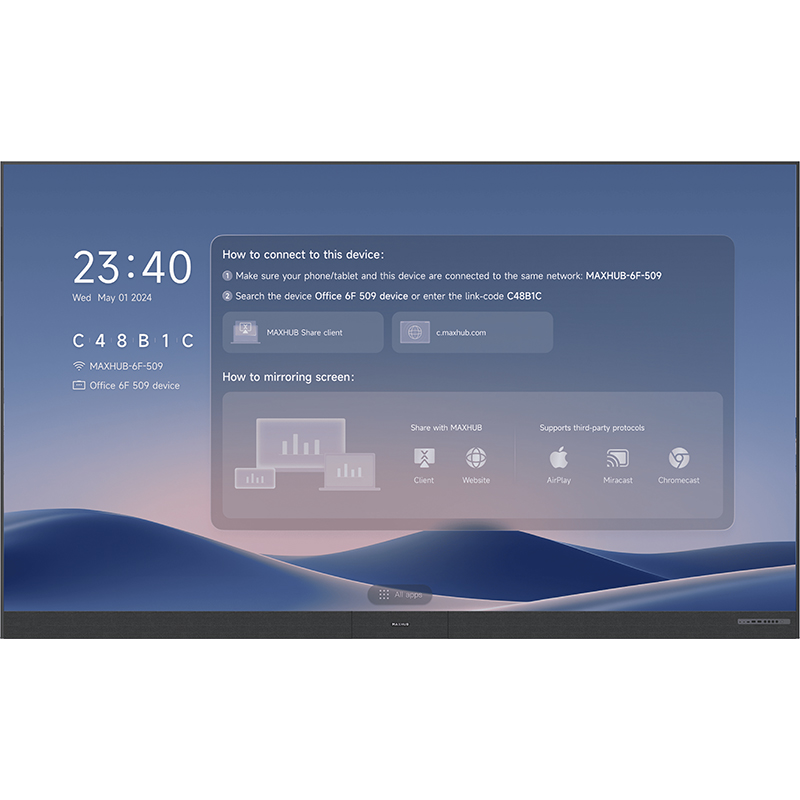

Maxhub Raptor V3 138in FHD A76+A55 64GB SSD 8GB RAM Android OS All-in-One Interactive Display (LX138V07)

Size

138 inch

Aspect Ratio

16:9

Pixel Pitch

1.5 mm

Resolution

1920×1080mm

Overall Size (L×H)

3080×1840mm

Display Area (L×H)

3050×1715mm

Screen Thickness

28mm

Net Weight

122kg( wall-mounting bar and stand not included)

Recommended Viewing Distance

≥3.2m

Maintenance Mode

Front Access

Installation Mode

Mobile stand, Stand, Wall-mounting

I/O Ports

2 x HDMI IN (HDMI2.0 *1, HDMI1.4 *3)

1 x HDMI OUT

1 x POE

1 x USB 2.0

2 x USB 3.0

1 x Type C

2 x 3.5 Audio Output

1 x 3.5 Audio Input

1 x RJ45 (RS232 Protocol)

1 x USB Out

2 x LAN

* USB Out is recommended for scenarios where the computer serves as the input source. By connecting directly to the computer via USB Out, it enables functionalities such as reading USB data.

OPTICAL PARAMETER

Brightness

100~600cd/㎡(Adjustable)

Refresh Rate

3840Hz

Gray Scale

13~16bit

Contrast

6500:1

Color Temperature

2300~9300K(Adjustable)

LED Lifespan

 ≥100,000hrs

ELECTRICAL PARAMETER

Operation Voltage

100~240VAC 50/60Hz

Standby Power

≤0.5W

Average Power Consumption of Overall Unit

0.447KW

Maximum Power Consumption of Overall Unit

1.491KW

SYSTEM PARAMETER

Operating System

Android 13.0

CPU

Four Cortex-A76+ four Cortex-A55, frequency 2.4GHz

RAM

8GB

Storage

64GB

Media Format

Support mainstream video format such as

MPEG-1,MPEG-2, MPEG-4,H.263, H.264, H.265, VC-1, VP9, VP8, MVC, AV1;

Support audio formats such as MP3;

Support JPG, JPEG, BMP, PNG, GIF and other image format.

ENVIRONMENTAL PARAMETER

Operation Temperature

-10℃~40℃

Operation Humidity

10%~80%RH No condensation
