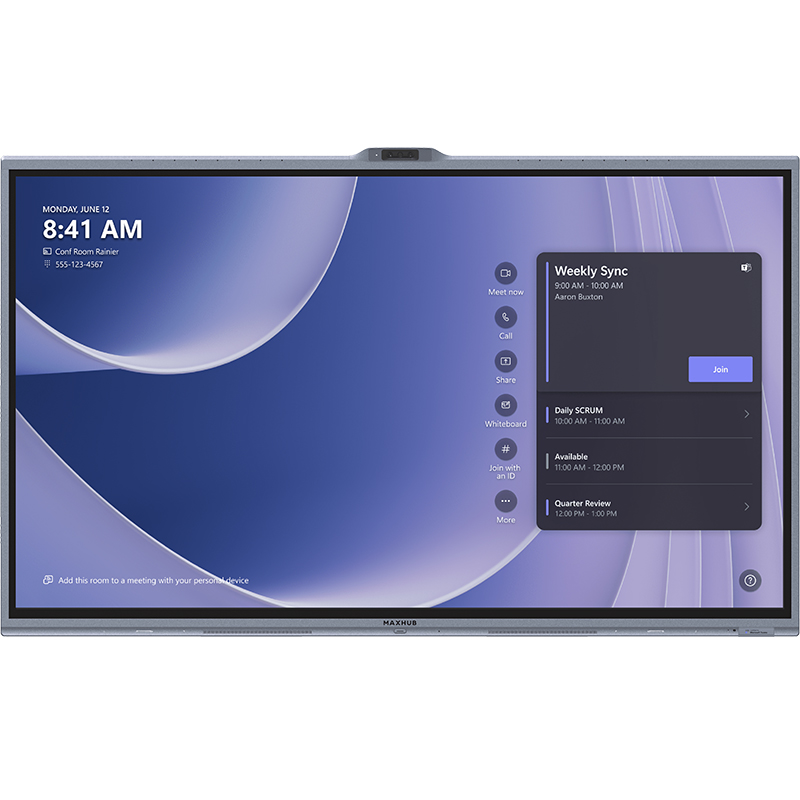

Maxhub XBoard V7 65in 4K UHD VA i5-1240P 256GB SSD 16GB RAM W11IoT Microsoft Teams Rooms Interactive Touch Display (V655T)

Screen Size (Inch)

65

Aspect Ratio

16:9

Panel

VA

Backlight

DLED

Glass

Zero parallax

3 mm thickness

9H Tempered

Surface Technology

25% haze; Non-glare technology

Resolution

3840x2160

Refresh Rate

60 Hz

Viewing Angle (HxV)

178"/178°

Color Gamut

90% NTSC

Display Orientation

Landscape

Response Time

8 ms

Life Time

>50,000 hours

Operation Hours (Hour / Day)

16 / 7

Display Color

1.07 B (10 bit)

Color Accuracy

Delta E ≤ 1.5

Sensor

Ambient light sensor; Motion sensor

CONNECTIVITY

I/O Ports (lnteractive Display)

HDMI In (2.0) x 2

To Connect an external source (disabled as default)

USB-A 2.0 x 1

To pair with wireless dongle -WTl3M/WT13S
To connect keyboards or mouse, etc.

Audio In x 1

To connect an external audio source to make XBoard a speaker

Audio Out x 1

3.5 mm mini-jack, to connect an external speaker system

RS232 x1

9 pin

Mic In (RJ45) x 1

To Connect up to a maximum of three UC BM45 as expansion speakerphones

Wireless Access Point

Yes (for wireless presentation )

CAMERA

Wide Camera

50MPx1
HFOV 86°

Telephoto Camera

50MP x 2
HFOV (combined) 72°

Zoom

Hybrid 5x

Al Features

Auto framing
Speaker tracking
Multiple-speaker tracking
Intelligent focus

AUDIO

Sound Channel

2.1

Speaker Power

2x10W+20W

MICROPHONE

Quantity

16-mic array

Pick-up Angle

180°

Pick-up Range

Best distance-8m / 26.2ft
Maximum distance 15m / 49.2ft

Feature

Intelligent audio fence
Al spatial sound
AEC (Auto echo cancellation)
ANC (Al noise cancellation)
AGC (Auto gain control)

TOUCH SYSTEM

Touch Technology

Intelligent Touchscreen Technology (infrared recognition)

Touch Point

50 points touch

Object Recognition Range

≥1.5 mm (0.06 inch)

Accuracy

±0.5 mm(0.02 inch)

Response Time

≤2.5 ms

Writing Height

≤ 1 mm (0.04 inch)

PC MODULE (SLOT-IN)

CPU

12th gen Intel Core i5-1240p

GPU

Intel® Iris® Xe Graphics eligible

Memory

16GB DDR4 (8GB x2)

Storage

256GB SSD(M.2)

Operating System

Windows 11 lOT

TPM 2.0

Yes

Inputs & Outputs

USB-A 3.0 x3
HDMlIn (2.0)x1*
(Content share in Teams Rooms mode)
HDMI Outx2
(For future use, do not support a 2nd display in teams room mode currently)
RJ45 x1(Ethernet)
RJ45x1
(For optional touch console -TCP30T)

Wi-Fi

Wi-Fi 6

Bluetooth

Bluetooth 5.1
