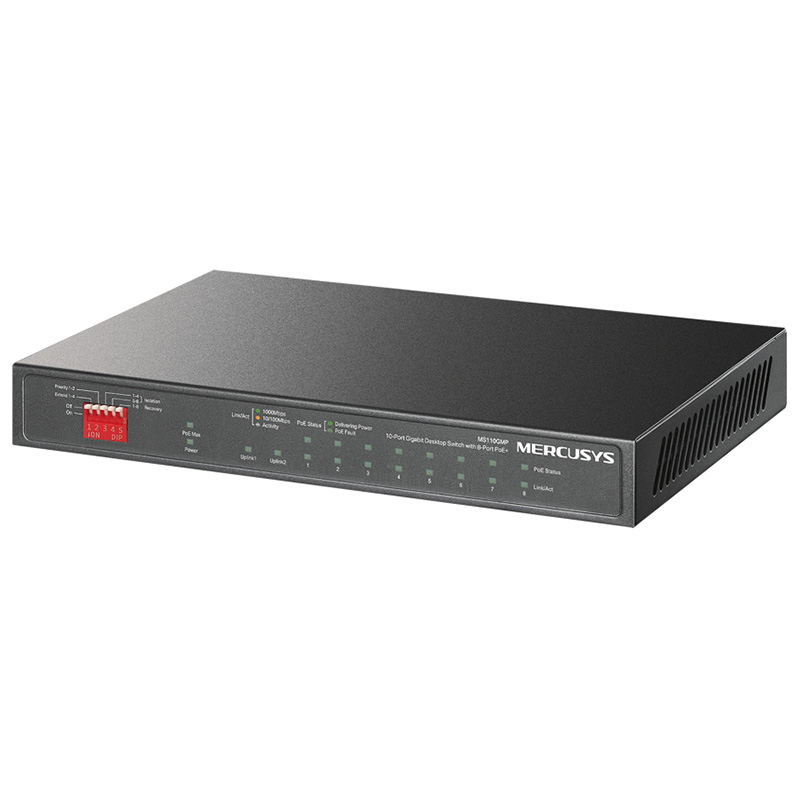

Mercusys 10-Port Gigabit Desktop Switch with 8-Port PoE+ (MS110GMP)

Transfer Method

Store-And-Forward

Advanced Features

• Compatible With IEEE 802.3af/at Compliant PDs

• Extend Mode Button (Ports 1–4, Up to 250 m PoE power supply and data transmission)

• Priority Mode Button (Ports 1–2)

• Isolation Mode Button (Ports 1–4 / 5-8)

• PoE Auto Recovery (Ports 1-8)

• Mac Address Auto-Learning and Auto-Aging

• IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode

HARDWARE

Dimensions (W X D X H)

8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm)

PoE Ports

RJ45 Ports

• Standard: 802.3 af/at compliant

• PoE Ports: Ports 1–8

• Power Supply: 111 W

Interfaces

• 8× 10/100/1000 Mbps PoE+ Ports

• 2× 1000 Mbps RJ45 Ports

• AUTO Negotiation

• AUTO MDI/MDIX

Network Media

• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

• EIA/TIA-568 100Ω STP (maximum 100m)

• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)

• EIA/TIA-568 100Ω STP (maximum 100m)

• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)

• EIA/TIA-568 100Ω STP (maximum 100m)

External Power Supply

External Power Adapter (Output: 53.5VDC / 2.43A)

Fan Quantity

Fanless

Physical Security Lock

Yes

Jumbo Frame

16 KB

Switching Capacity

20 Gbps

Mac Address Table

4K

Max Power Consumption

• 7.93 W (220V / 50Hz with no PD connected)

• 141.40 W (220V / 50Hz with 123 W PD connected)

Max Heat Dissipation

• 27.04 BTU/h (220V / 50Hz with no PD connected)

• 482.17 BTU/h (220V / 50Hz with 123 W PD connected)

PERFORMANCE

Packet Forwarding Rate

14.88 Mpps

OTHERS

Certifications

FCC, CE, RoHS

Package Contents

• MS110GMP

• Power Adapter

• Installation Guide

Environment

• Operating Temperature: 0–40 ℃ (32–104 ℉)

• Storage Temperature: -40–70 ℃ (-40–158 ℉)

• Operating Humidity: 10–90% RH non-condensing

• Storage Humidity: 5–90% RH non-condensing

Notes

*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.

**The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.
