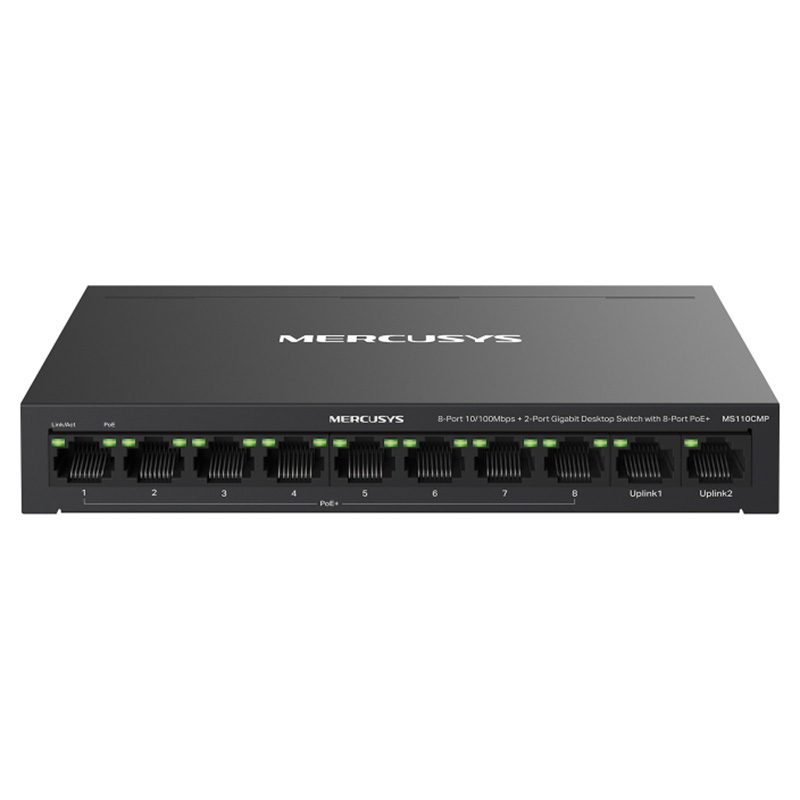

Mercusys 8-Port 10/100 Mbps + 2-Port Gigabit Desktop Switch with 8-Port PoE+ The MS110CMP is a 8-Port 10/100 Mbps + 2-Port Gigabit Desktop Switch with 8-Port PoE+, ideal for small and medium business IP surveillance with a 115 W PoE budget. The plug-and-play design makes it for easy deployment without the need for a technician.
Two Cables in One: With 8 PoE+ ports, transfers data and power on one single cable
High Power PoE+: Support PoE Power up to 30 W for each PoE port and 115 W for all PoE ports*
2× Uplink Ports: MS110CMP provides 2× uplink ports when turning on the isolation mode. One for connecting to the Internet and one for connecting to the NVR.
Long-Range up to 250 m: Increases PoE transmission distance to 250 m by Extend Mode**
Isolation Mode: One click to divide traffic for specific ports for stability and security
Compliant with Powered Devices: Works with IEEE 802.3af/at compliant PDs
Plug and Play: Simple to use and saves time and effort
PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices
Durable Metal Casing: Allows for efficient heat dissipation and long network life
SPECIFICATIONS:
HARDWARE
Dimensions (W X D X H)
6.7 × 3.9 × 1.1 in (171 × 98 × 27 mm)
PoE Ports
RJ45
Standard: Compliant with 802.3 af/at Powered Devices
PoE Ports: Port 1- Port 8
Interfaces
10× 10/100 Mbps Ports, Auto-Negotiation, Auto MDI/MDIX
External Power Supply
External Power Adapter (Output: 53.5V/1.31A)
Installation
Desktop / Wall Mount
Standards and Protocols
IEEE 802.3x Flow Control
Data Rates
10/100 Mbps at Half Duplex
20/200 Mbps at Full Duplex
Jumbo Frame
2 KB
Mac Address Table
2K
Max Power Consumption
10.064 BTH/h（no PD connected)
263.568 BTH/h（with 65W PD connected）
OTHERS
Package Contents
• 10-Port 10/100Mbps Desktop Switch with 8-Port PoE+ (MS110CMP)
• Power Adapter
• Quick Installation Guide
Environment
Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% RH non-condensing
Storage Humidity: 5%~95% RH non-condensing
Notes
*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.
**The speed of the ports which are under extend mode will be downgraded to 10 Mbps. Actual transmission distance may vary from the quality of the cables.
